Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Factory Series, 34 SC Fit 4 Remote, 120mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1299 Eagle 10-52
Crank
SRAM XX1 Eagle DUB Wide spindle, 30t Alloy RingS/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Wheels
Rims
Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis Recon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
Shimano XTR M9100 2 piston
Cockpit
Stem
Enve Mtn Stem 31.8mmS/M: 35mm, L/XL: 50mm
Handlebar
Enve M6 Bar 780mm
Grips
Lizard Skin Charger Evo
Headset
IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.26 mm | 1.21 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 694 mm | 724 mm | 768 mm | 819 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 599 mm | 613 mm | 637 mm |
| Reach | 420 mm | 446 mm | 485 mm | 526 mm |
| Top Tube Length | 591 mm | 620 mm | 651 mm | 682 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 74.8 ° | 75.9 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1135 mm | 1165 mm | 1209 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 729 mm | 734 mm | 755 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

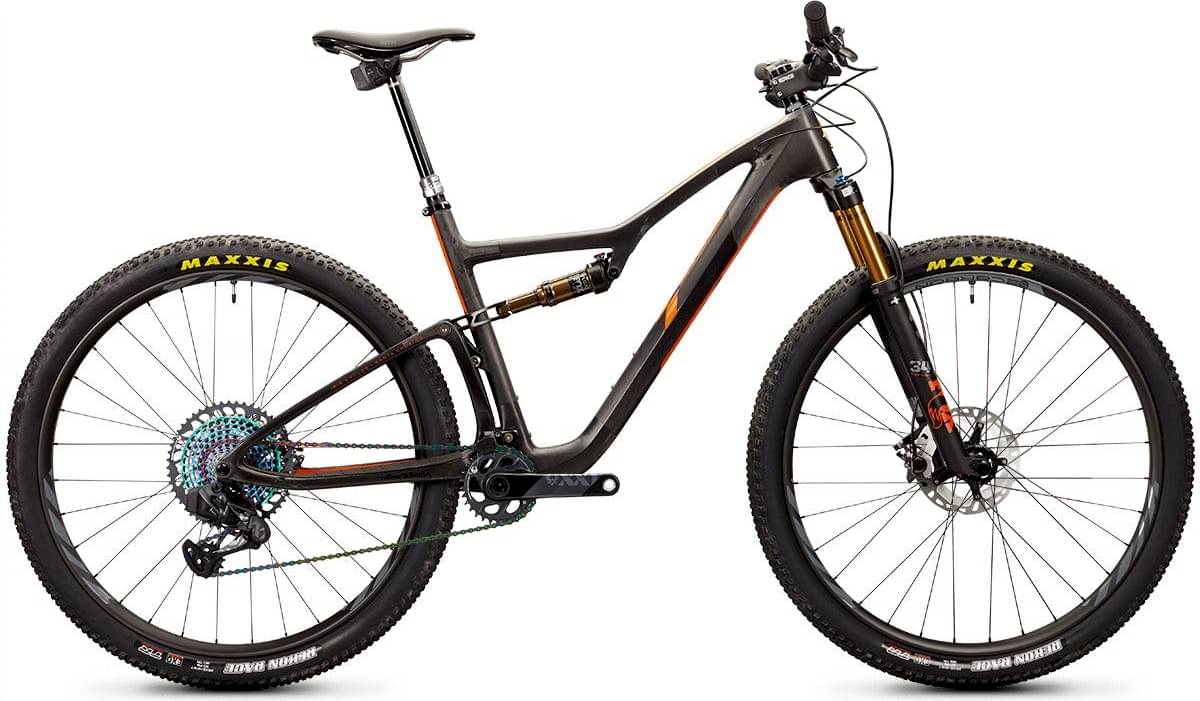

Exie USA XX1 AXS is an Ibis Exie model. Ibis launched 17 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ibis Exie GX 2023 is the most affordable bike of this model and has a price of 4999$. On the other hand, Ibis Exie USA XX1 AXS 2023, is the most expensive and costs 12799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 12799$. Comparing the average cost of a Crosscountry bike to this one, you will see that Exie USA XX1 AXS price is 571.86% higher.
Exie USA XX1 AXS components
Fork
The Exie USA XX1 AXS comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Exie USA XX1 AXS has a rear shock with a travel of 100mm. The model Fox Float DPS Remote w/ adjust is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Exie USA XX1 AXS model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exie USA XX1 AXS comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Ibis Exie USA XX1 AXS comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
