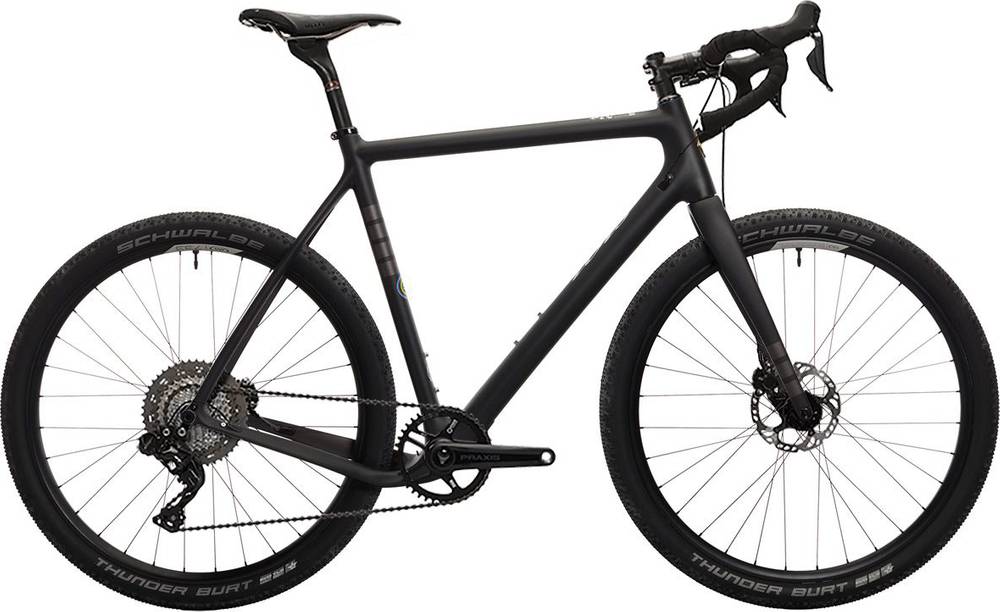

Ibis Hakka MX Frame + Fork 2019
2019 Road
Estimate price |
1,999$
Weight | 1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c / 650b -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon fiber monocoque
Suspension Fork
ENVE G Series Carbon Fiber Gravel Fork: Flat Mount, Fender Eyelets, Internal Routing, Through Axle
Drivetrain
Bottom Bracket
T47 Threaded Bottom Bracket
Brakes
Brakes
Flat-mount front disc, 160mm rotor (some images show post mount)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 49cm | 53cm | 53cm | 55cm | 55cm | 58cm | 58cm | 61cm | 61cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.5 mm | 1.5 mm | 1.51 mm | 1.51 mm | 1.53 mm | 1.53 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | mm | 279 mm | mm | 279 mm | mm | 279 mm | mm | 279 mm | mm |
| Front Center | 587 mm | 587 mm | 591 mm | 591 mm | 601 mm | 601 mm | 617 mm | 617 mm | 637 mm | 637 mm |
| Rake | 46 mm | 46 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 68 mm | 67 mm | 61 mm | 64 mm | 58 mm | 64 mm | 58 mm | 64 mm | 58 mm |
| Stack | 536 mm | 536 mm | 564 mm | 564 mm | 584 mm | 584 mm | 603 mm | 603 mm | 620 mm | 620 mm |
| Reach | 374 mm | 374 mm | 377 mm | 377 mm | 386 mm | 386 mm | 395 mm | 395 mm | 410 mm | 410 mm |
| Top Tube Length | 524 mm | 524 mm | 544 mm | 544 mm | 554 mm | 554 mm | 574 mm | 574 mm | 594 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 455 mm | 455 mm | 525 mm | 525 mm | 550 mm | 550 mm | 575 mm | 575 mm | 605 mm | 605 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 110 mm | 135 mm | 135 mm | 155 mm | 155 mm | 175 mm | 175 mm | 195 mm | 195 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1011 mm | 1011 mm | 1015 mm | 1015 mm | 1025 mm | 1025 mm | 1041 mm | 1041 mm | 1061 mm | 1061 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 733 mm | 733 mm | 789 mm | 789 mm | 806 mm | 806 mm | 831 mm | 831 mm | 857 mm | 857 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
Model Overview
Hakka MX Frame + Fork is an Ibis Hakka model. Ibis launched 17 frames of this model so far. Take a sneak peek at all Ibis Hakka frames models from 2019, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, you could also get a good Gravel frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2019 and its price was 1999$. Comparing this to the average Gravel frame price, we see that the price is 32.82% more expensive.
Average weight for Gravel frames
Gravel frames have an average weight of 2.06 kg (4.54 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Hakka MX Frame + Fork weighs 1 kg (2.2 lbs) and is much lighter than the average. In conclusion, the average Gravel frame weighs 106% more than Hakka MX Frame + Fork.
Hakka MX Frame + Fork components
Fork material
Hakka MX Frame + Fork has a carbon fork, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Hakka MX Frame + Fork is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
