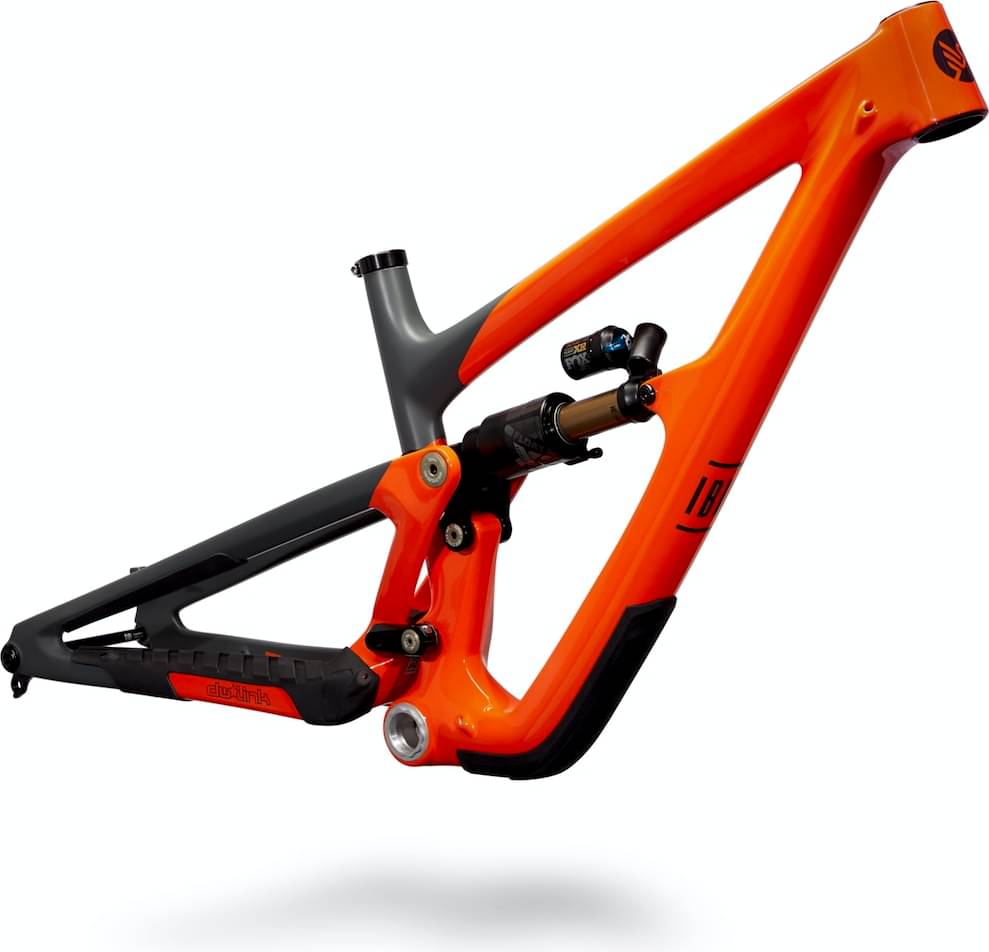

Ibis HD6 Frameset 2023
2023 Mountain
Estimate price |
3,899$
Weight | 3.5 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 165mm -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front and rear triangle
Rear Shock
Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Drivetrain
Crank
30T - 34T
Bottom Bracket
Threaded (73mm BSA)
Chain Guide
MRP AMg SE
Brakes
Brakes
180mm Post mount / 220mm max rotor
Cockpit
Headset
ZS44 upper / ZS56 lower
Seat
Seatpost
34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.377 mm | 1.313 mm | 1.256 mm | 1.203 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 769 mm | 795 mm | 823 mm | 855 mm | 895 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 621 mm | 625 mm | 630 mm | 638 mm | 651 mm |
| Reach | 430 mm | 454 mm | 480 mm | 508 mm | 541 mm |
| Top Tube Length | 585 mm | 610 mm | 630 mm | 655 mm | 685 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76.5 ° | 77 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 406 mm | 450 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 81 mm | 86 mm | 91 mm | 100 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1202 mm | 1228 mm | 1256 mm | 1288 mm | 1328 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 735 mm | 752 mm | 765 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
HD6 Frameset is part of the Ibis Hd6 model. Ibis released 6 frames variations of this model so far. You can easily view all of the Ibis Hd6 frames models from 2023, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2023 and its price was 3899$. Comparing this to the average Enduro frame price, we see that the price is 105.75% more expensive.
Enduro frames average weight
If we make a quick analysis of the average weight of an Enduro frame, we get 3.44 kg (7.58 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Ibis HD6 Frameset it’s weighing 3.5 kg (7.72 lbs). At this weight, is slightly heavier than average. In other words, this model is 1.74% heavier than the average Enduro frame.
HD6 Frameset components
Rear Shock
From the factory, it comes with the Fox Float X2 Factory Series with EVOL rear shock model, which has a travel of 165mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Brakes
When you want to stop the bike in time, the brakes are vital. The HD6 Frameset has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
