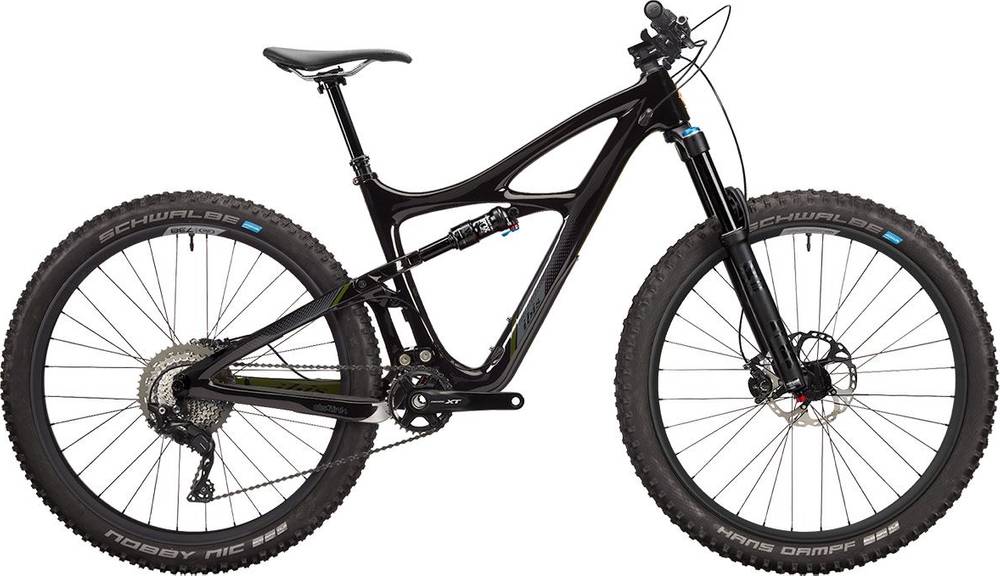

Ibis Mojo 3 Frameset 2019
2019 Mountain
Estimate price |
2,833$
Weight | 2.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 130mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Rear Shock
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Bottom Bracket
Threaded (68mm English threaded)
Brakes
Brakes
160mm post mount (203mm max rotor)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 73.8 ° | 73.7 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 66.8 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo 3 Frameset belongs to the Ibis Mojo model. Ibis launched 76 frames of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Ibis Mojo 3 Frameset 2019 is the cheapest frame model and costs 2833$. Ibis Mojo HD4 Frameset 2019 is the most expensive one and costs 2999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail frames
According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Ibis released this model in 2019, its price was 2833$. Comparing this to the average Trail frame price, we see that the price is 63.19% higher.
Average weight for Trail frames
If we make a quick analysis of the average weight of a Trail frame, we get 2.93 kg (6.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Mojo 3 Frameset has a weight of 2.54 kg (5.6 lbs). In conclusion, the average Trail frame weighs 15.35% more than Mojo 3 Frameset.
Overview of components
Rear Shock
The Mojo 3 Frameset has a rear shock with a travel of 130mm. The model Fox Float Performance Series is the one installed in this frame. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis Mojo 3 Frameset has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Mojo 3 Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
