Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Performance Series 140mm, 27.5”, 15QR
Rear Shock
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Rear Derailleur
Shimano SLX M7100 Shadow Plus 12 speed
Shift Levers
Shimano SLX M7100 12 speed
Cassette
Shimano SLX 10-51t 12 speed
Crank
Shimano SLX M7100, 24mm spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Bottom Bracket
Threaded (68mm English threaded)
Chain
Shimano SLX M7100
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
Brakes
Brakes
Shimano SLX M7100 2p
Disk Rotors
Shimano SM-RT66 180
Cockpit
Stem
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Pro 142mm width
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm). Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

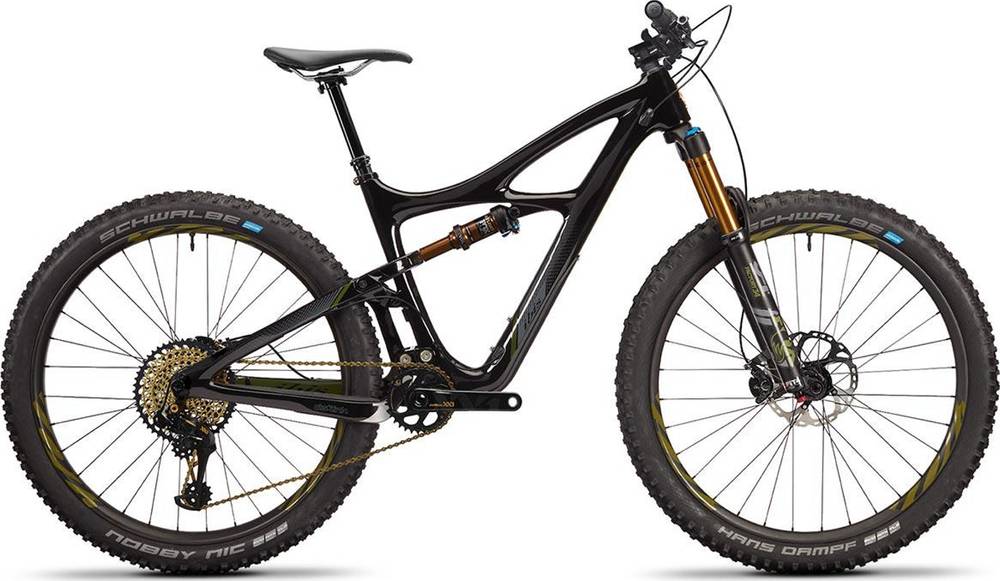

Mojo 3 SLX is part of the Ibis Mojo model. Ibis launched 76 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Ibis Mojo 3 NX 2020 is the most affordable bike of this model and has a price of 4199$. On the other hand, Ibis Mojo XX1 AXS 2020, is the most expensive and costs 10699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Ibis released this model in 2020, its price was 5099$. In conclusion, this bike price is 84.61% higher than the price of the average Trail bike.
Mojo 3 SLX components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Performance Series, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Mojo 3 SLX model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mojo 3 SLX comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Ibis Mojo 3 SLX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ibis model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
