Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Performance Series 140mm, 27.5”, 15QR
Rear Shock
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM X01 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1295 EAGLE 10-50T
Crank
SRAM X01 Eagle, DUB spindle, 32t Alloy Ring (170mm or 175mm)
Bottom Bracket
Threaded (68mm English threaded)
Chain
SRAM X01 EAGLE Powerlock 12 speed chain
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
Brakes
Brakes
Shimano XT M8000 2 piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Handlebar
Ibis 800mm Carbon (30mm rise)
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Pro 142mm width
Seatpost
SRAM Reverb AXS Dropper (125, 150 or 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

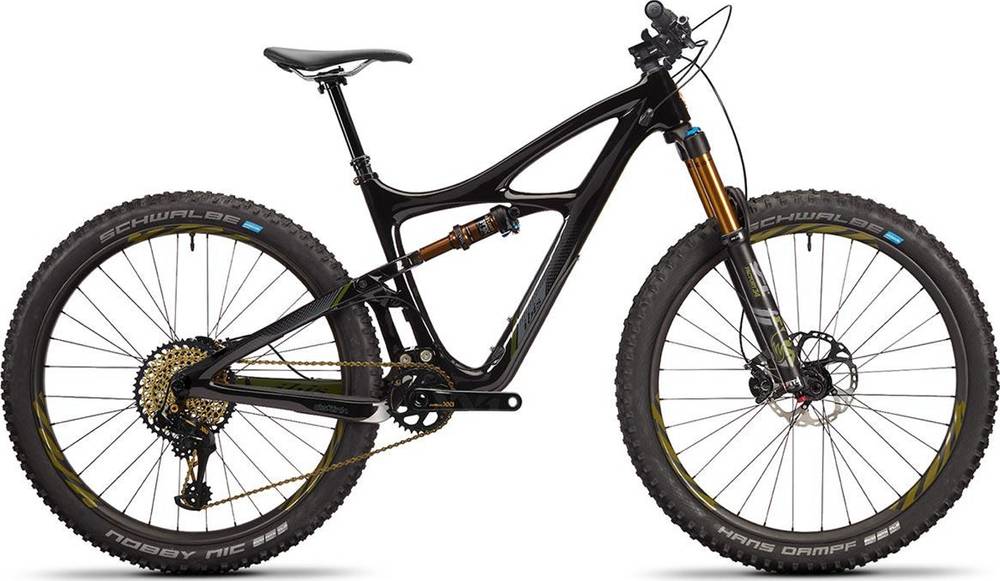

Mojo 3 X01 AXS completes the Ibis Mojo model. Ibis launched 76 bikes of this model so far. Take a sneak peek at all Ibis Mojo bikes models from 2020, by clicking here.
Model range prices
Ibis Mojo 3 NX 2020 is the most economical model, with a starting price of 4199$. Ibis Mojo XX1 AXS 2020 on the other hand costs 10699$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Ibis released this model in 2020, its price was 8199$. Comparing this to the average Trail bike price, we see that the price is 196.85% higher.
Overview of components
Fork
This bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float Performance Series model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Mojo 3 X01 AXS bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
