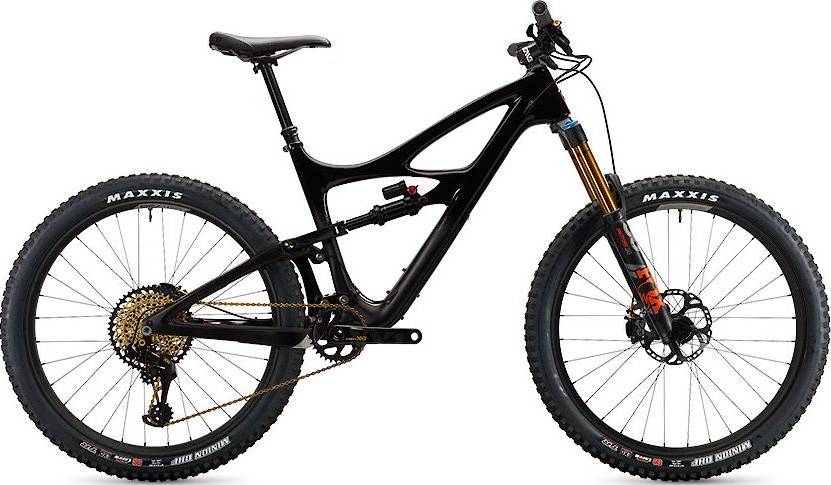

Ibis Mojo HD4 SRAM XX1 Eagle 2018
2018 Mountain
Estimate price |
9,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 153mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float Factory 36 RC2
Rear Shock
FOX Float DPX2 EVOL, 7.875" x 2.25"
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, trigger, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle, carbon, 175mm length with 170mm option
Bottom Bracket
Threaded 68mm
Chain
SRAM XX1 Eagle with PowerLock
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine Torch
Rear Hub
Industry Nine Torch
Rims
Ibis 742 Ultra Wide Carbon Fiber Asymmetric
Spokes
Sapim CX-Ray
Tires
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
Brakes
Brakes
Shimano Saint M820 with 180mm front/160mm rear rotors
Brake Levers
Shimano Saint M820
Cockpit
Stem
Enve Mountain, carbon with 40mm, 55mm, 70mm length options, +/- 6° rise
Handlebar
Enve Carbon DH, 800mm width, 23mm rise, 9º sweep, 5º tip
Grips
Lizard Skins Logo
Headset
Cane Creek 40, ZS44/ZS56
Seat
Saddle
WTB Volt, titanium rails
Seatpost
KS LEV Carbon, choice of 175mm, 150mm, 125mm, 100mm, 65mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 566 mm | 586 mm | 601 mm | 616 mm |
| Reach | 411 mm | 431 mm | 451 mm | 476 mm |
| Top Tube Length | 575 mm | 600 mm | 624 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 362 mm | 393 mm | 445 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 87 mm | 109 mm | 126 mm | 142 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1159 mm | 1188 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 689 mm | 711 mm | 725 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mojo HD4 SRAM XX1 Eagle is an Ibis Mojo model. 76 bikes variations carry this model name so far. You can easily view all of the Ibis Mojo bikes models from 2018, here.
Model range prices
Ibis Mojo 3 NX 2018 is the most affordable bike of this model and has a price of 5856$. On the other hand, Ibis Mojo HD4 SRAM XX1 Eagle 2018, is the most expensive and costs 9699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 9699$. Comparing the average cost of an Enduro bike to this one, you will see that Mojo HD4 SRAM XX1 Eagle price is 169.49% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Ibis Mojo HD4 SRAM XX1 Eagle bike has the FOX Float DPX2 EVOL model installed, and has a travel of 153mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Mojo HD4 SRAM XX1 Eagle are the 27.5″ carbon type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis Mojo HD4 SRAM XX1 Eagle has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Mojo HD4 SRAM XX1 Eagle. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
