Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 153mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 36 Performance Series 170mm, 27.5”, 110x15
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 7.875 x 2.25
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM X01 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1295 EAGLE 10-50T
Crank
SRAM X01 Eagle, DUB spindle, 32t Alloy Ring (170mm or 175mm)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 EAGLE Powerlock 12 speed chain
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"
Brakes
Brakes
Shimano XT M8120 4p
Disk Rotors
Shimano SM-RT86 200/180
Cockpit
Stem
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Handlebar
Ibis 800mm Carbon (30mm rise)
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Pro 142mm width
Seatpost
SRAM Reverb AXS Dropper (125, 150 or 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 754 mm | 781 mm | 813 mm | 850 mm |
| Rake | 39 mm | 38 mm | 38 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 602 mm | 618 mm | 633 mm | 647 mm |
| Reach | 434 mm | 454 mm | 479 mm | 510 mm |
| Top Tube Length | 589 mm | 613 mm | 642 mm | 676 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 356 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1191 mm | 1218 mm | 1250 mm | 1287 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 703 mm | 717 mm | 738 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

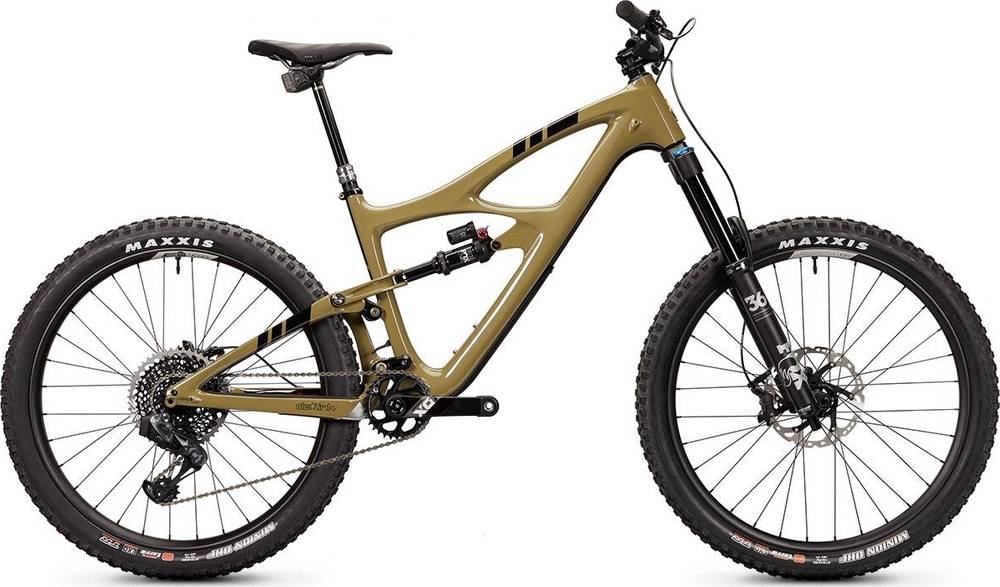

Model Overview
Mojo HD5 X01 AXS is part of the Ibis Mojo model. Ibis launched 76 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ibis Mojo 3 NX 2020 has a starting price of 4199$. Ibis Mojo XX1 AXS 2020 on the other hand is the most expensive at 10699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Ibis released this model in 2020, its price was 8299$. In conclusion, this bike price is 130.59% higher than the price of the average Enduro bike.
Overview of components
Fork
This bike has the Fox Performance Float 36 fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Mojo HD5 X01 AXS has a rear shock with a travel of 153mm. The model Fox Float Performance Series is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Ibis Mojo HD5 X01 AXS 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Mojo HD5 X01 AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Ibis model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
