Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 153mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 36 Grip 2 Factory Series 170mm, 27.5”, 110x15
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 7.875 x 2.25
Drivetrain
Rear Derailleur
Shimano XTR M9100 12 Spd
Shift Levers
Shimano XTR M9100 12 Spd
Cassette
Shimano XTR M9100 12 Spd 10-51T
Crank
Race Face Next R, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Bottom Bracket
Threaded (73mm English threaded)
Chain
Shimano XTR M9100 12 Spd
Wheels
Rims
Ibis S35 Carbon Rims / 27.5" / Industry 9 Hydra Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"
Brakes
Brakes
Shimano XTR M9120 4 piston
Disk Rotors
Shimano RT-MT900 180
Cockpit
Stem
Enve Mtn Stem 31.8mm (40, 55, 70mm)
Handlebar
Enve M6 Bar 780mm
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
WTB Silverado Team 142mm width
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm). Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 754 mm | 781 mm | 813 mm | 850 mm |
| Rake | 39 mm | 38 mm | 38 mm | 37 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 602 mm | 618 mm | 633 mm | 647 mm |
| Reach | 434 mm | 454 mm | 479 mm | 510 mm |
| Top Tube Length | 589 mm | 613 mm | 642 mm | 676 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 356 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1191 mm | 1218 mm | 1250 mm | 1287 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 703 mm | 717 mm | 738 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

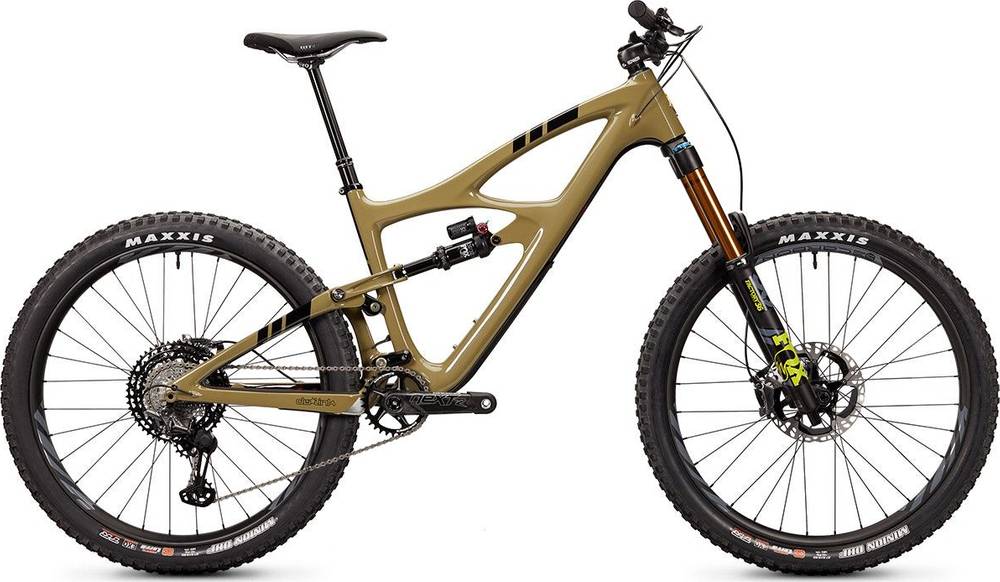

Mojo HD5 XTR is part of the Ibis Mojo model. Ibis launched 76 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Ibis Mojo 3 NX 2020 has a starting price of 4199$. Ibis Mojo XX1 AXS 2020 on the other hand is the most expensive at 10699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ibis released this model in 2020, its price was 9299$. Comparing the average cost of an Enduro bike to this one, you will see that Mojo HD5 XTR price is 158.38% higher.
Mojo HD5 XTR components
Fork
The Mojo HD5 XTR comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Ibis Mojo HD5 XTR bike has the Fox Float Performance Series model installed, and has a travel of 153mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Ibis Mojo HD5 XTR 2020, has a 27.5″ carbon model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
