Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 153mm -
Fork DVO Onyx SC
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
DVO Onyx D1 | 15QRx110 - 170 (27.5")
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 7.875 x 2.25
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1299 Eagle 10-52
Crank
SRAM XX1 Eagle 170 or 175mm, DUB spindle, 32t Alloy Ring
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Wheels
Rims
Ibis S35 Carbon Rims / 27.5" / Industry 9 Hydra Hubs
Tires
Maxxis Assegai EXO + WT 27.5" x 2.5"
Brakes
Brakes
Shimano XTR M9100 4 Piston
Disk Rotors
Shimano RT-MT900 200/180
Cockpit
Stem
Enve Mtn Stem 31.8mm S/M: 35mm, L/XL: 50mm
Handlebar
Enve M6 Bar 780mm
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 761 mm | 788 mm | 820 mm | 857 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 602 mm | 618 mm | 633 mm | 647 mm |
| Reach | 434 mm | 454 mm | 479 mm | 510 mm |
| Top Tube Length | 589 mm | 613 mm | 642 mm | 676 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 356 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1198 mm | 1225 mm | 1257 mm | 1294 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 703 mm | 717 mm | 738 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

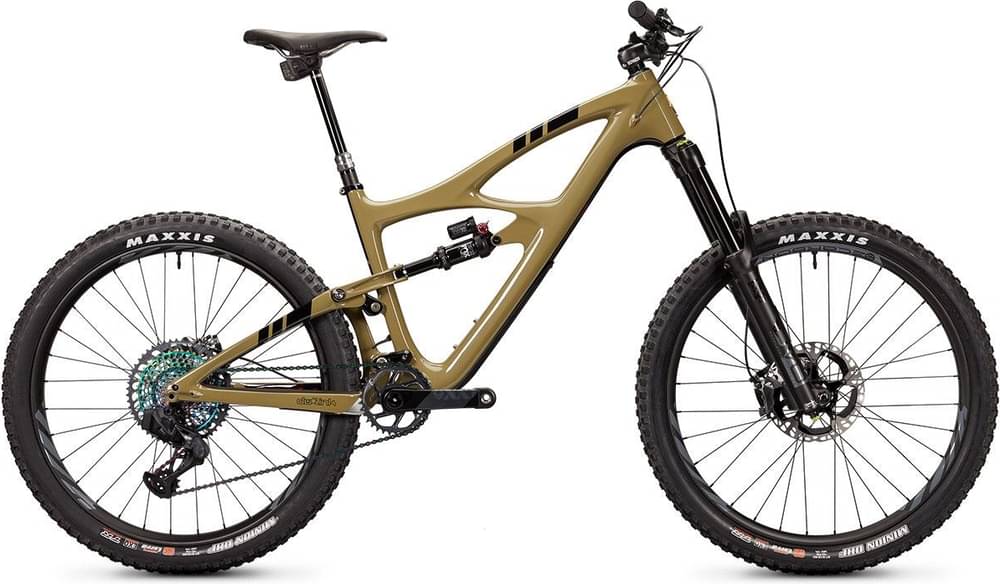

Mojo HD5 XX1 AXS is an Ibis Mojo model. Ibis released 76 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Ibis Mojo HD5 Deore 2021 has a starting price of 4699$. Ibis Mojo XX1 AXS 2021 on the other hand is the most expensive at 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 11099$. Comparing this to the average Enduro bike price, we see that the price is 208.39% higher.
Mojo HD5 XX1 AXS components
Fork
This bike has the DVO Onyx SC fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Ibis Mojo HD5 XX1 AXS bike has the Fox Float Performance Series model installed, and has a travel of 153mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Mojo HD5 XX1 AXS model has 27.5″ carbon wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mojo HD5 XX1 AXS has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Ibis model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
