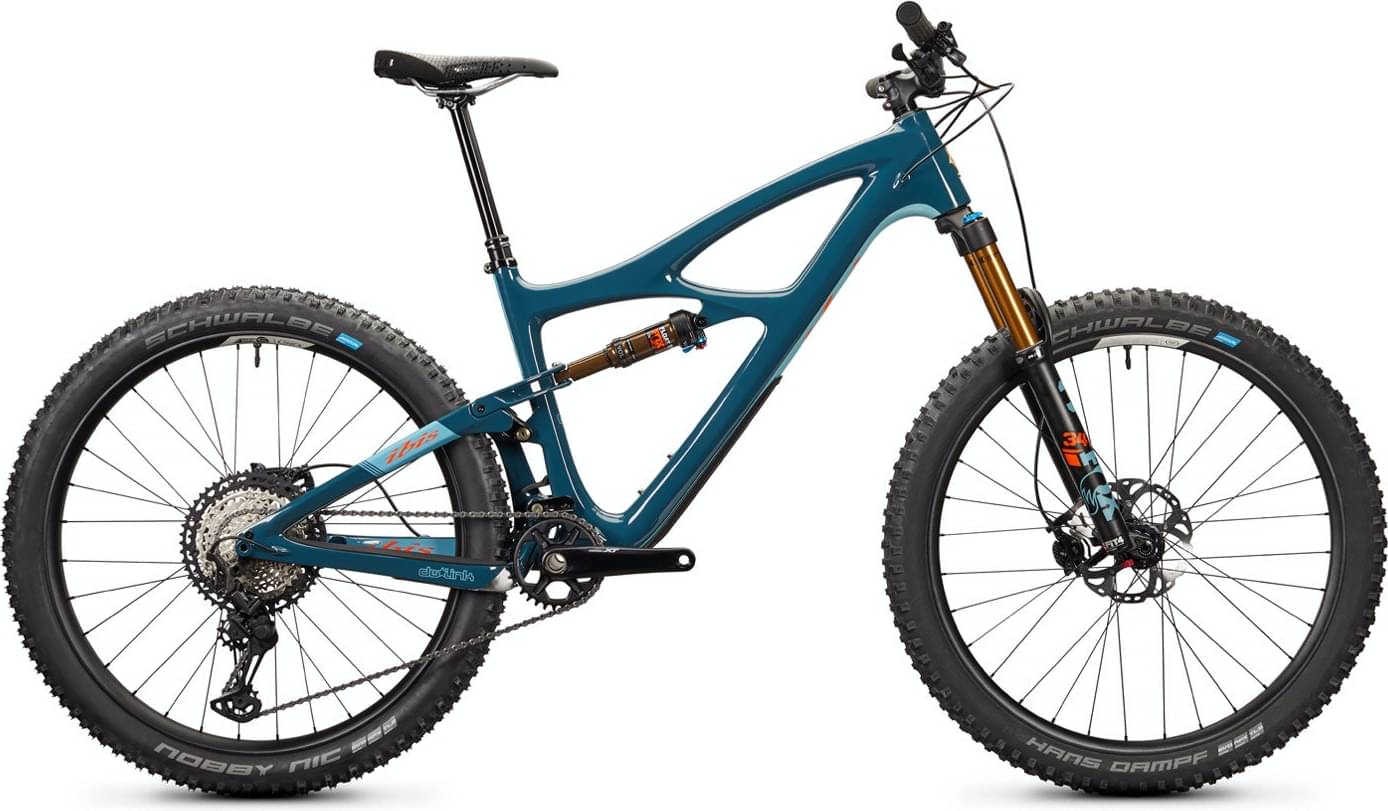

Ibis Mojo X01 2023
2023 Mountain
Estimate price |
6,699$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
RockShox Pike Select, 140mm, 46mm Offset, 27.5",110x15mm
Rear Shock
Fox Float Factory Series, DPS with EVOL, 210 x 50S/M: Light Tune, L/XL: Standard
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG 1295 Eagle 10-52
Crank
SRAM X01 Eagle DUB Wide spindle, 30t Alloy RingS/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded BB (73mm BSA)
Chain
SRAM X01 Eagle
Wheels
Rims
Blackbird Send Alloy (Send I front, Send II rear) / 27.5" / Ibis Hubs
Tires
Maxxis Minion DHF 27.5" x 2.5" Exo TR
Brakes
Brakes
SRAM Code RSC, 4 piston
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skin Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado
Seatpost
Bike Yoke Revive DropperS: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 580 mm | 595 mm | 610 mm | 624 mm |
| Reach | 434 mm | 454 mm | 479 mm | 509 mm |
| Top Tube Length | 574 mm | 597 mm | 626 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 360 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1219 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 684 mm | 714 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo X01 is part of the Ibis Mojo model. There are 76 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ibis Mojo GX 2023 is the cheapest bike model and costs 5399$. Ibis Mojo XX1 AXS 2023 is the most expensive one and costs 11499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 6699$. If we compare this with the average Trail bike cost we notice that the price is 142.54% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Mojo X01 weighs 12.11 kg (26.7 lbs) and is a bit lighter than the average. To sum up, it’s 6.36% lighter than the average weight of Trail bikes.
Overview of components
Fork
The RockShox Pike Select is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Factory Series, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Ibis Mojo X01 2023, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo X01 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Mojo X01. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
