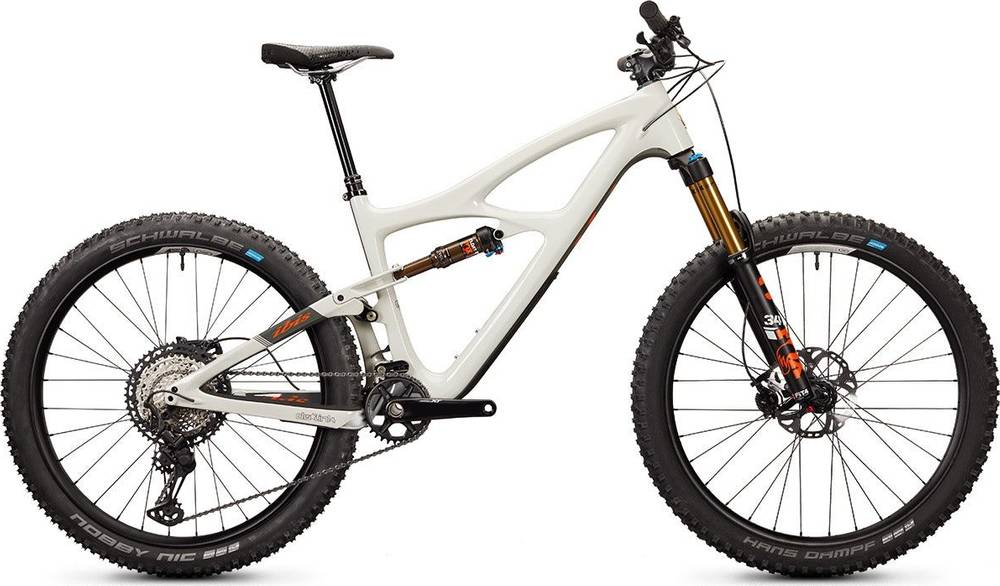

Ibis Mojo XT 2020
2020 Mountain
Estimate price |
6,099$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Factory Series Grip 2 140mm, 27.5”, 110x15
Rear Shock
Fox Float Factory Series, DPS with EVOL, 210 x 50
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow Plus 12 speed
Shift Levers
Shimano XT M8100 12 speed
Cassette
Shimano XT 10-51t 12 speed
Crank
Shimano XT M8100 170 or 175mm, 24mm spindle, 30t Alloy Ring
Bottom Bracket
Threaded BB (73mm BSA)
Chain
Shimano XT M8100 12 speed
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
Brakes
Brakes
Shimano XT M8100 2 Piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Industry Nine A318 (30, 40, 50mm)
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado, 142mm
Seatpost
Bike Yoke Revive Dropper (125, 160 or 185mm). Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 580 mm | 595 mm | 610 mm | 624 mm |
| Reach | 434 mm | 454 mm | 479 mm | 509 mm |
| Top Tube Length | 574 mm | 597 mm | 626 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 360 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1219 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 684 mm | 714 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mojo XT completes the Ibis Mojo model. There are 76 bikes that carry this model name. You can easily view all of the Ibis Mojo bikes models from 2020, here.
Model range prices
Ibis Mojo 3 NX 2020 is the cheapest bike model and costs 4199$. Ibis Mojo XX1 AXS 2020 is the most expensive one and costs 10699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 6099$. If we compare this with the average Trail bike cost we notice that the price is 120.82% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit lighter than average, Mojo XT has a weight of 12.11 kg (26.7 lbs). In short, the average Trail bike weight is 7.18% higher than this one.
Overview of components
Fork
The Mojo XT comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float Factory Series model, with a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Mojo XT are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mojo XT comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Ibis Mojo XT comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
