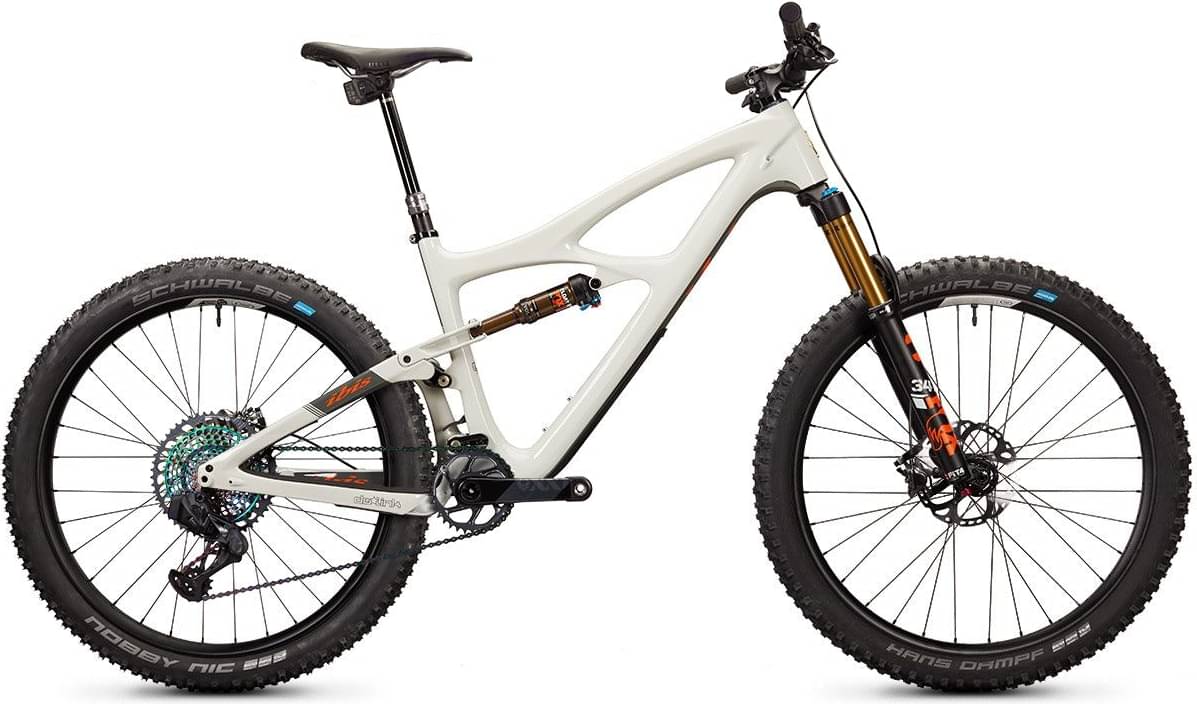

Ibis Mojo XX1 AXS 2022
2022 Mountain
Estimate price |
11,499$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Rock Shox Pike Ultimate RC2 140mm, 27.5”, 110x15
Rear Shock
Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune, L/XL: Standard
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1299 Eagle 10-52
Crank
SRAM XX1 Eagle DUB spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded BB (73mm BSA)
Chain
SRAM XX1 Eagle
Wheels
Rims
Ibis S35 Carbon Rims / 27.5" / Industry 9 Hydra Hubs
Tires
Schwalbe Hans Dampf 27.5" x 2.6" Addix Soft Super Trail (front), Schwalbe Nobby Nic 27.5" x 2.6" Addix Speedgrip Super Trail (rear)
Brakes
Brakes
Shimano XTR M9120, 2 Piston
Disk Rotors
Shimano RT-MT900 180
Cockpit
Stem
Enve Mtn Stem 31.8mm S/M: 35mm, L/XL: 50mm
Handlebar
Enve M6 Bar 780mm
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 580 mm | 595 mm | 610 mm | 624 mm |
| Reach | 434 mm | 454 mm | 479 mm | 509 mm |
| Top Tube Length | 574 mm | 597 mm | 626 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 360 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1219 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 684 mm | 714 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mojo XX1 AXS belongs to the Ibis Mojo model. Ibis released 76 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Ibis Mojo Deore 2022 has a starting price of 5099$. Ibis Mojo XX1 AXS 2022 on the other hand is the most expensive at 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11499$. If we compare this with the average Trail bike cost we notice that the price is 316.33% higher.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Mojo XX1 AXS has a weight of 12.11 kg (26.7 lbs). In short, the average Trail bike weight is 7.18% higher than this one.
Mojo XX1 AXS components
Fork
The Mojo XX1 AXS comes factory-installed with the RockShox Pike Ultimate fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float Factory Series model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Mojo XX1 AXS bike is equipped with the 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Ibis Mojo XX1 AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
