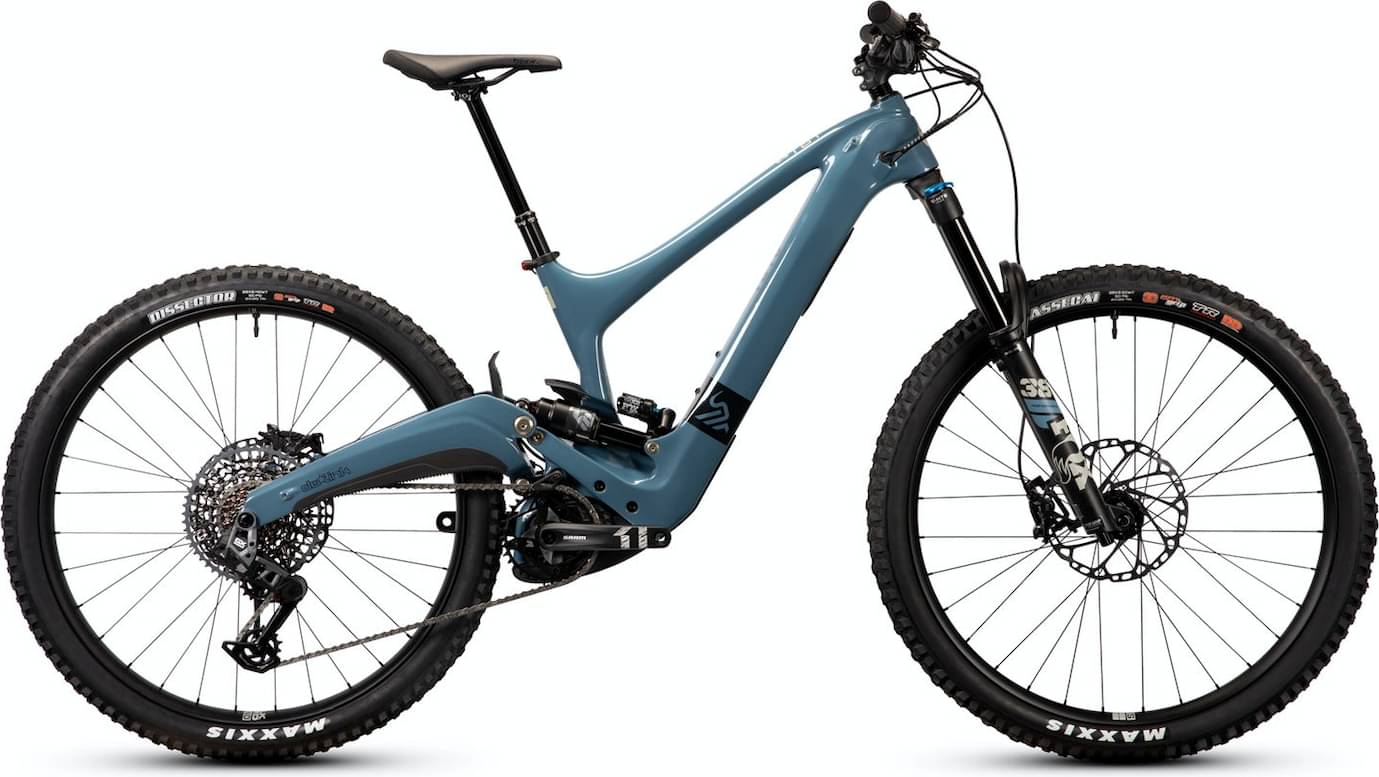

Ibis Oso GX Transmission 2023
2023 E-bike
Estimate price |
7,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Performance Series, Float 38, 170mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Performance Elite Series, X2, 205x60mm
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission AXS
Shift Levers
Eagle AXS Pod Controller
Cassette
SRAM XG 1275 10-52 Transmission
Crank
SRAM GX, 34t Steel Ring
Bottom Bracket
NA
Chain
SRAM GX Eagle Transmission
Chain Guide
Ibis Top Guide
Wheels
Rims
Blackbird Send I/ Send II, Aluminium, Ibis Hubs, SM-MD: F - 29”/R - 27.5”, LG-XL: F/R - 29”
Tires
Front: Maxxis Assegai, 29x2.5", 3C Maxxgrip, Double Down, TR, WT; Rear: Maxxis Aggressor, 29x2.5", 3C Maxxgrip, Double Down, TR, WTSize SM–MD comes with a 27.5x2.5" rear tire.
Brakes
Brakes
Shimano XT M8120, 4 piston
Cockpit
Stem
Ibis 31.8mmS/M: 40mm, L/XL: 50mm
Handlebar
Blackbird Carbon Hi Fi, 800mm
Grips
Lizard Skin Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
SDG Bel-Air, V3
Seatpost
Bike Yoke Revive DropperS: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post.
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S)
Charger
Bosch Smart System Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.3 mm | 1.23 mm |
| Front Center | 769 mm | 805 mm | 852 mm | 899 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 615 mm | 629 mm | 644 mm | 659 mm |
| Reach | 424 mm | 454 mm | 494 mm | 534 mm |
| Top Tube Length | 567 mm | 601 mm | 632 mm | 663 mm |
| Seat Tube Angle | 77 ° | 77 ° | 78 ° | 79 ° |
| Seat Tube Length | 394 mm | 415 mm | 415 mm | 427 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 106 mm | 122 mm | 139 mm |
| Chainstay Length | 433 mm | 433 mm | 438 mm | 438 mm |
| Wheelbase | 1200 mm | 1236 mm | 1288 mm | 1335 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 671 mm | 708 mm | 723 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Oso GX Transmission is part of the Ibis E Oso model. 3 e-bikes variations carry this model name so far. You can easily view all of the Ibis E Oso e-bikes models from 2023, here.
Model range prices
Ibis Oso GX Transmission 2023 is the most affordable e-bike of this model and has a price of 7999$. On the other hand, Ibis Oso NGX 2023, is the most expensive and costs 10999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. If we compare this with the average Enduro e-bike cost we notice that the price is 67.17% more expensive.
Overview of components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Performance Elite Series rear shock model, which has a travel of 155mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Ibis Oso GX Transmission 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Oso GX Transmission comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Ibis Oso GX Transmission e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Oso GX Transmission. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
