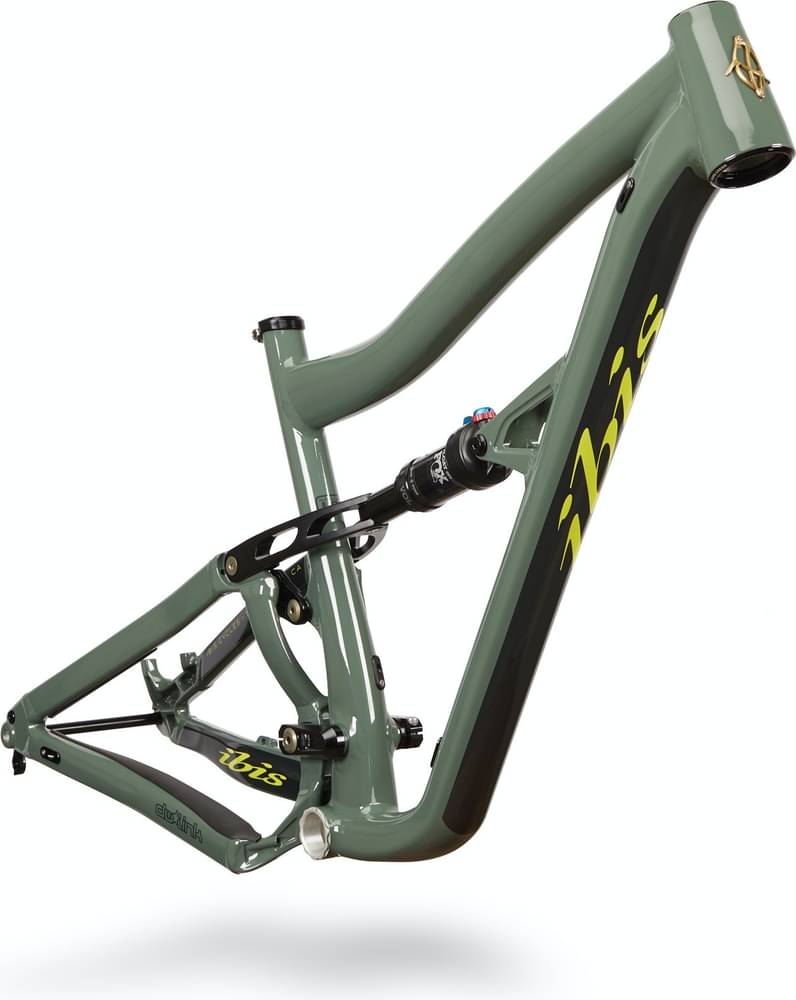

Ibis Ripley AF Frameset 2021
2021 Mountain
Estimate price |
1,899$
Weight | 3.38 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 120mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Rear Shock
Fox Performance Series Float DPS with EVOL, 190mm x 45mm S/M: Light Tune, L/XL: Standard Tune
Drivetrain
Bottom Bracket
Threaded BB (73mm BSA)
Brakes
Brakes
160mm post mount / 203mm max rotor
Cockpit
Headset
ZS44 upper / ZS56 lower
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1159 mm | 1190 mm | 1219 mm | 1248 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 678 mm | 705 mm | 724 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ripley AF Frameset completes the Ibis Ripley model. 59 frames variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Ibis Ripley AF Frameset 2021 is the most affordable frame of this model and has a price of 1899$. On the other hand, Ibis Ripley Frameset 2021, is the most expensive and costs 3199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail frames
According to our math, the average price for a trustworthy Trail frame is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Ibis Ripley AF Frameset price was 1899$. If we compare this with the average Trail frame cost we notice that the price is 9.39% higher.
Average weight for Trail frames
Trail frames weigh an average of 2.93 kg (6.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Ibis Ripley AF Frameset it’s weighing 3.38 kg (7.45 lbs). At this weight, is much heavier than average. In other words, this model is 15.36% heavier than the average Trail frame.
Ripley AF Frameset components
Rear Shock
From the factory, it comes with the Fox Performance Series Float DPS with EVOL rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis Ripley AF Frameset has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ibis Ripley AF Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
