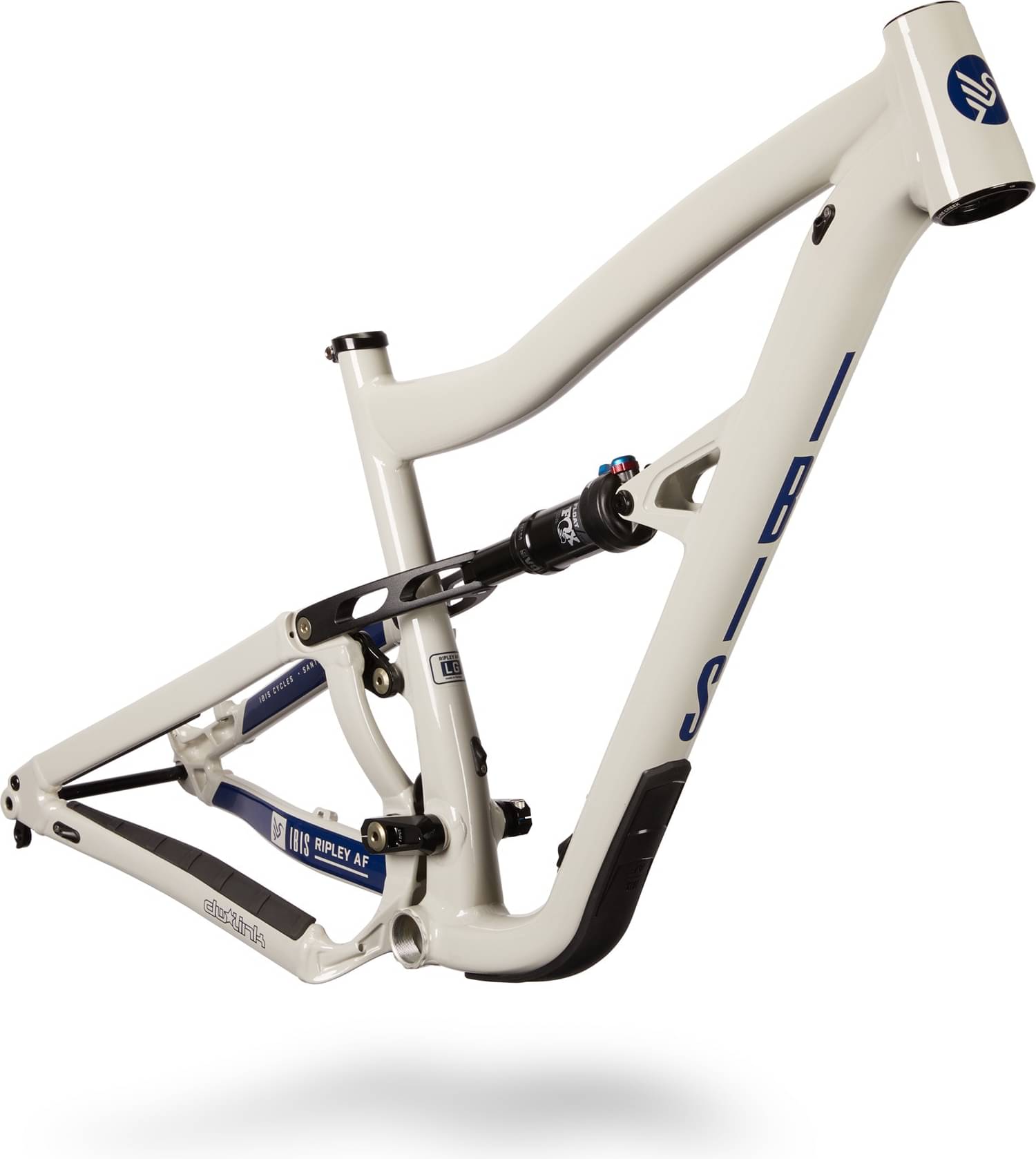

Ibis Ripley AF Frameset 2023
2023 Mountain
Estimate price |
2,199$
Weight | 3.38 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 120mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Rear Shock
Fox Performance Series Float DPS with EVOL, 190mm x 45mm
Drivetrain
Bottom Bracket
Threaded BB (73mm BSA)
Brakes
Brakes
160mm post mount / 203mm max rotor
Cockpit
Headset
ZS44 upper / ZS56 lower
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1159 mm | 1190 mm | 1219 mm | 1248 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 678 mm | 705 mm | 724 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ripley AF Frameset completes the Ibis Ripley model. Ibis released 59 frames variations of this model so far. Take a sneak peek at all Ibis Ripley frames models from 2023, by clicking here.
Model range prices
The most economical model, the Ibis Ripley AF Frameset 2023 has a starting price of 2199$. Ibis Ripley V4S Frameset 2023 on the other hand is the most expensive at 3499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail frames
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, you could also get a good Trail frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2023 and its price was 2199$. Doing a quick comparison, we notice that Ripley AF Frameset price is 26.67% more expensive than the average cost of a Trail frame.
Average weight for Trail frames
The average weight for Trail frames is 2.88 kg (6.35 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Ibis Ripley AF Frameset it’s weighing 3.38 kg (7.45 lbs). At this weight, is much heavier than average. In short, the average Trail frame weight is 17.36% lower than this one.
Overview of components
Rear Shock
From the factory, it comes with the Fox Performance Series Float DPS with EVOL rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Ripley AF Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
