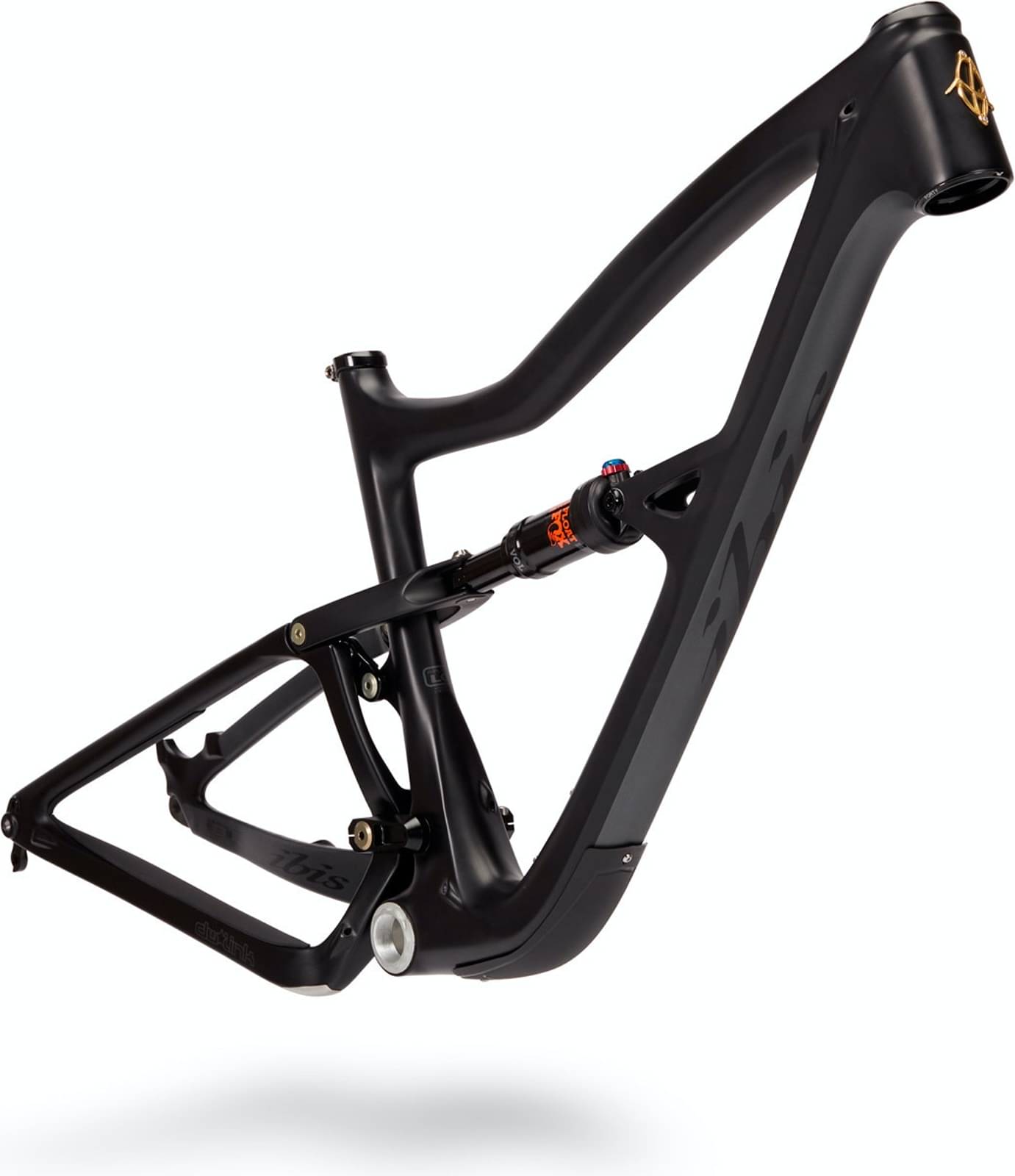

Ibis Ripley Frameset 2022
2022 Mountain
Estimate price |
3,499$
Weight | 2.27 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 120mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Rear Shock
Fox Float Factory DPS with EVOL, 190x45 S/M: Light Tune, L/XL: Standard Tune
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Brakes
Brakes
160mm post mount / 203mm max rotor
Cockpit
Headset
ZS44 upper / ZS56 lower
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1149 mm | 1180 mm | 1209 mm | 1238 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 710 mm | 714 mm | 744 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ripley Frameset completes the Ibis Ripley model. 59 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Ibis Ripley AF Frameset 2022 has a starting price of 2199$. Ibis Ripley Frameset 2022 on the other hand is the most expensive at 3499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail frames
If you want an acceptable Trail frame you should know that the average price is 1736$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2022 and its price was 3499$. If we compare this with the average Trail frame cost we notice that the price is 101.56% more expensive.
Average weight for Trail frames
Trail frames have an average weight of 2.93 kg (6.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 2.27 kg (5 lbs), Ibis frame is much lighter than average. In other words, this model is 29.07% lighter than the average Trail frame.
Ripley Frameset components
Rear Shock
Ibis Ripley Frameset frame has the Fox Float Factory DPS with EVOL model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ripley Frameset comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
