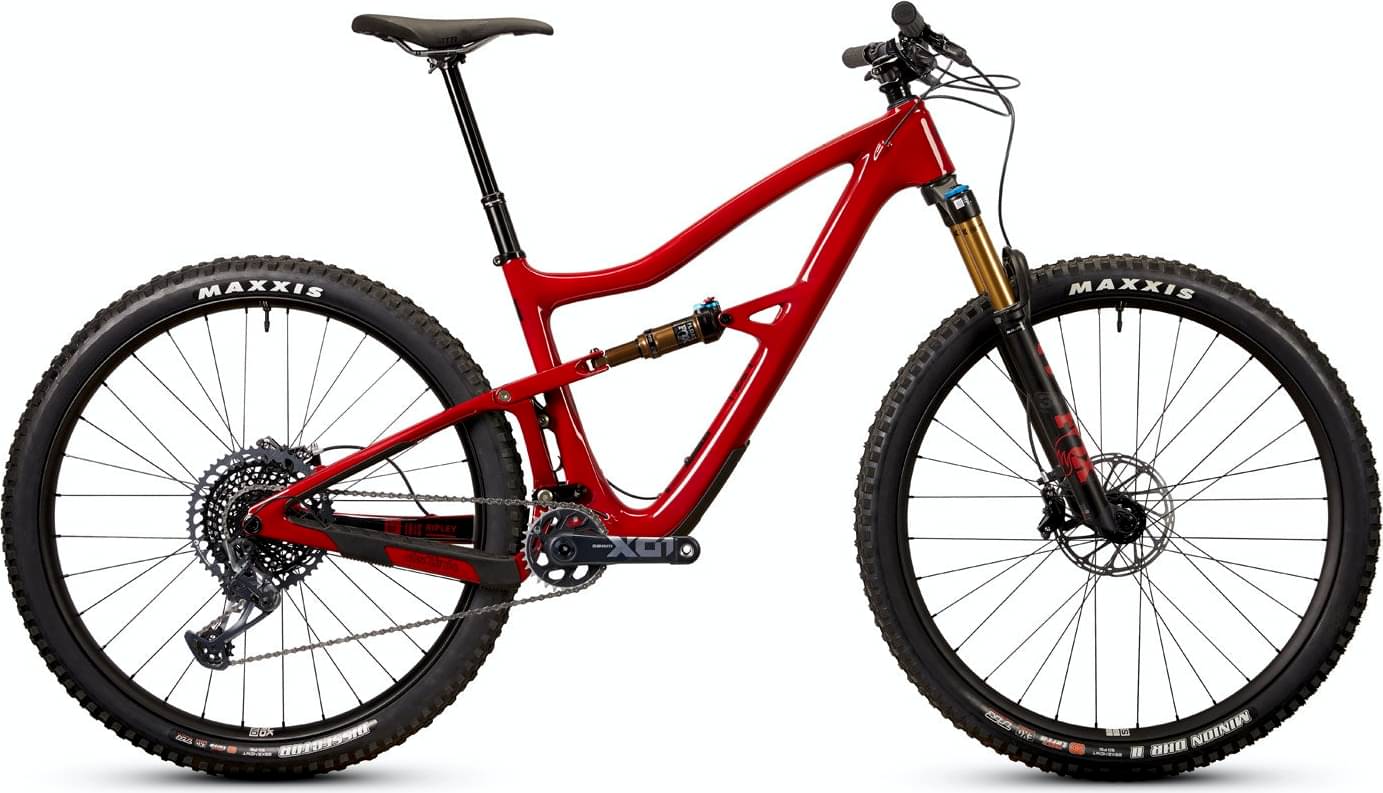

Ibis Ripley V4S XX Transmission 2023
2023 Mountain
Estimate price |
10,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Factory Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm
Rear Shock
Fox Float Factory DPS with EVOL, 190x45S/M: Light Tune, L/XL: Standard Tune
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission AXS
Shift Levers
SRAM XX Transmission AXS Controller
Cassette
SRAM XX Transmission 10-52
Crank
SRAM XX Transmission, 30t Alloy Ring
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX Transmission - 114 Links for 30T and 32T; Setup Key B
Wheels
Rims
Ibis S35 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes
Brakes
Shimano XTR M9120 4 Piston
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Hi Fi Bar
Grips
Lizard Skin Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1149 mm | 1180 mm | 1209 mm | 1238 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 710 mm | 714 mm | 744 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ripley V4S XX Transmission belongs to the Ibis Ripley model. There are 59 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Ibis Ripley AF Deore 2023 has a starting price of 3499$. Ibis Ripley V4S XX1 AXS 2023 on the other hand is the most expensive at 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ibis Ripley V4S XX Transmission price was 10799$. Doing a quick comparison, we notice that Ripley V4S XX Transmission price is 290.98% higher than the average cost of a Trail bike.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Ibis Ripley V4S XX Transmission bike has the Fox Float Factory DPS with EVOL model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Ibis Ripley V4S XX Transmission 2023, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
