Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Factory Series 130mm, 29", 15QR
Rear Shock
Fox Float Factory DPS with EVOL, 190x45 S/M: Light Tune, L/XL: Standard Tune
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1299 Eagle 10-52
Crank
SRAM XX1 Eagle DUB spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Wheels
Rims
Ibis S35 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes
Brakes
Shimano XTR M9120, 2 Piston
Disk Rotors
Shimano RT-MT900 180
Cockpit
Stem
Enve Mtn Stem 31.8mm S/M: 35mm, L/XL: 50mm
Handlebar
Enve M6 Bar 780mm
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1149 mm | 1180 mm | 1209 mm | 1238 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 710 mm | 714 mm | 744 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

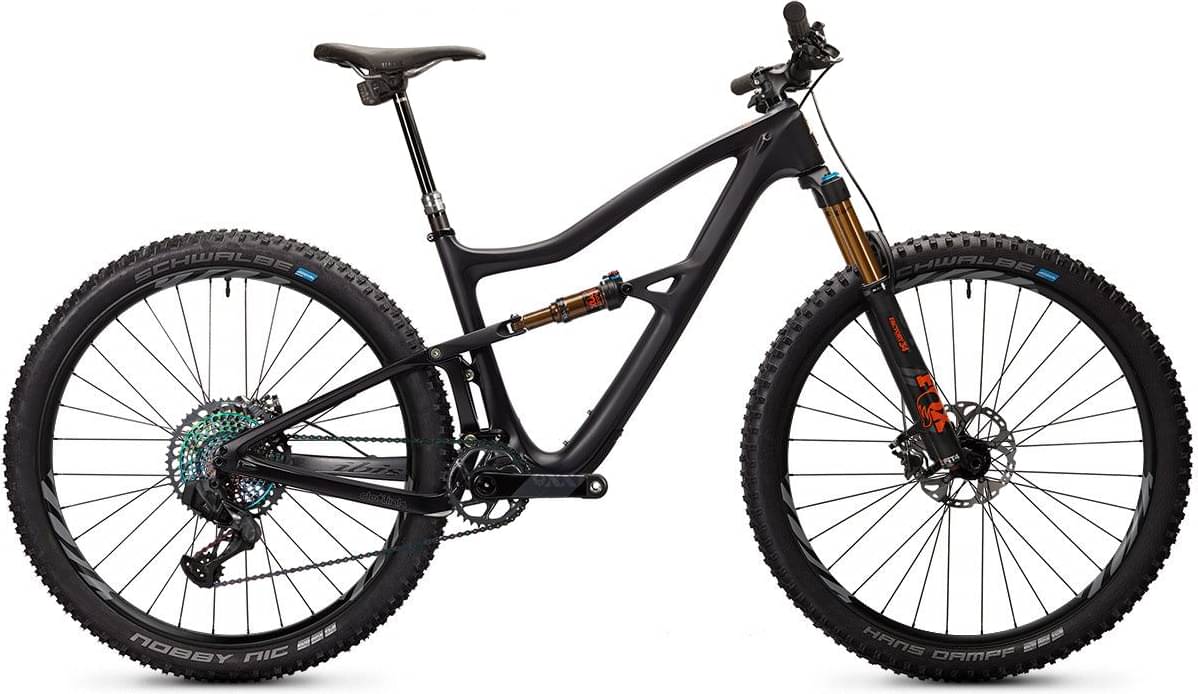

About this model
Ripley XX1 AXS completes the Ibis Ripley model. Ibis released 59 bikes variations of this model so far. You can easily view all of the Ibis Ripley bikes models from 2022, here.
Model range prices
Ibis Ripley AF Deore 2022 is the cheapest bike model and costs 3799$. Ibis Ripley XX1 AXS 2022 is the most expensive one and costs 11499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11499$. Comparing this to the average Trail bike price, we see that the price is 316.33% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float Factory DPS with EVOL rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Ripley XX1 AXS model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Ibis Ripley XX1 AXS comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
