Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 147mm -
Fork DVO Onyx SC
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
DVO Onyx D1 | 15QRx110 - 160 (29")
Rear Shock
DVO Topaz T3 Air, 210 x 55
Drivetrain
Rear Derailleur
Shimano Deore M6100 Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Shimano Deore M6100 10-51
Crank
Shimano Deore M6100 24mm spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
Shimano Deore M6100
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi
Brakes
Brakes
Shimano Deore M6120 4 Piston
Disk Rotors
Shimano SM-RT66 203/180
Cockpit
Stem
Ibis 31.8mm S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
KS Rage-i Dropper S: 125mm, M: 150mm, L/XL: 170mm 120, 150 or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 752 mm | 783 mm | 804 mm | 829 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 615 mm | 622 mm | 631 mm | 644 mm |
| Reach | 433 mm | 460 mm | 477 mm | 497 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1187 mm | 1218 mm | 1239 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 707 mm | 752 mm | 752 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

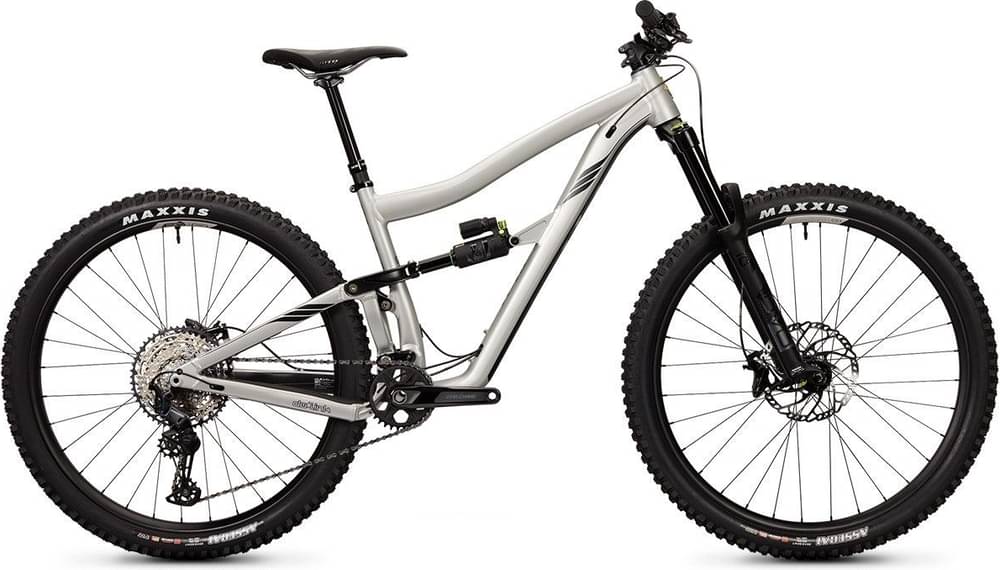

Model Overview
Ripmo AF Deore belongs to the Ibis Ripmo model. 69 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Ibis Ripmo AF Deore 2021 has a starting price of 3399$. Ibis Ripmo XX1 AXS 2021 on the other hand is the most expensive at 11699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 3399$. Doing a quick comparison, we notice that Ripmo AF Deore price is 23.06% more expensive than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the DVO Onyx SC model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Ripmo AF Deore has a rear shock with a travel of 147mm. The model DVO Topaz T3 Air is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Ripmo AF Deore model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ripmo AF Deore comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Ibis model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
