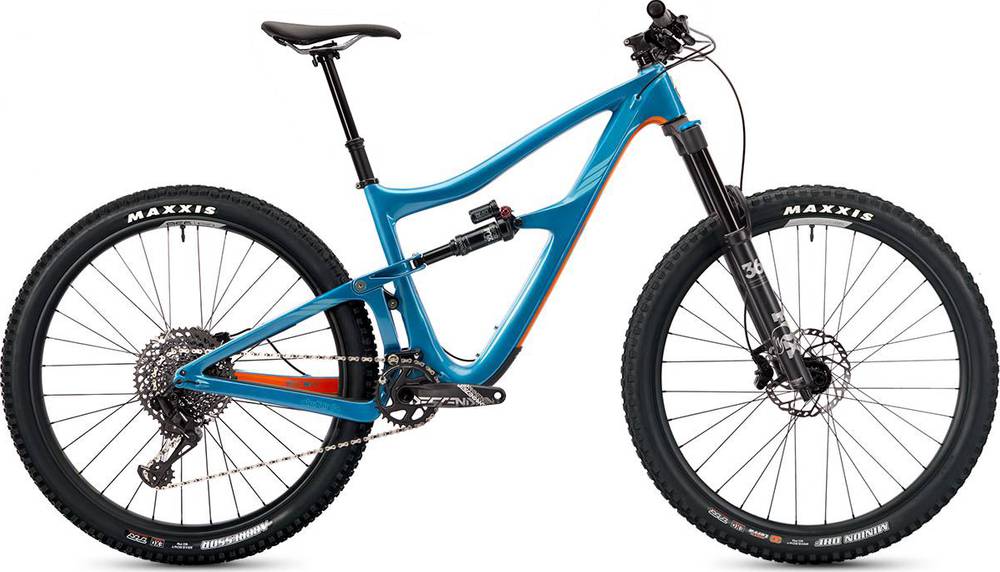

Ibis Ripmo Frameset 2019
2019 Mountain
Estimate price |
2,999$
Weight | 2.77 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 145mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 210 x 55
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Brakes
Brakes
Post mount / 203mm max rotor
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 615 mm | 622 mm | 631 mm | 644 mm |
| Reach | 433 mm | 448 mm | 473 mm | 495 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 368 mm | 418 mm | 470 mm |
| Head Tube Angle | 65.9 ° | 65.9 ° | 65.9 ° | 65.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1179 mm | 1197 mm | 1222 mm | 1251 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 707 mm | 752 mm | 752 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ripmo Frameset is an Ibis Ripmo model. Ibis released 69 frames variations of this model so far. You can easily view all of the Ibis Ripmo frames models from 2019, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail frames
According to our calculations, the average cost of a Trail frame that is reliable is 1736$. However, you could also get a good Trail frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Ibis released this model in 2019, its price was 2999$. Doing a quick comparison, we notice that Ripmo Frameset price is 72.75% more expensive than the average cost of a Trail frame.
Trail frames average weight
On a deeper look, we notice that the average weight of a Trail frame is 2.93 kg (6.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Ibis Ripmo Frameset it’s weighing 2.77 kg (6.11 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.78% lighter than the average Trail frame.
Overview of components
Rear Shock
From the factory, it comes with the Fox Float Performance Series rear shock model, which has a travel of 145mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ripmo Frameset has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ibis Ripmo Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
