Bike details
Overview
Key information split into simple groups.
Frame summary
-
-

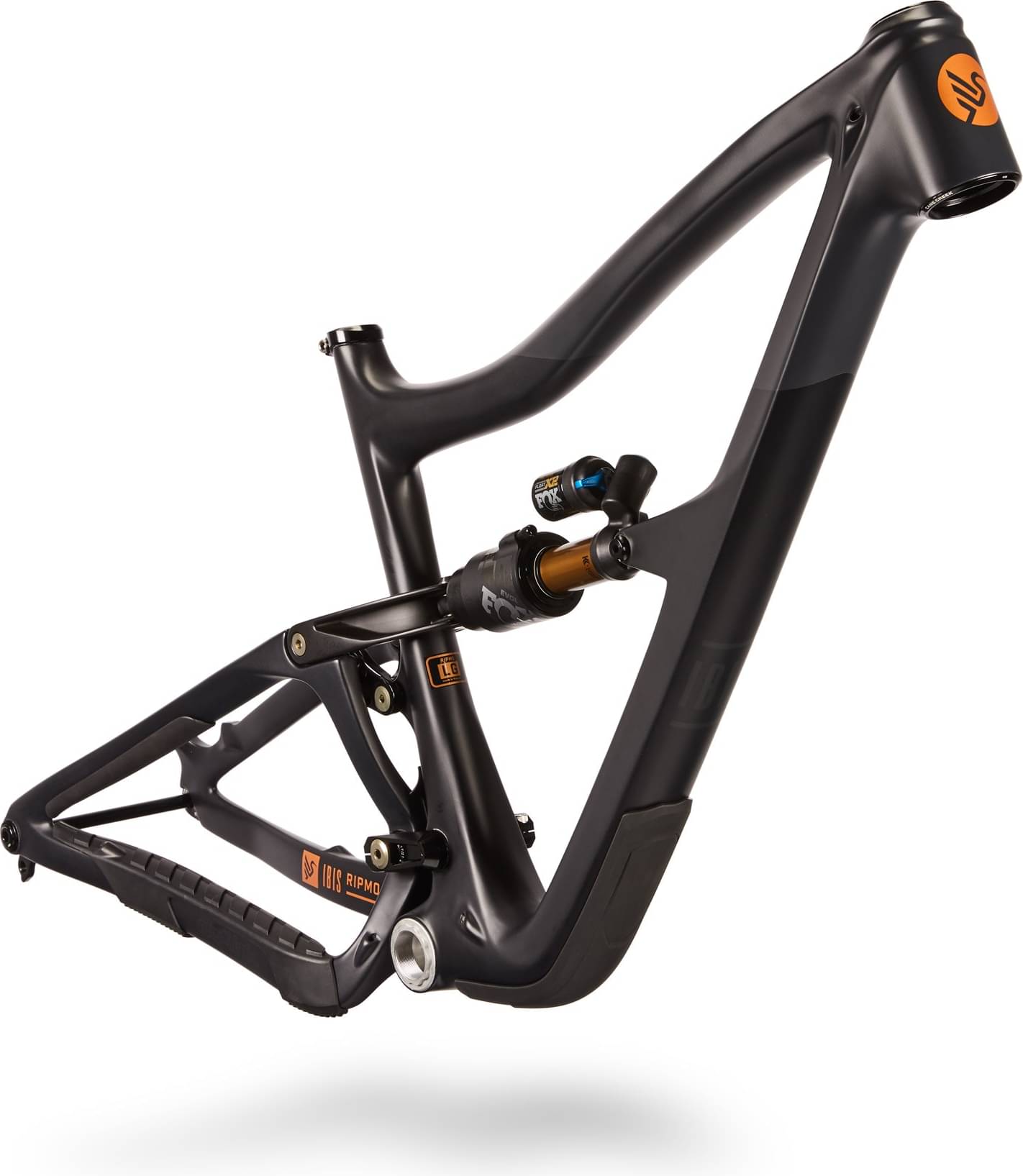

Frame Carbon -
Wheels 29" -
Travel Rear 147mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front and rear triangle
Rear Shock
Fox Float Factory Series, X2 with EVOL, 210 x 55
Drivetrain
Bottom Bracket
Threaded (73mm BSA)
Brakes
Brakes
180mm Post mount / 203mm max rotor
Cockpit
Headset
ZS44 upper / ZS56 lower
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 754 mm | 786 mm | 805 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 611 mm | 621 mm | 630 mm | 642 mm |
| Reach | 435 mm | 462 mm | 477 mm | 502 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1189 mm | 1221 mm | 1240 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 705 mm | 735 mm | 742 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ripmo V2S Frameset is part of the Ibis Ripmo model. Ibis released 69 frames variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Ibis Ripmo AF Frameset 2023 has a starting price of 2199$. Ibis Ripmo V2S Frameset 2023 on the other hand is the most expensive at 3699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail frames average price
Our math shows that the average cost of a dependable Trail frame is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3699$. If we compare this with the average Trail frame cost we notice that the price is 113.08% more expensive.
Ripmo V2S Frameset components
Rear Shock
From the factory, it comes with the Fox Float Factory Series rear shock model, which has a travel of 147mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ripmo V2S Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
