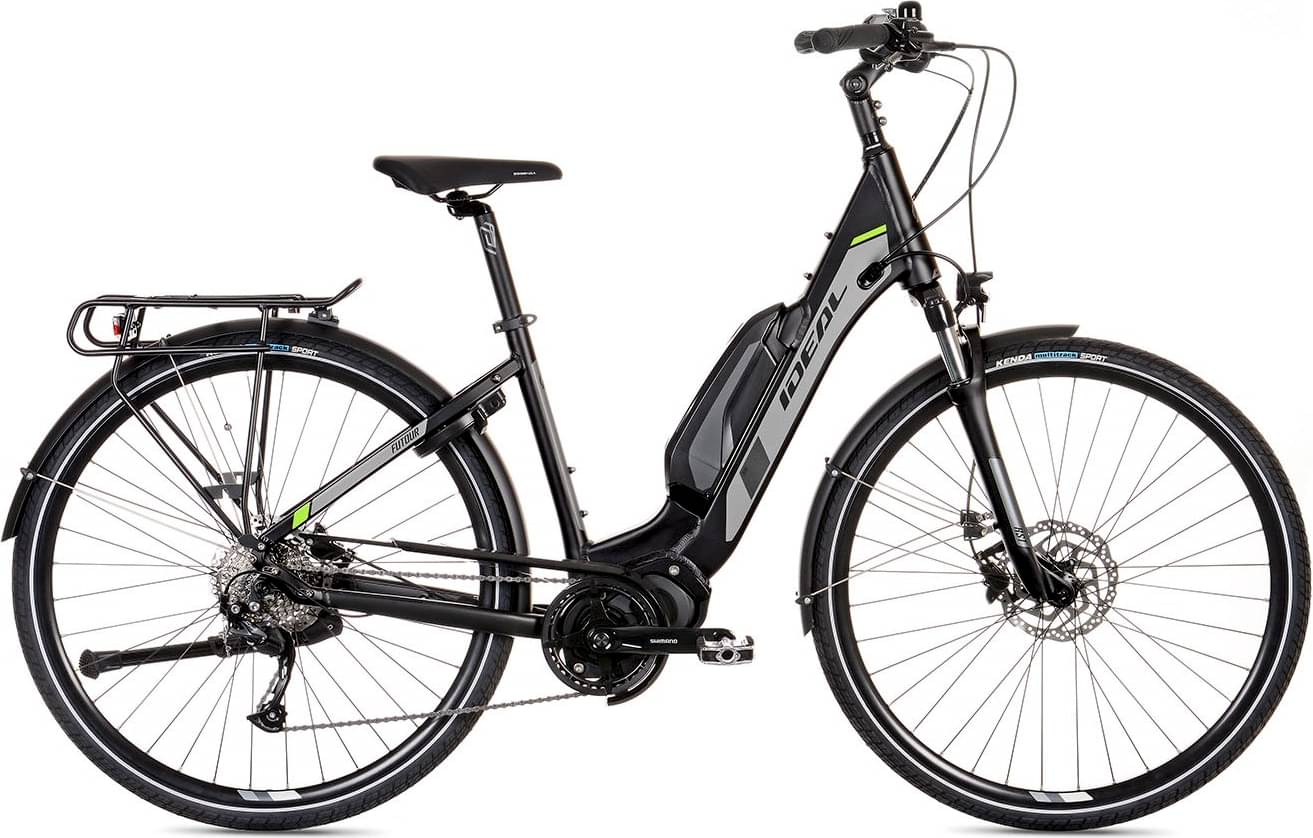

ideal FUTOUR E509 WAVE 2023
2023 E-bike
Estimate price |
3,344$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST VOLANT -
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano STEPS battery (down tube) BT-E8014, 36V, 11.6Ah, 418Wh(11.6Ah) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eTouring, AL6061-T4/T6, Shimano STEPS, hydroforming, internal brake and cables
Suspension Fork
RST Volant-T, 60mm, adjustable preload
Drivetrain
Rear Derailleur
Shimano Altus RD-M2000 SGS
Shift Levers
Shimano STEPS switch SW-E6010-L / Shimano Altus SL-M310R
Cassette
Shimano CS-HG201-9, 11-34T
Crank
Shimano STEPS FC-E5010, 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano CN-HG6070-9
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX505
Rims
Cross X-6 Disc, 622-21
Tires
Kenda 47-622 (700x45C) K1172
Brakes
Brakes
Shimano BR-MT200/BL-M201, hydraulic disc brakes, 180/180 mm
Cockpit
Stem
ID - Project, alloy, adjustable angle, diameter 31.8 mm
Handlebar
ID - Project, alloy riser bar, 640 mm
Seat
Saddle
Selle Royal Premium Moderate VLS, New Essenza
Seatpost
ID - Project, 31.9 mm
Motor & Battery
Motor
Shimano STEPS center drive unit DU-E5000, 36V, 250W, 40Nm
Battery
Shimano STEPS battery (down tube) BT-E8014, 36V, 11.6Ah, 418Wh(11.6Ah)
Fit data
Geometry
Numbers for sizing and ride feel.
Model Overview
FUTOUR E509 WAVE completes the Ideal E Futour model. Ideal launched 11 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ideal FUTOUR E508 WAVE 2023 is the most affordable e-bike of this model and has a price of 2796$. On the other hand, Ideal FUTOUR E810X WAVE 2023, is the most expensive and costs 4621$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Touring e-bikes
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3040$. If we compare this with the average Touring e-bike cost we notice that the price is 25.15% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
FUTOUR E509 WAVE components
Fork
This e-bike has the RST VOLANT fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The FUTOUR E509 WAVE 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
