Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 155mm -
Fork DVO Diamond
-
Groupset SLX, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
DVO Diamond D3, 44mm offset
Rear Shock
DVO Topaz 1 Air, 3-position lever (open/mid/firm), 230mm x 60mm
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed, I-SPEC bracket
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano M611, 170mm length
Bottom Bracket
Shimano, BB92, PressFit
Chain
Shimano Deore M6100, 12-speed
Chain Guide
e*thirteen upper slider
Pedals
None
Wheels
Front Hub
Intense, alloy, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
Intense, alloy, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
e*thirteen LG1 Enduro Race, 30mm width, 32 hole
Tires
Front: Maxxis Minion DHF, EXO+, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, EXO+, 29" x 2.4"
Brakes
Brakes
Shimano Deore M6120, 4-piston, 203mm 6-bolt rotors
Brake Levers
Shimano Deore M6120
Cockpit
Stem
e*thirteen Base, 40mm length, 35mm bar clamp
Handlebar
e*thirteen Base, 800mm width, 35mm clamp diameter
Grips
Intense
Headset
Tange Seiki, ZS44/EC49
Seat
Saddle
SDG Radar
Seatpost
Intense Recon dropper, Drop: 125mm (SM), 150mm (MD/LG), 170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Stack | 618 mm | 626 mm | 634 mm | 643 mm |
| Reach | 412 mm | 433 mm | 457 mm | 473 mm |
| Top Tube Length | 605 mm | 629 mm | 657 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 385 mm | 418 mm | 448 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 92 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1183 mm | 1207 mm | 1235 mm | 1255 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 832 mm | 836 mm | 836 mm | 838 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

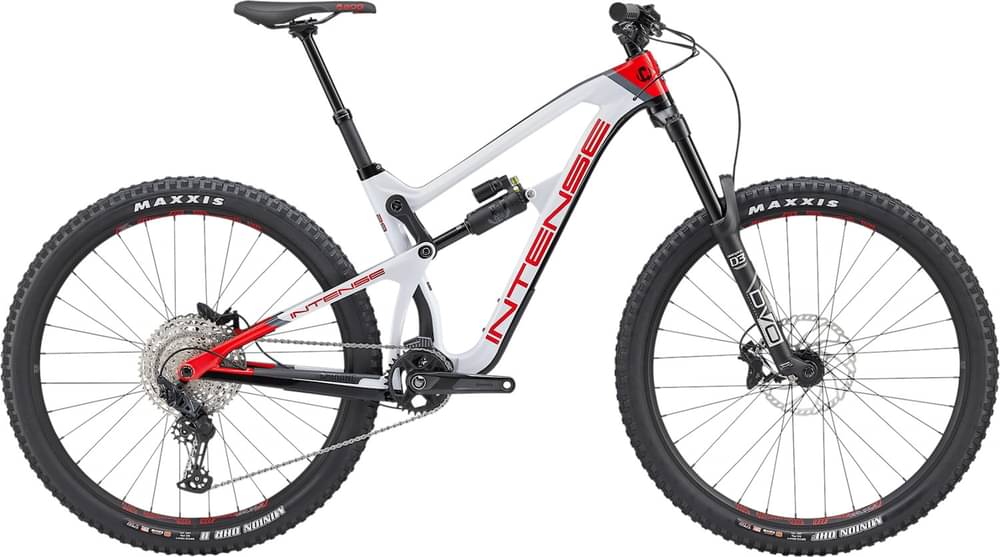

Carbine Expert completes the Intense Carbine model. Intense released 20 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Intense Carbine Expert 2021 is the most affordable bike of this model and has a price of 2999$. On the other hand, Intense Carbine Pro 2021, is the most expensive and costs 5899$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Intense Carbine Expert price was 2999$. Doing a quick comparison, we notice that Carbine Expert price is 20.01% lower than the average cost of an Enduro bike.
Carbine Expert components
Fork
The fork installed on this bike is the DVO Diamond model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the DVO Topaz 1 Air rear shock model, which has a travel of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Carbine Expert bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Intense Carbine Expert is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Carbine Expert comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Intense Carbine Expert comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
