Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 240mm -
Fork Fox Performance Elite Float 40
-
Groupset GX, e*thirteen LG1 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
M16 Monocoque Carbon Frame. Optimized Layup Carbon fiber. Carbon top link, Titanium hardware, Internal shift and brake routing. ISCG05 mounts, Flak guard armor. Travel: 215-240MM (8.4-9.4”)
Suspension Fork
Fox Performance Elite Float 40 / 200MM
Rear Shock
Fox Performance Float X2 / 250MM x 75MM
Drivetrain
Rear Derailleur
SRAM GX DH 7 speed
Front Derailleur
N/A
Shift Levers
SRAM GX 7 speed
Cassette
E13 7 speed DM / 9-21t
Crank
E13 LG1 Alloy DH / 36t / 165MM / Boost
Bottom Bracket
E13 83MM BSA (Threaded)
Chain
SRAM PC 1110 7/11speed
Chain Guide
E13 LG1+
Wheels
Front Hub
E13 TRS Race SL 27.5, 110x20 mm front HUB; 157 x 12 mm rear w/XD Driver, 20 mm front
Rear Hub
E13 TRS Race SL 27.5, 110x20 mm front HUB; 157 x 12 mm rear w/XD Driver, 20 mm front
Rims
E13 LG1 DH 30MM
Spokes
E13
Tires
Front: Maxxis Minion DHF 27.5 x 2.50 // Rear: Maxxis Minion DHR II 27.5 x 2.40”
Brakes
Brakes
Shimano Zee M640 Front / Shimano Zee M640 Rear // Rotors Shimano XT RT76 203MM Front / Shimano XT RT76 203MM Rear
Cockpit
Stem
Renthal Integra DH 45MM
Handlebar
Intense Recon Alloy DH 800MM
Grips
Intense Lock-on
Headset
Cane Creek, 40, alloy cartridge, 25 mm of spacers
Seat
Saddle
WTB Volt Sport
Seatpost
Intense Alloy 31.6MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.452 mm | 1.389 mm | 1.351 mm |
| Front Center | 18873 mm | 19533 mm | 20199 mm | 20917 mm |
| Rake | 1405 mm | 1400 mm | 1401 mm | 1565 mm |
| Trail | -1395 mm | -1390 mm | -1391 mm | -1575 mm |
| Seat Tube Angle | 72.9 ° | 72.9 ° | 72.9 ° | 72.9 ° |
| Head Tube Angle | 63.1 ° | 63.1 ° | 63.1 ° | 63.1 ° |
| Standover Height | 797 mm | mm | 809 mm | mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

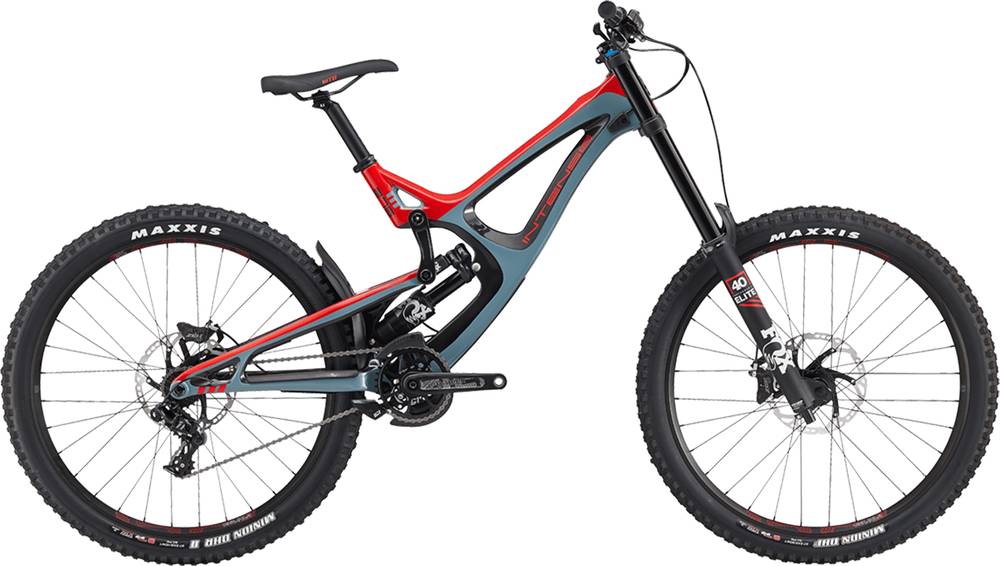

M16 EXPERT is part of the Intense M16 model. Intense released 3 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5099$. Comparing this to the average Downhill bike price, we see that the price is 50.37% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
M16 EXPERT components
Fork
This bike has the Fox Performance Elite Float 40 fork installed. The fork’s travel is 200mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Performance Float X2 / 250MM x 75MM rear shock model, which has a travel of 240mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The M16 EXPERT 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Intense M16 EXPERT is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Intense M16 EXPERT bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
