Intense M29 EXPERT 2023
2023 Mountain
Estimate price |
5,499$
Weight | 17.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 208mm -
Fork DVO Onyx DC
-
Groupset GX, SRAM -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the Downhill category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and molded frame protection. Concentric bottom link with integrated bearings. 208mm of rear wheel travel. Locking rear axle (157mm boost hub spacing)
Suspension Fork
DVO ONYX DC D1 203mm air spring, AVA volume adjustment, low speed compression and low speed rebound adjustment, solid front axle with pinch bolts (110mm boost spacing)>
Rear Shock
DVO Jade Coil High/Low speed compression, low speed rebound adjustable bladder, spring preload adjustment spring, shock size/stroke: 250mm x 70mm, Upper hardware; 8mm x 30mm, Lower Mounting Hardware: 8mm x 30mm
Drivetrain
Rear Derailleur
SRAM GX DH 7-speed
Shift Levers
SRAM GC 7-speed
Cassette
SRAM PG 720, DH 7-speed, 11-25t
Crank
e*thirteen Helix DH 36t. 165mm length, 55mm chainline
Bottom Bracket
e*thirteen Threaded
Chain
SRAM PC 1110 7SP 108 Links
Wheels
Front Hub
Front - e*thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - e*thirteen hub 32h 6-bolt rotor HG driver body 157mm x 12mm boost
Rear Hub
Front - e*thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - e*thirteen hub 32h 6-bolt rotor HG driver body 157mm x 12mm boost
Rims
e*thirteen LG1 DH 30MM Alloy Rim / e*thirteen alloy hub/boost
Tires
MAXXIS Assegai WT 3C Maxx Grip DH 29"X2.50" -Front/Rear
Brakes
Brakes
SRAM Code R 4-piston Rotors: 200mm 6-bolt 1.8mm Front/Rear
Cockpit
Stem
INTENSE DH Stem, 35mm, 50mm length
Handlebar
INTENSE Recon 35mm, 20mm ride, 800mm width
Grips
INTENSE Logo Lock-On
Headset
Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/30
Seat
Saddle
SDG I-FLY 2.0, I-Beam Rail
Seatpost
SDG I-Beam Alloy, 31.6mm/300mm
Fit data

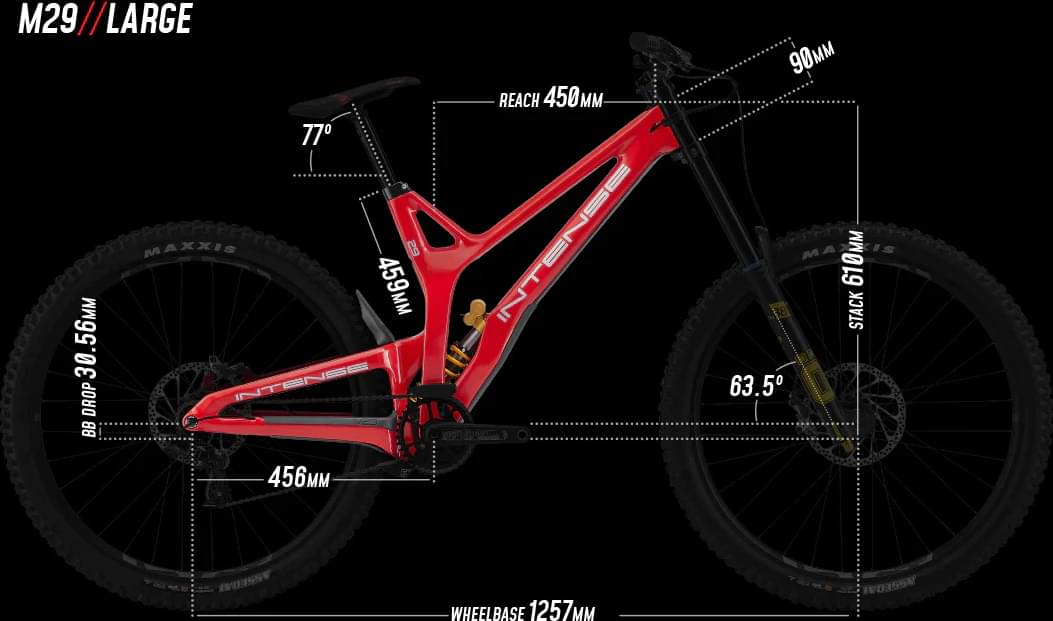

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm |
| Front Center | 796 mm | 811 mm | 852 mm |
| Rake | 56 mm | 56 mm | 56 mm |
| Trail | 130 mm | 130 mm | 130 mm |
| Stack | 623 mm | 623 mm | 645 mm |
| Reach | 432 mm | 447 mm | 477 mm |
| Top Tube Length | 580 mm | 595 mm | 635 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 457 mm | 457 mm | 457 mm |
| Head Tube Angle | 62.7 ° | 62.7 ° | 62.7 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1257 mm | 1272 mm | 1313 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm |
| Standover Height | 821 mm | 821 mm | 821 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
M29 EXPERT is part of the Intense M29 model. 14 bikes variations carry this model name so far. Take a sneak peek at all Intense M29 bikes models from 2023, by clicking here.
Model range prices
Intense M29 EXPERT 2023 is the cheapest bike model and costs 5499$. Intense M29 2023 is the most expensive one and costs 6999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Intense released this model in 2023, its price was 5499$. In conclusion, this bike price is 62.16% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
M29 EXPERT weighs 17.77 kg (39.18 lbs) and is considerably heavier than the average. In other words, this model is 11.83% heavier than the average Downhill bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This bike has the DVO Onyx DC fork installed. The fork’s travel is 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the DVO Jade Coil High/Low speed compression model, with a travel of 208mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the M29 EXPERT model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
