Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 200mm -
Travel Rear 208mm -
Fork Öhlins DH38
-
Groupset GX, e*thirteen -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 177cm
LG
175cm - 183cm
XL
180cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the Downhill category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and molded frame protection. Concentric bottom link with integrated bearings. 208mm of rear wheel travel. Locking rear axle (157mm boost hub spacing)
Suspension Fork
Öhlins DH38, 200mm, dual air spring, compression and rebound adjustment, solid front axle with pinch bolts (110mm boost spacing)
Rear Shock
Öhlins TTX22M Coil,3 position high speed compression, low speed compression and rebound adjustment, Shock size/Stroke: 250mm x 70mm, Upper hardware: 8mm x 30mm, Lower Mounting Hardware: 8mm x 30mm
Drivetrain
Rear Derailleur
SRAM GX DH 7SP
Shift Levers
SRAM GX 7SP
Cassette
E Thirteen Integrated 7SP
Crank
E Thirteen Helix DH 36t. 165mm length, 55mm chainline
Bottom Bracket
E Thirteen Threaded
Chain
SRAM PC 1110 7SP 108 Links
Chain Guide
E Thirteen Vario guide DH
Wheels
Front Hub
Front - E Thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - E Thirteen hub 32h 6-bolt rotor Micro spline driver body 157mmx12mm boost
Rear Hub
Front - E Thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - E Thirteen hub 32h 6-bolt rotor Micro spline driver body 157mmx12mm boost
Rims
E Thirteen LG1 DH alloy rim 30mm 32h
Spokes
Hive triple-butted black steel spokes
Tires
Front: Maxxis Assegai WT Maxx Terra 3C MaxxGrip DH 29" x 2.50", Rear: Maxxis Assegai WT Maxx Terra 3C MaxxGrip DH 29" x 2.50"
Brakes
Brakes
TRP DH-R EVO, 4-piston caliper - TRP RS01E - 203mm/2.3mm rotors Front & Rear
Cockpit
Stem
INTENSE DH Stem, 35mm, 50mm length
Handlebar
EThirteen alloy 35mm, 30mm rise, 800mm width
Grips
INTENSE Logo Lock-on
Headset
Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/30
Seat
Saddle
SDG I-FLY 2.0, I-Beam Rail
Seatpost
SDG I-Beam alloy, 31.6mm/300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 342.7 mm | 342.7 mm | 342.7 mm |
| Front Center | 788 mm | 803 mm | 844 mm |
| Rake | 56 mm | 56 mm | 57 mm |
| Trail | 124 mm | 124 mm | 123 mm |
| Stack | 601 mm | 601 mm | 623 mm |
| Reach | 426 mm | 441 mm | 471 mm |
| Top Tube Length | 561.4 mm | 582 mm | 616 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 459 mm | 459 mm | 459 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 90 mm | 115 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1233 mm | 1248 mm | 1289 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 792 mm | 791 mm | 803 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 175 cm | 180 cm |
| Rider Max Height | 177 cm | 183 cm | 198 cm |

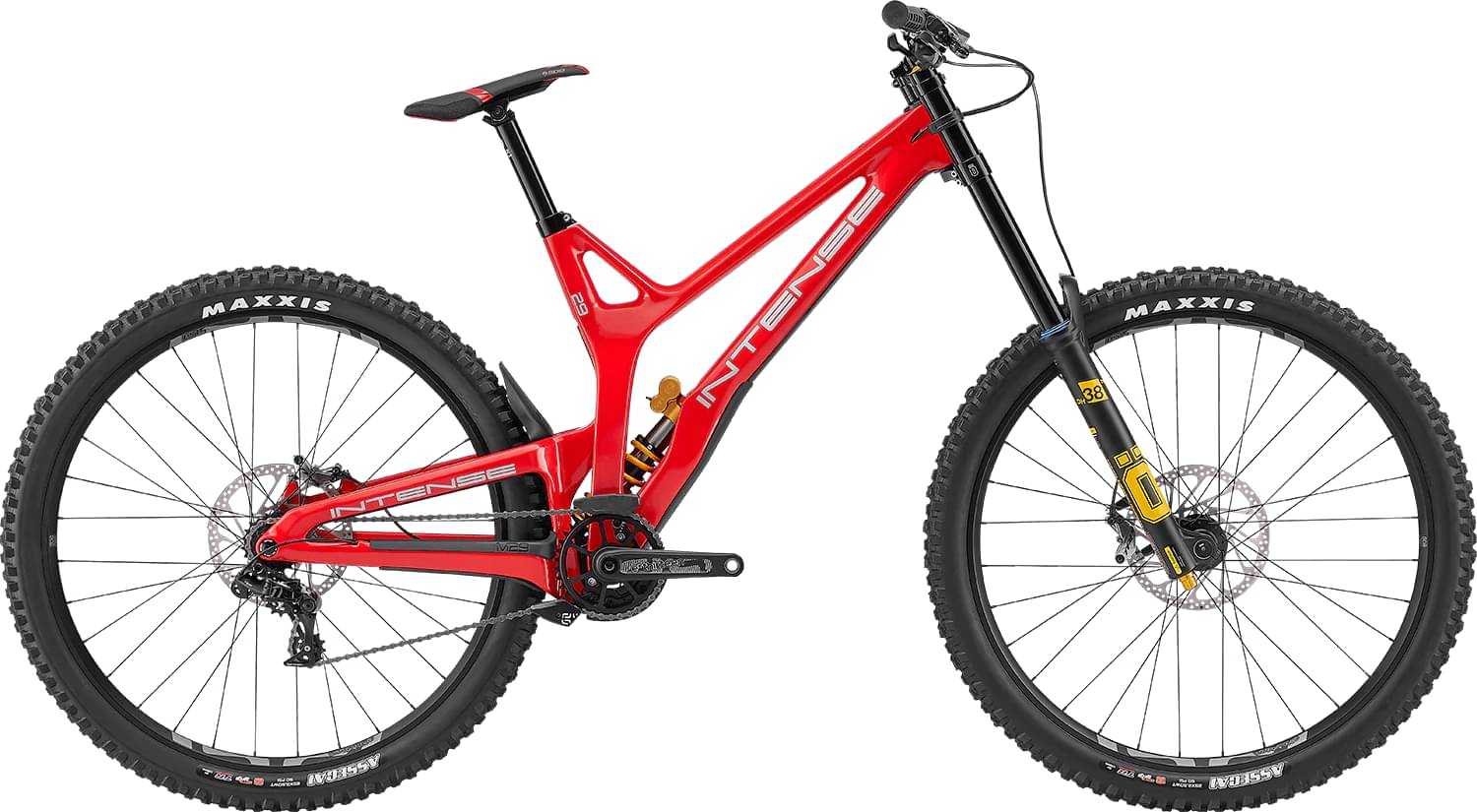

Model Overview
M29 Pro is an Intense M29 model. There are 14 bikes that carry this model name. Take a sneak peek at all Intense M29 bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Intense M29 Expert 2022 has a starting price of 5499$. Intense M29 2022 on the other hand is the most expensive at 6999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 6999$. Doing a quick comparison, we notice that M29 Pro price is 106.4% higher than the average cost of a Downhill bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
M29 Pro components
Fork
The fork installed on this bike is the Öhlins DH38 model. The travel on this model is 200mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The M29 Pro has a rear shock with a travel of 208mm. The model Öhlins TTX22M Coil is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on M29 Pro are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The M29 Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 164 cm – 198 cm (5.38 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
