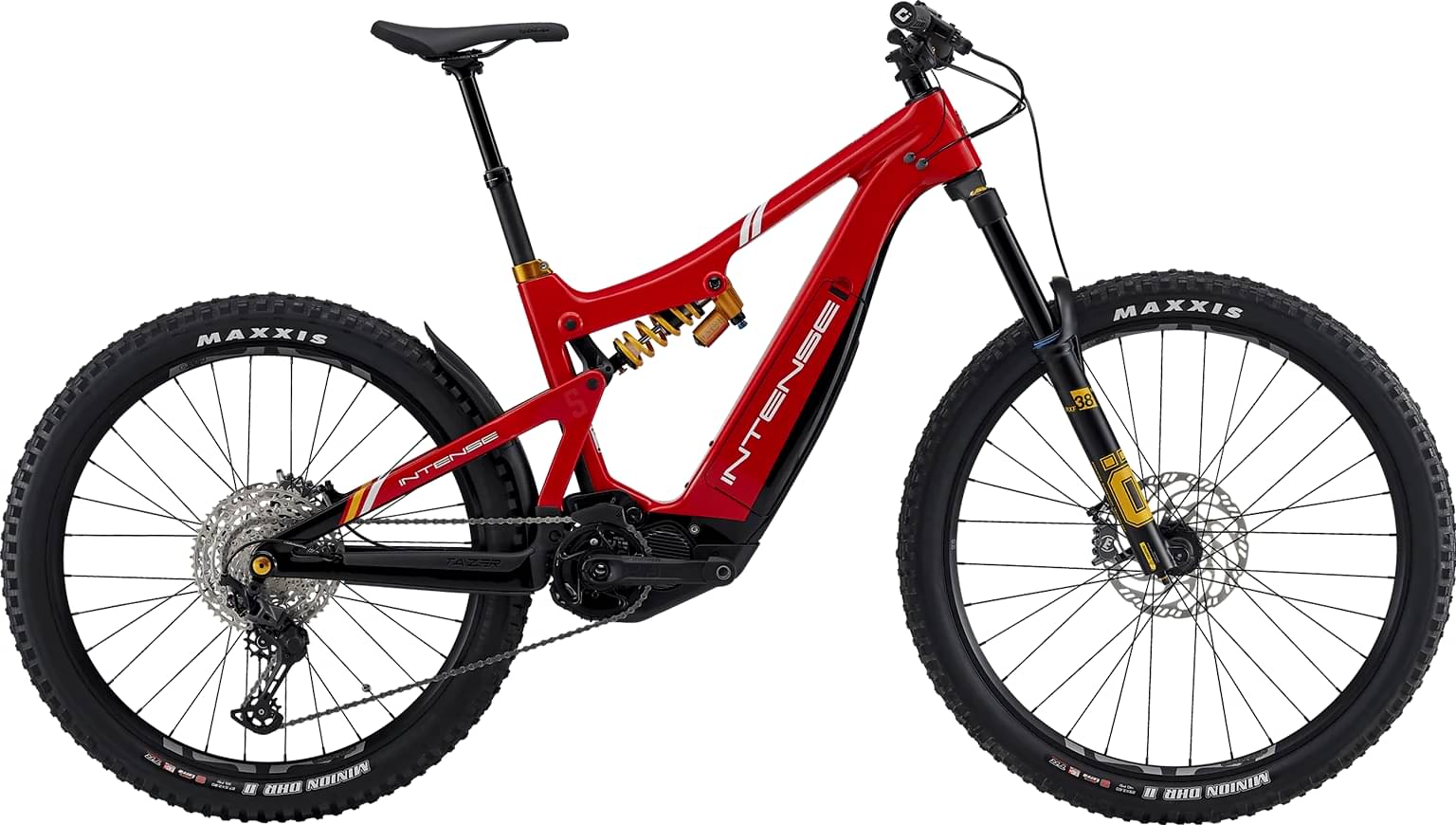

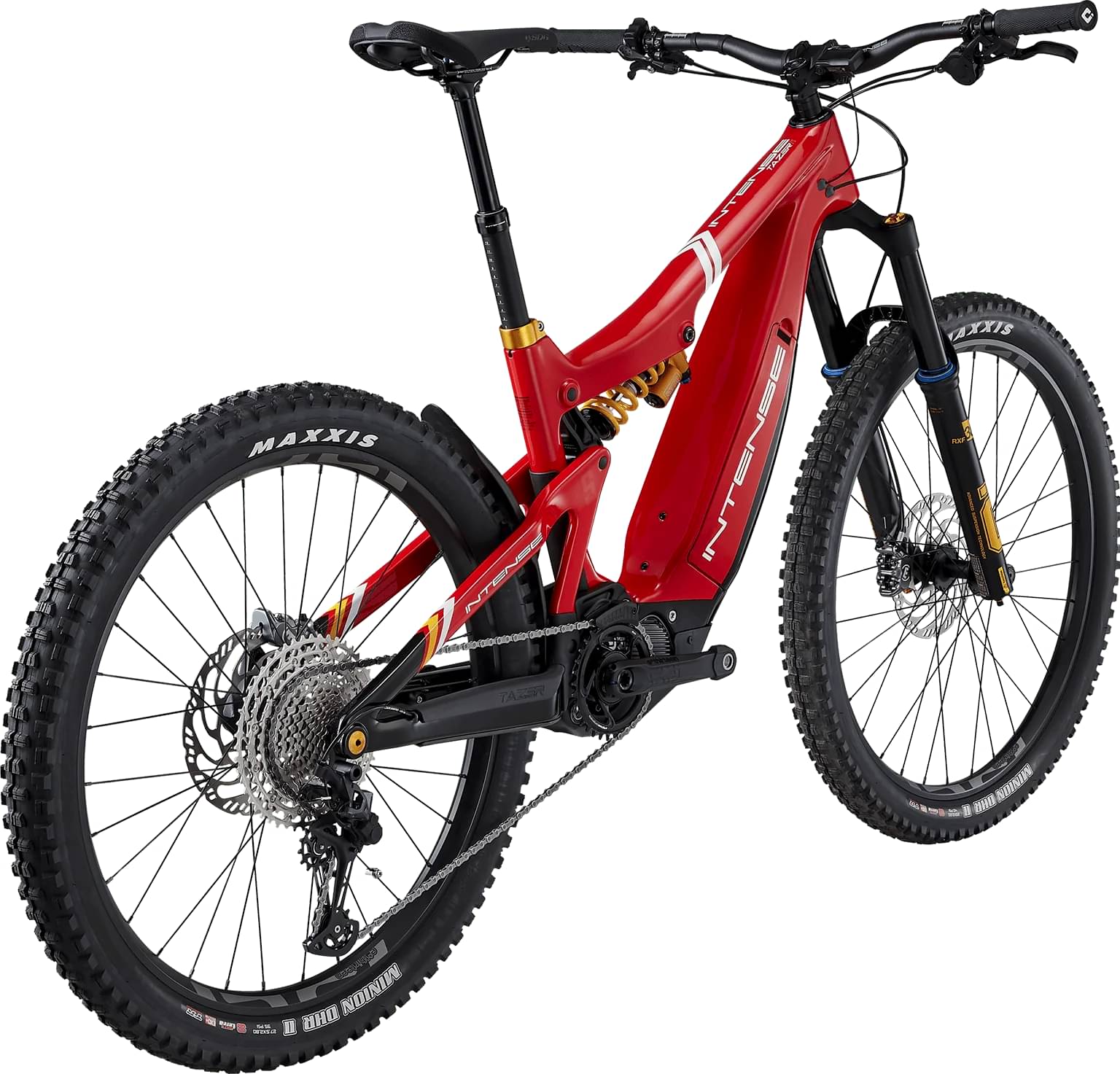

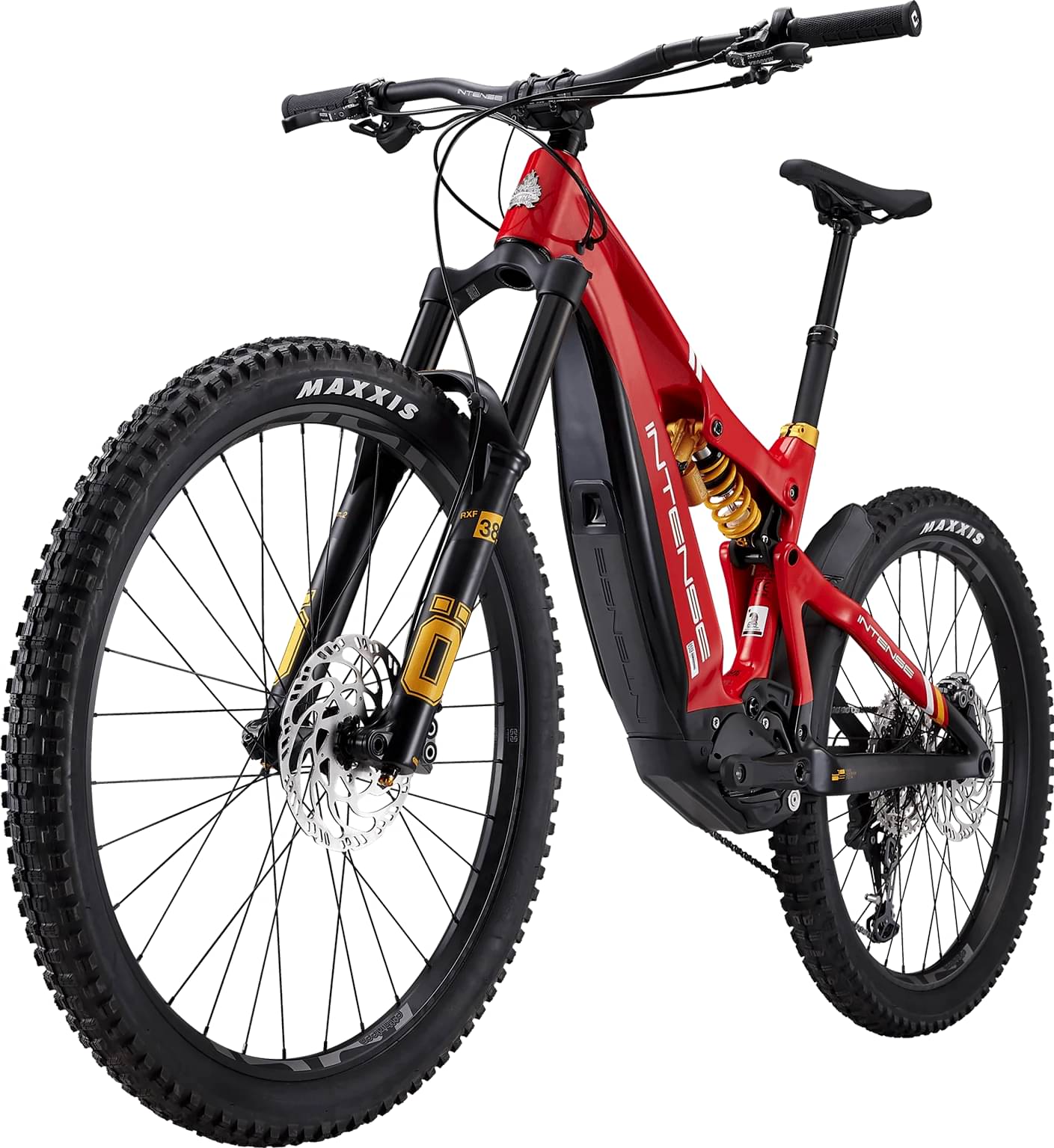

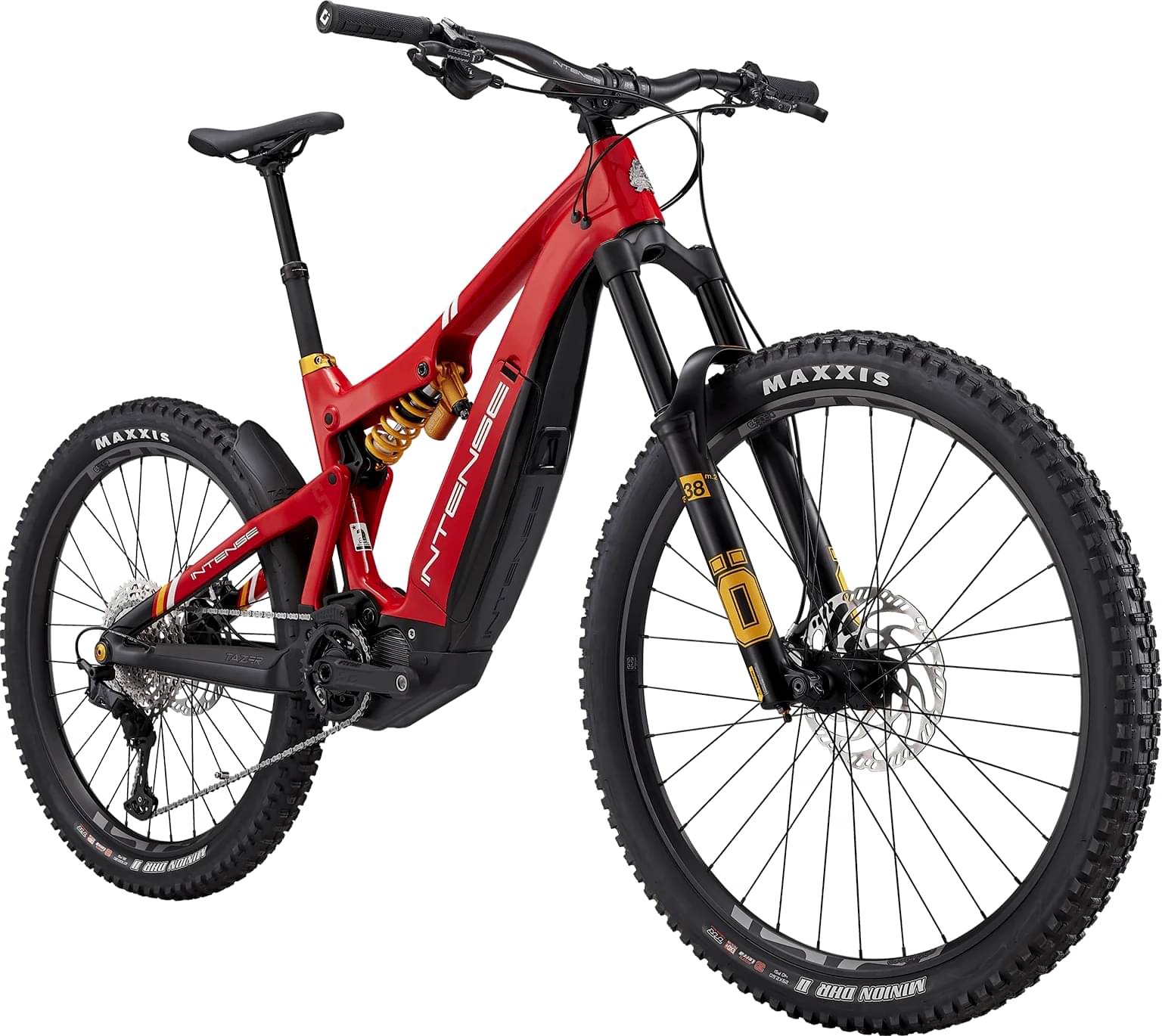

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork Öhlins RXF38
-
Groupset SLX, e*thirteen -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

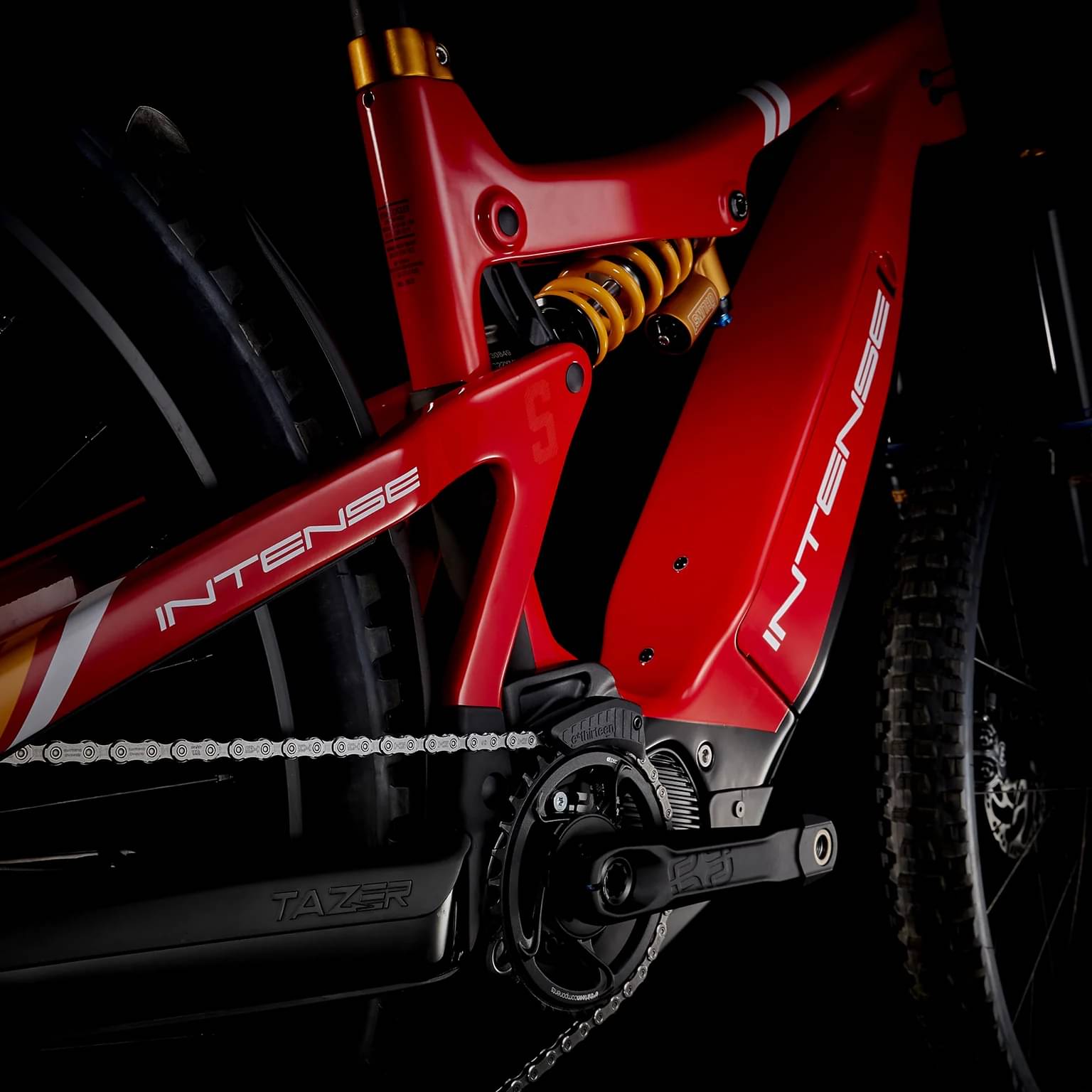

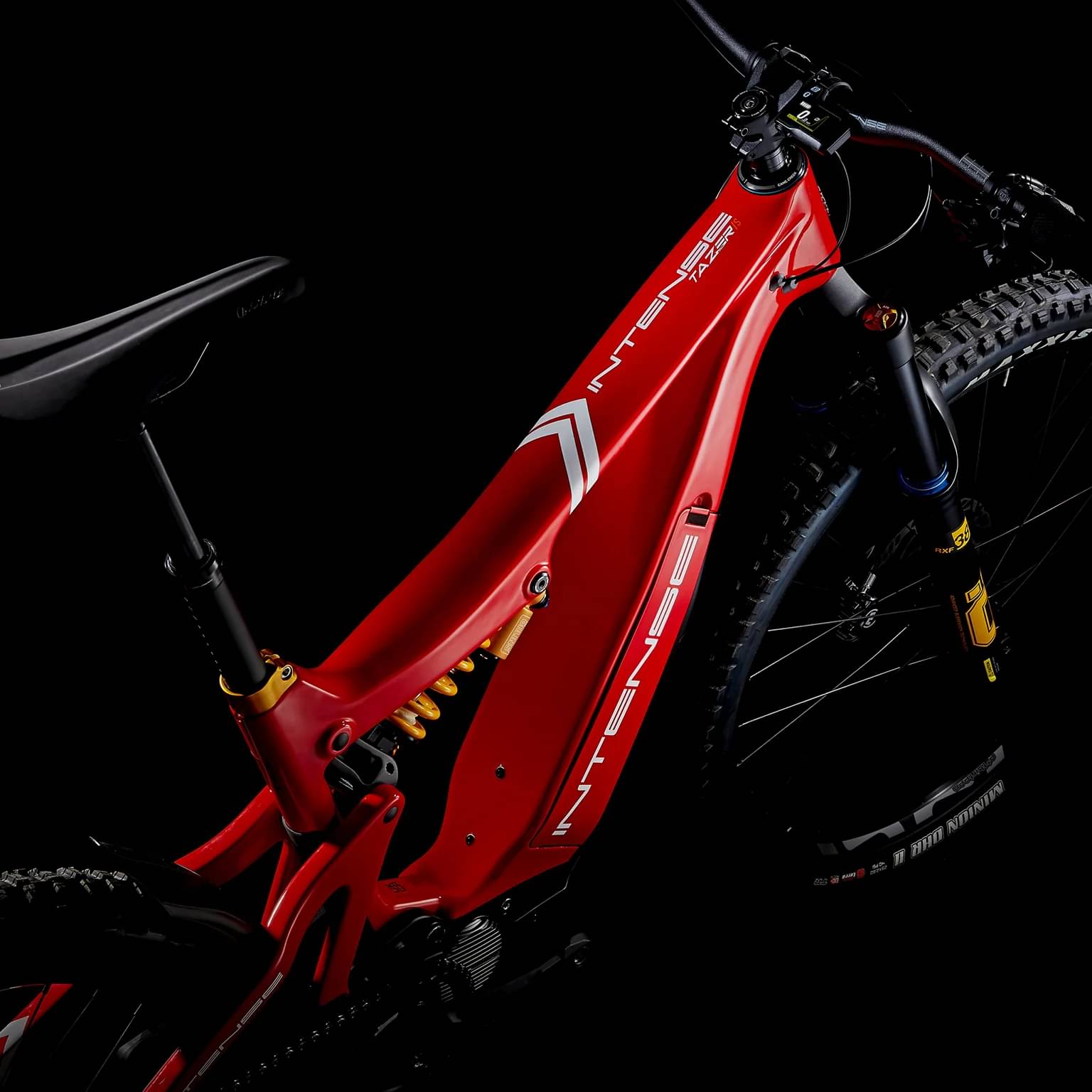

Frame
Frame
Tazer Performance E Monocoque carbon frame. Optimized layup carbon fiber. Alloy top link, internal shift, Dropper Post, Brake, Display unit routing, E*Spec Chainguide mount pattern, Flak guard armor, Integrated mud guard, 155mm Travel.
Suspension Fork
Öhlins RXF 38 M.2 Air TTX28 29"/44, 170mm of Travel
Rear Shock
Öhlins TTX22M Coil / 185mm x 55mm / 20mm x 8mm / 480 lbs (SM/MD) / 548 lbs (LG/XL)
Drivetrain
Rear Derailleur
Shimano SLX 12SP
Shift Levers
Shimano SLX 12SP, I-SPEC
Cassette
Shimano Deore 12SP, 10-51T
Crank
e*Thirteen e*Spec, 34 Tooth Chainring 165mm length
Chain
Shimano Deore 12SP
Wheels
Front Hub
INTENSE E-Specific Alloy Hubs
Rear Hub
INTENSE E-Specific Alloy Hubs
Rims
e*Thirteen E*Spec Alloy Rim 30mm Rim Width x 29" Front / 35mm Rim Width x 27.5" Rear
Tires
MAXXIS Minion DHR II MAXX Terra 3C Exo + - 29" x 2.60" Front, 27.5" x 2.80" Rear
Brakes
Brakes
Magura MT7 Pro, 4-Piston caliper - Front Rotor Magura Storm HC - 203mm 6-Bolt / Rear Rotor Magura Storm HC - 203mm 6-Bolt

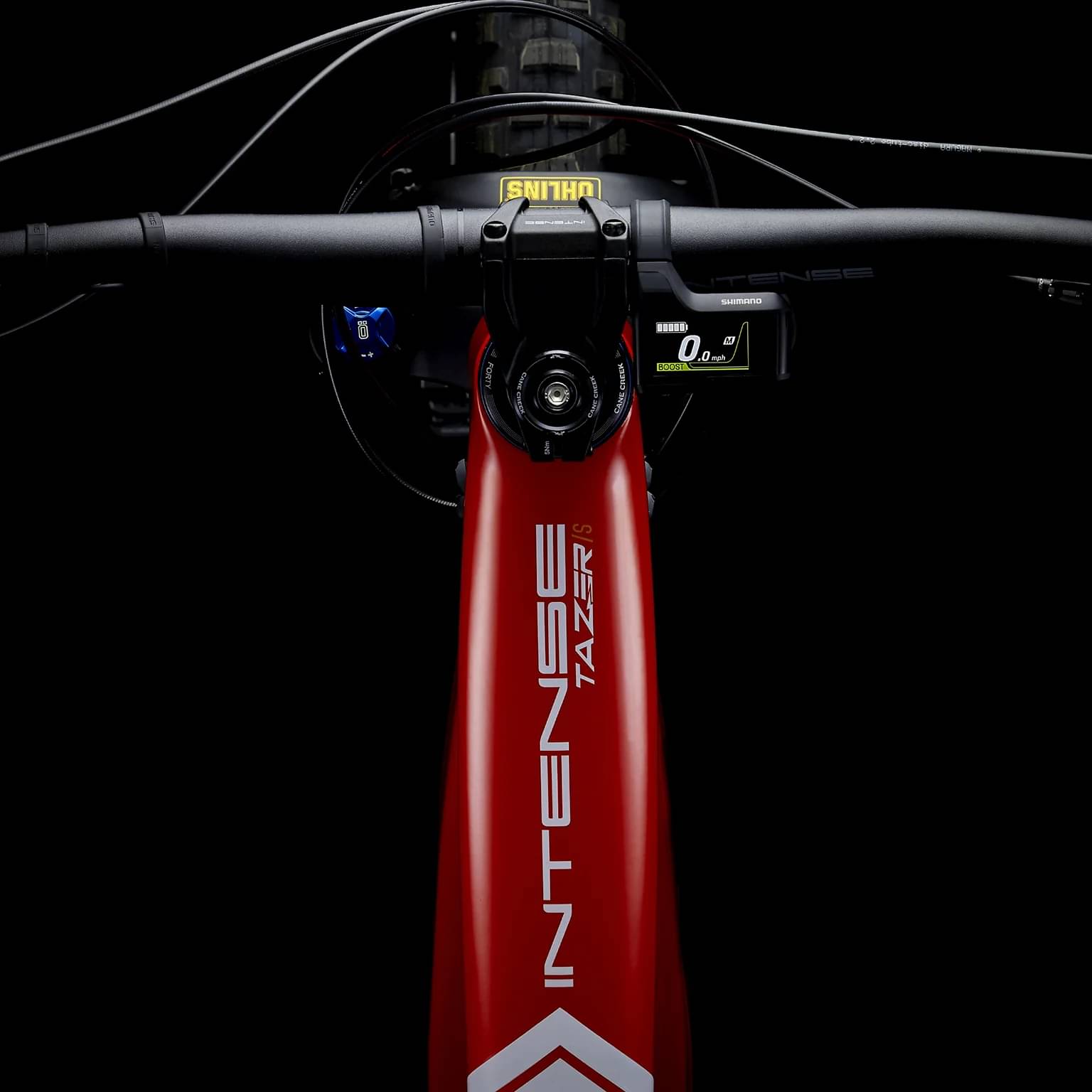

Cockpit
Stem
INTENSE 35mm, 45mm length
Handlebar
INTENSE Recon 35mm. 30mm Rise
Grips
ODI Elite Flow
Seat
Saddle
SDG BEL-AIR V3
Seatpost
INTENSE Recon Dropper (S/M 125mm, L/XL 150mm)
Motor & Battery
Motor
Shimano Steps EP800 25KM/H 85Nm Torque
Battery
BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | XL |
|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.34 mm |
| Bottom Bracket Height | 348 mm | 348 mm |
| Front Center | 782 mm | 835 mm |
| Rake | 44 mm | 44 mm |
| Trail | 139 mm | 139 mm |
| Stack | 636 mm | 648 mm |
| Reach | 437 mm | 483 mm |
| Top Tube Length | 611 mm | 666 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 419 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 125 mm |
| Chainstay Length | 452 mm | 452 mm |
| Wheelbase | 1235 mm | 1287 mm |
| Bottom Bracket Drop | 8 mm | 8 mm |
| Standover Height | 818 mm | 838 mm |
| Front Travel | 170 mm | 170 mm |
| Rear Travel | 155 mm | 155 mm |
| Wheels | 29" | 29" |
About this model
TAZER S belongs to the Intense E Tazer model. Intense released 19 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Intense Tazer Alloy Expert 2023 is the most affordable e-bike of this model and has a price of 6499$. On the other hand, Intense TAZER FOX 2023, is the most expensive and costs 7999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 7499$. If we compare this with the average Enduro e-bike cost we notice that the price is 56.72% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
TAZER S components

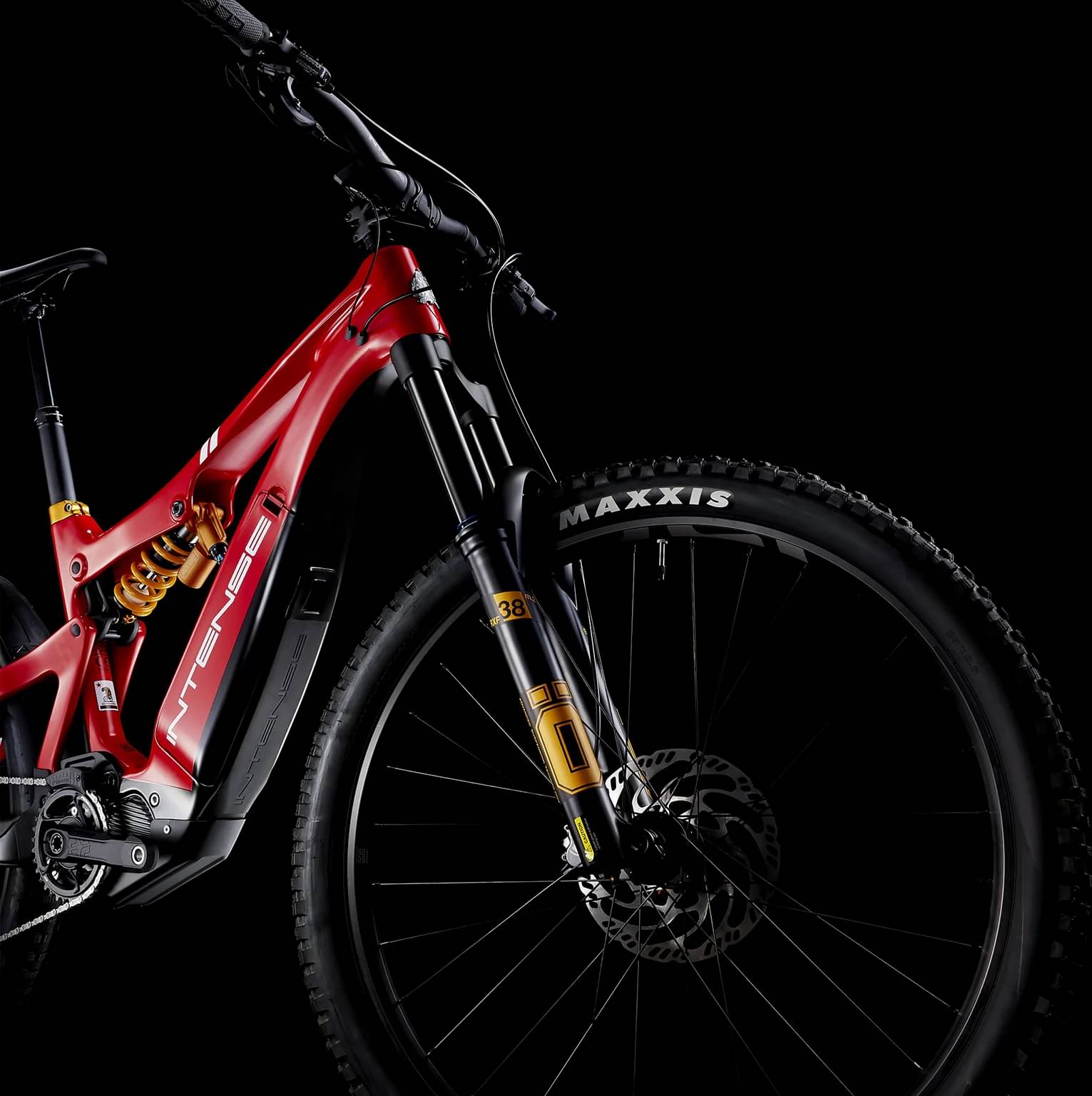

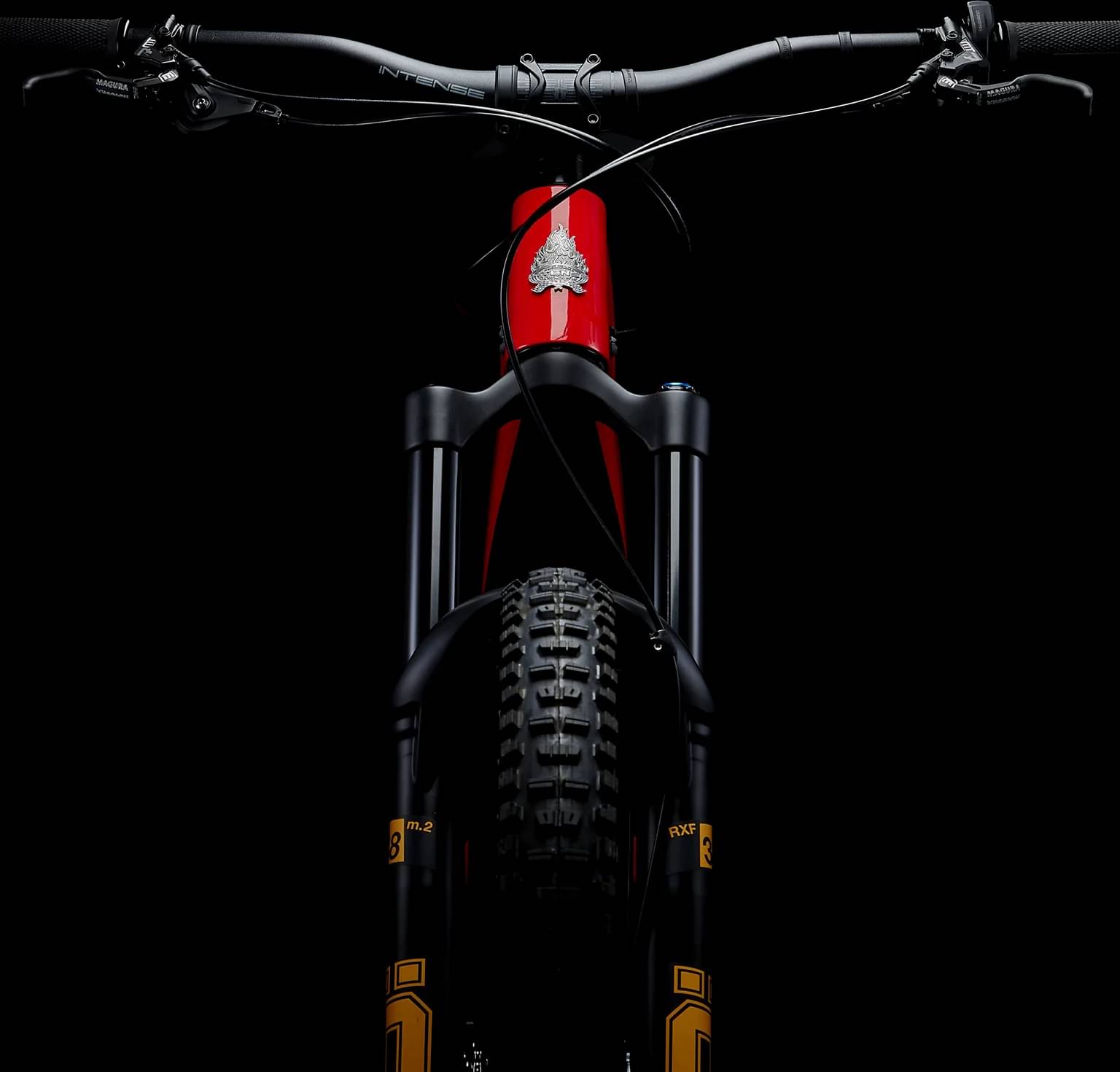

Fork
This e-bike has the Öhlins RXF38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The TAZER S has a rear shock with a travel of 155mm. The model Öhlins TTX22M Coil / 185mm x is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the TAZER S e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Intense TAZER S is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Intense TAZER S includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
