Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tracer 275 Monocoque UD Carbon Front and Rear Triangle, Carbon Top Link, Internal Cable Routing, Integrated Protectors, w/ BOOST 148 x12 mm Spacing, 165 mm travel
Rear Shock
Fox Factory Float X2, 2 Pos-Adj, 216x63mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm | 1.27 mm |
| Stack | 585 mm | 596 mm | 600 mm | 610 mm |
| Reach | 410 mm | 432 mm | 456 mm | 479 mm |
| Top Tube Length | 567 mm | 593 mm | 618 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 396 mm | 434 mm | 459 mm | 485 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 102 mm | 115 mm | 119 mm | 130 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1150 mm | 1177 mm | 1203 mm | 1231 mm |
| Bottom Bracket Drop | -8357 mm | -8357 mm | -8357 mm | -8357 mm |
| Standover Height | 791 mm | 797 mm | 801 mm | 809 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

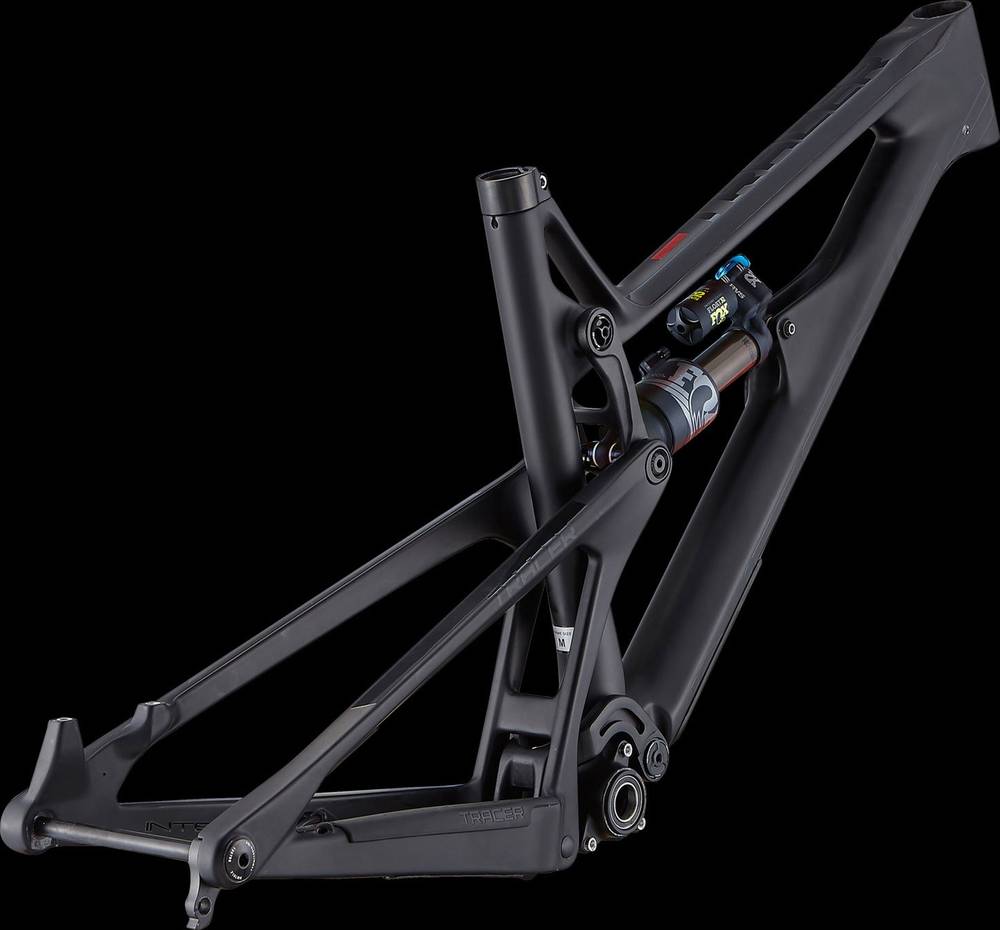

TRACER NM FRAME is an Intense Tracer model. Intense launched 31 frames of this model so far. You can easily view all of the Intense Tracer frames models from 2018, here.
Model range prices
The most economical model, the Intense TRACER NM FRAME 2018 has a starting price of 2299$. Intense TRACER SL FRAME 2018 on the other hand is the most expensive at 2499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2018 and its price was 2299$. If we compare this with the average Enduro frame cost we notice that the price is 21.32% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
TRACER NM FRAME components
Rear Shock
As for the rear shock, this frame has the Fox Factory Float X2 model, with a travel of 165mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
