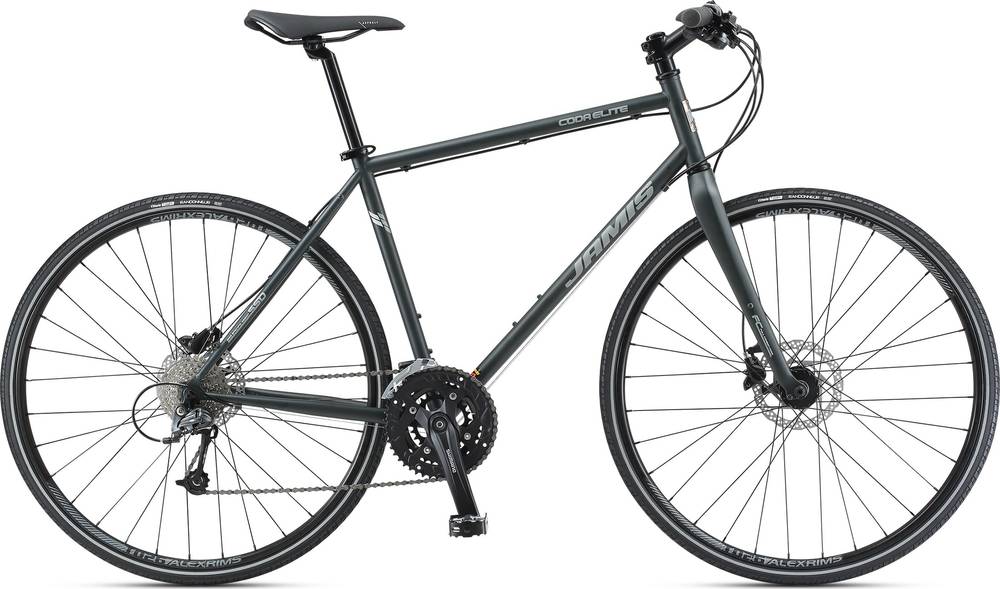

Jamis CODA ELITE 2019
2019 Urban
Estimate price |
979$
Weight | 11.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, Alivio -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Disc Brake Reynolds 520 double-butted chromoly main tubes, extended head tube with reinforced collars, double tapered cromo stays, forged dropouts and fender/rack eyelets
Suspension Fork
Jamis full carbon composite with carbon steerer, disc brake post mounts, low-rider carrier mounts and carbon drop out with stainless steel tabs and fender eyelets
Drivetrain
Rear Derailleur
Shimano Deore M591 SGS
Front Derailleur
Alivio FD-T4000 bottom-pull
Shift Levers
Shimano Alivio RapidFire Plus SL-M4000, 27-speed
Cassette
Shimano 9-speed, 11-32T
Crank
Shimano FC-T4010 triple, 48/36/26T, 170mm (15-17”), 175mm (19-23”)
Bottom Bracket
Shimano BB-ES300, 68 x 122.5mm
Chain
Shimano
Pedals
Full alloy platform, toe clip attachable
Wheels
Rims
Alex TD-26 double wall disc specific alloy rims, 32H, Shimano M475 6-bolt disc hubs with QR and 14g stainless steel spokes.
Tires
Vittoria Randonneur with Double Shielding puncture protection and reflective sidewalls, 700 x 32c
Brakes
Brakes
Shimano BL-MT200 hydraulic disc brakes with Shimano 160mm rotors and brake levers with reach adjust
Cockpit
Stem
Jamis Road 3D forged alloy, 25.4 x 17? x 90mm (15-17”), 101mm (19-23”)
Handlebar
Jamis Flat bar, 6061 T-6 aluminum, 25.4 x 10? sweep x 580mm (15-17") 600mm (19-23")
Grips
Anatomic double density kraton
Headset
Threadless, 1 1/8”
Seat
Saddle
Selle Royal Asphalt with integrated clip system
Seatpost
Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp with QR seatpin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.49 mm | 1.54 mm | 1.58 mm |
| Front Center | 599 mm | 612 mm | 623 mm | 625 mm | 637 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 63 mm | 63 mm | 63 mm | 57 mm | 57 mm |
| Stack | 543 mm | 567 mm | 589 mm | 614 mm | 637 mm |
| Reach | 385 mm | 390 mm | 394 mm | 399 mm | 404 mm |
| Top Tube Length | 552 mm | 564 mm | 575 mm | 587 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 109 mm | 134 mm | 160 mm | 182 mm | 206 mm |
| Chainstay Length | 428 mm | 433 mm | 433 mm | 438 mm | 438 mm |
| Wheelbase | 1020 mm | 1038 mm | 1050 mm | 1057 mm | 1069 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 728 mm | 760 mm | 800 mm | 838 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
CODA ELITE belongs to the Jamis Coda model. Jamis launched 32 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Jamis CODA STEP-OVER 2019 is the most economical model, with a starting price of 429$. Jamis CODA ELITE 2019 on the other hand costs 979$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 979$. Comparing this to the average Fitness bike price, we see that the price is 49.24% more expensive.
Average weight for Fitness bikes
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Jamis CODA ELITE it’s weighing 11.79 kg (25.99 lbs). At this weight, is slightly heavier than average. In other words, this model is 4.89% heavier than the average Fitness bike.
Overview of components
Fork material
CODA ELITE has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the CODA ELITE model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CODA ELITE comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
