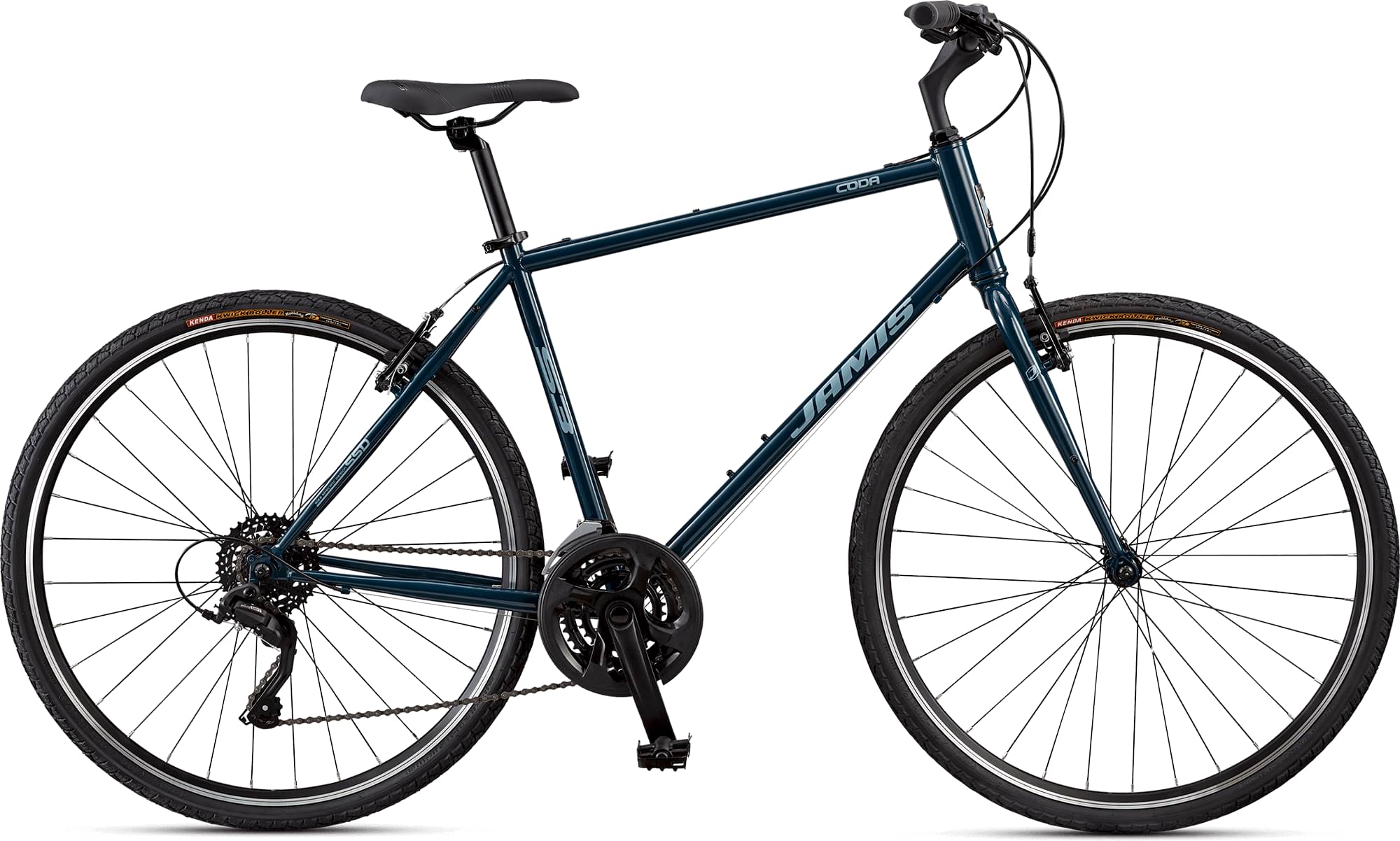

Jamis CODA S3 2023
2023 Urban
Estimate price |
569$
Weight | 12.36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Double-butted chromoly frame, 48mm extended head tube with reinforced collars, double tapered chromoly stays, kickstand mount, forged dropouts and fender/rack eyelets
Suspension Fork
Steel tapered straight blade unicrown with bulge butted steerer and 50mmm crown, low-rider carry mounts and forged dropouts with 2 fender eyelets
Drivetrain
Rear Derailleur
Shimano Tourney TY300
Front Derailleur
TY510
Shift Levers
Shimano EZ-Fire Plus ST-EF500 shifters, 21-speed
Cassette
Shimano HG200 7-speed, 12-32T
Crank
Forged alloy, 48/38/28T, 170mm with chain guard
Bottom Bracket
VP sealed cartridge, 68 x 122.5mm
Chain
KMC Z51
Pedals
Platform style, steel cage/resin body, toe clip attachable
Wheels
Rims
Double wall alloy rims, 32H, alloy hubs with QR and 14g black electroplated spokes
Tires
Kenda Eurotrek K-197, 700 x 40c
Brakes
Brakes
Promax TX-121 alloy linear-pull brakes with front power modulator and Shimano brake levers
Cockpit
Stem
Jamis alloy hi-rise, quill type, 25.4 x 80mm extension x 35 ? x 150mm (15/17”), 180mm (19/21/23”)
Handlebar
Jamis Riser bar, aluminum, 25.4 x 10 ? sweep x 40mm rise x 600mm (15-17”) 620mm (19-23”)
Grips
Anatomic double density kraton
Headset
Threaded internal, 1 1/8”
Seat
Saddle
NEW Jamis Touring with SL cover
Seatpost
Jamis alloy micro-adjust, 27.2 x 350mm alloy clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 15" | 17" | 16" | 18" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.39 mm | 1.43 mm | 1.34 mm | 1.47 mm | 1.44 mm | 1.5 mm | 1.56 mm |
| Front Center | 617 mm | 614 mm | 617 mm | 628 mm | 640 mm | 638 mm | 634 mm | 639 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 50 mm | 61 mm | 67 mm | 33 mm | 61 mm | 54 mm | 54 mm |
| Stack | 540 mm | 552 mm | 576 mm | 553 mm | 566 mm | 599 mm | 623 mm | 646 mm |
| Reach | 404 mm | 396 mm | 403 mm | 412 mm | 385 mm | 415 mm | 415 mm | 413 mm |
| Top Tube Length | 571 mm | 572 mm | 577 mm | 579 mm | 590 mm | 596 mm | 603 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 381 mm | 432 mm | 406 mm | 457 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 71 ° | 71 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 104 mm | 113 mm | 138 mm | 118 mm | 131 mm | 165 mm | 186 mm | 210 mm |
| Chainstay Length | 437 mm | 437 mm | 442 mm | 437 mm | 442 mm | 442 mm | 447 mm | 447 mm |
| Wheelbase | 1047 mm | 1044 mm | 1053 mm | 1059 mm | 1076 mm | 1074 mm | 1075 mm | 1080 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm | 57 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 629 mm | 737 mm | 768 mm | 644 mm | 648 mm | 809 mm | 846 mm | 877 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
CODA S3 belongs to the Jamis Coda model. Jamis launched 32 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Jamis CODA S3 Step-Over Frame 2023 is the most affordable bike of this model and has a price of 569$. On the other hand, Jamis CODA S1 2023, is the most expensive and costs 1049$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Urban bikes average price
Our math shows that the average cost of a dependable General Urban bike is 499$. However, you could also get a good General Urban bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Jamis CODA S3 price was 569$. In conclusion, this bike price is 14.03% higher than the price of the average General Urban bike.
General Urban bikes average weight
General Urban bikes weigh an average of 13.11 kg (28.9 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.36 kg (27.25 lbs), the CODA S3 model is a bit lighter than average. In short, the average General Urban bike weight is 6.07% higher than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The CODA S3 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Jamis CODA S3 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
