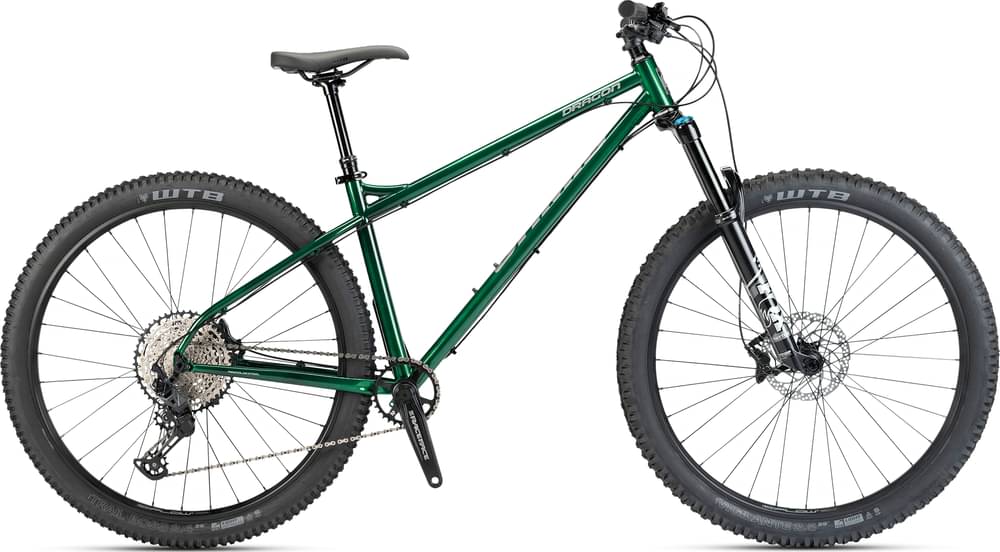

Jamis DRAGON 29 2021
2021 Mountain
Estimate price |
2,499$
Weight | 14.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 140mm -
Fork Fox Rhythm Float 34
-
Groupset SLX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 steel, 44mm head tube, 31.6 I.D. seat tube, internal dropper post routing, ISCG05, 12x148mm thru-axle dropouts
Suspension Fork
Fox 34 Rhythm Series Float 29” w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel, 51mm rake.
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano SLX, 1×12-speed
Cassette
Shimano M7100, 12-speed, 10-51T
Crank
Race Face Ride, 32T
Bottom Bracket
Race Face BSA
Chain
KMC X12, 12-speed
Pedals
N/A
Wheels
Rims
Stan’s No Tubes Flow D 29” rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes
Tires
WTB Vigilante 29 x 2.5” Front & Trail Boss 29 x 2.4” Rear, TCS Tubeless
Brakes
Brakes
Shimano MT420 4-piston hydraulic disc, 180mm RT30 rotors
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35 x 760mm
Grips
Jamis Lock-On
Headset
FSA Orbit, Alloy cups
Seat
Saddle
WTB Volt
Seatpost
KS Rage Dropper, Southpaw remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 765 mm | 791 mm | 810 mm | 846 mm |
| Rake | 51 mm | 50 mm | 43 mm | 51 mm |
| Trail | 118 mm | 119 mm | 127 mm | 118 mm |
| Stack | 629 mm | 638 mm | 646 mm | 656 mm |
| Reach | 438 mm | 461 mm | 484 mm | 507 mm |
| Top Tube Length | 595 mm | 620 mm | 646 mm | 671 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1191 mm | 1218 mm | 1237 mm | 1273 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 773 mm | 786 mm | 790 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
DRAGON 29 is a Jamis Dragon model. Jamis launched 4 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Jamis DRAGON | 29 2021 has a starting price of 2099$. Jamis DRAGON 29 2021 on the other hand is the most expensive at 2499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. Comparing this to the average Trail bike price, we see that the price is 10.52% lower.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
DRAGON 29 weighs 14.51 kg (31.99 lbs) and is considerably heavier than the average. In conclusion, the average Trail bike weighs 11.79% less than DRAGON 29.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on DRAGON 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Jamis DRAGON 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Jamis DRAGON 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Jamis DRAGON 29 includes a dropper post. Therefore, climbing or descending will be a breeze.
