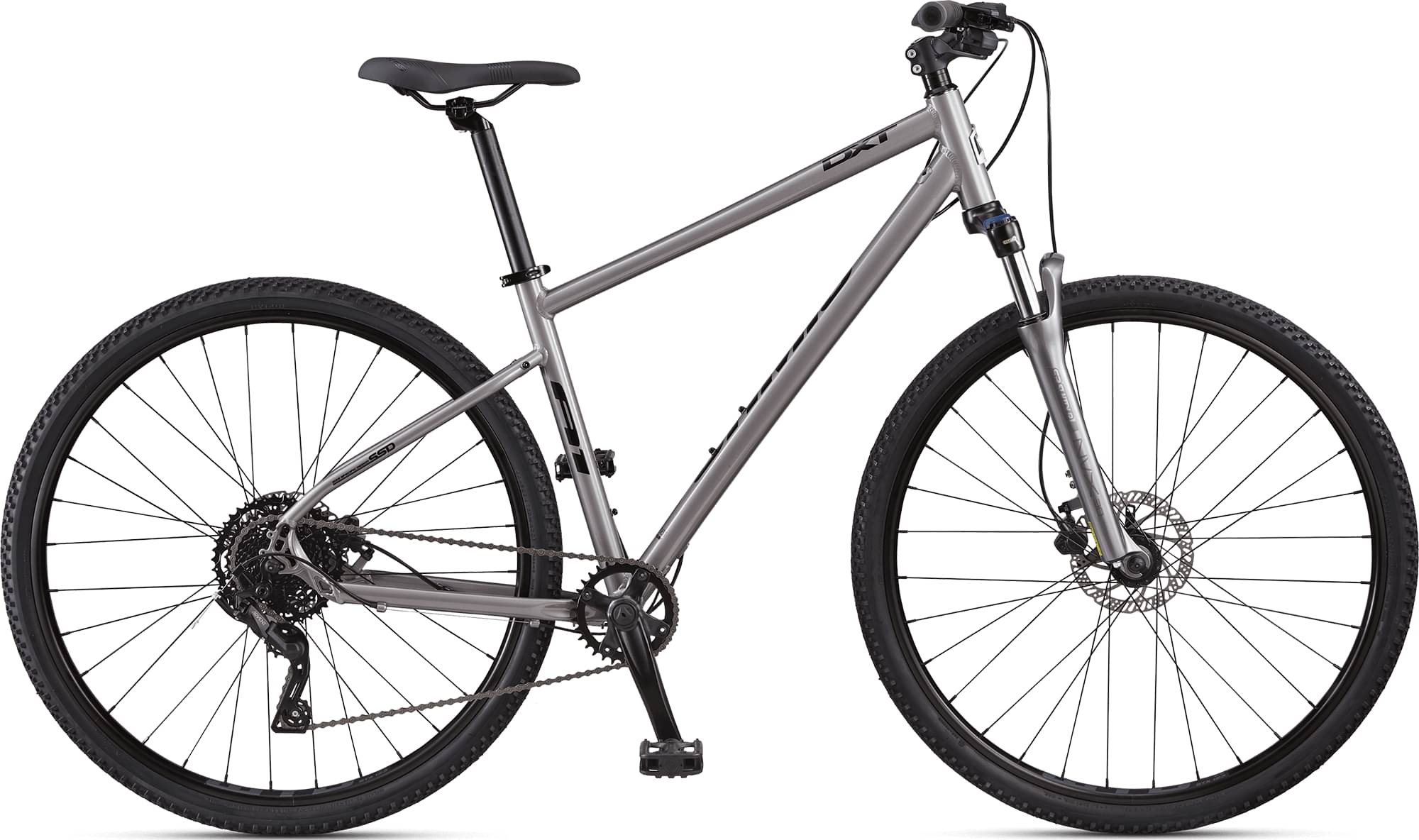

Jamis DXT A1 2022
2022 Urban
Estimate price |
979$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Triple-butted 6061 aluminum with fast back rear triangle, 1 1/8” head tube, internal cable routing, oval chain stays with post mount disc brake with kickstand mount, 34.9mm seat tube, replaceable derailleur hanger and fender/rack eyelets.
Suspension Fork
SR/Suntour NVX HLO, aluminum lowers, coil spring, 28mm stanchions, 1-1/8” steerer, aluminum crown, hydraulic lock out, 75mm travel
Drivetrain
Rear Derailleur
MicroShift Advent Active Motion RD+ with clutch real deraillier
Shift Levers
MicroShift Advent Xpress shifter with bearing, 9-speed
Cassette
MicroShift 11-42T
Crank
SAMOX Alloy forged crank with 32T steel chainring(BCD104). 170mm (15-17”), 175mm (19-23”)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z9
Pedals
Full alloy platform, toe clip attachable
Wheels
Rims
WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec disc hubs and 14g stainless steel spokes
Tires
CST Dual Sport Tire, 700 x 42c
Brakes
Brakes
Tektro HD-M275/276 hydraulic disc brakes with 160mm rotors and Tektro brake levers. 15” M276 (83mm reach); 17- 23” M275 (88mm reach)
Cockpit
Stem
Jamis Trekking, 3D forged alloy, 10 ? rise, 90mm (15-17”), 105mm (19/21/23”)
Handlebar
Jamis Riser bar, 6061 double-butted aluminum, 31.8 x 20mm rise x 10 ? sweep x 640mm (15”), 660mm (17-23”)
Grips
Anatomic double density kraton grip with gel
Headset
FSA Internal cup, threadless 1 1/8”
Seat
Saddle
Selle Royal Vivo ERGO
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.62 mm | 1.62 mm | 1.63 mm | 1.63 mm |
| Front Center | 638 mm | 649 mm | 660 mm | 669 mm | 679 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 88 mm | 86 mm | 86 mm | 88 mm | 88 mm |
| Stack | 634 mm | 646 mm | 658 mm | 669 mm | 680 mm |
| Reach | 393 mm | 399 mm | 405 mm | 411 mm | 417 mm |
| Top Tube Length | 581 mm | 591 mm | 601 mm | 610 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 127 mm | 140 mm | 155 mm | 167 mm | 179 mm |
| Chainstay Length | 438 mm | 438 mm | 443 mm | 443 mm | 448 mm |
| Wheelbase | 1069 mm | 1080 mm | 1097 mm | 1106 mm | 1121 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 746 mm | 782 mm | 809 mm | 846 mm | 881 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
DXT A1 completes the Jamis Dxt model. Jamis released 33 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Jamis DXT A3 Step-Over Frame 2022 is the most economical model, with a starting price of 699$. Jamis DXT A1 2022 on the other hand costs 979$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Jamis released this model in 2022, its price was 979$. If we compare this with the average Fitness bike cost we notice that the price is 49.24% more expensive.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, DXT A1 has a weight of 13.61 kg (30 lbs). In short, the average Fitness bike weight is 21.09% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
DXT A1 components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
DXT A1 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, Jamis DXT A1 2022, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DXT A1 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
