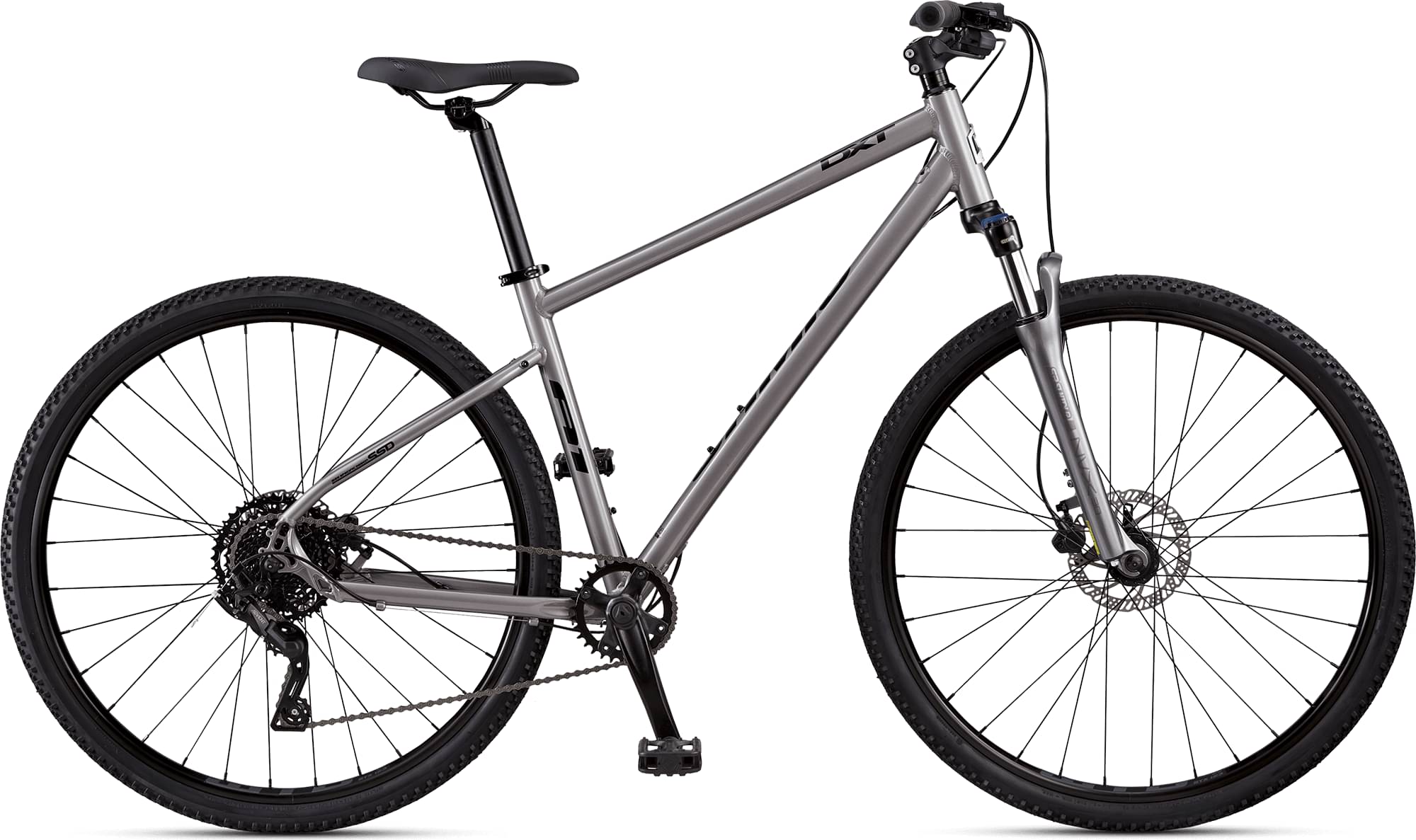

Jamis DXT A1 2023
2023 Urban
Estimate price |
979$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork Suntour NVX
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Size Specific Design Triple-butted 6061 aluminum with fast back rear triangle, 1 1/8” head tube, internal cable routing, oval chain stays with post mount disc brake with kickstand mount, 34.9mm seat tube, replaceable derailleur hanger and fender/rack eyelets.
Suspension Fork
SR/Suntour NVX HLO, aluminum lowers, coil spring, 28mm stanchions, 1-1/8” steerer, aluminum crown, hydraulic lock out, 75mm travel
Drivetrain
Rear Derailleur
MicroShift Advent Active Motion RD+ with clutch real deraillier
Shift Levers
MicroShift Advent Xpress shifter with bearing, 9-speed
Cassette
MicroShift 11-42T
Crank
SAMOX Alloy forged crank with 32T steel chainring(BCD104). 170mm (15-17”), 175mm (19-23”)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z9
Pedals
Full alloy platform, toe clip attachable
Wheels
Rims
WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec disc hubs and 14g stainless steel spokes
Tires
CST Dual Sport Tire, 700 x 42c
Brakes
Brakes
Tektro HD-M275/276 hydraulic disc brakes with 160mm rotors and Tektro brake levers. 15” M276 (83mm reach); 17- 23” M275 (88mm reach)
Cockpit
Stem
Jamis Trekking, 3D forged alloy, 10 ? rise, 90mm (15-17”), 105mm (19/21/23”)
Handlebar
Jamis Riser bar, 6061 double-butted aluminum, 31.8 x 20mm rise x 10 ? sweep x 640mm (15”), 660mm (17-23”)
Grips
Anatomic double density kraton grip with gel
Headset
FSA Internal cup, threadless 1 1/8”
Seat
Saddle
Selle Royal Vivo ERGO
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.62 mm | 1.62 mm | 1.63 mm | 1.63 mm |
| Front Center | 638 mm | 649 mm | 660 mm | 669 mm | 679 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 88 mm | 86 mm | 86 mm | 88 mm | 88 mm |
| Stack | 634 mm | 646 mm | 658 mm | 669 mm | 680 mm |
| Reach | 393 mm | 399 mm | 405 mm | 411 mm | 417 mm |
| Top Tube Length | 581 mm | 591 mm | 601 mm | 610 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 127 mm | 140 mm | 155 mm | 167 mm | 179 mm |
| Chainstay Length | 438 mm | 438 mm | 443 mm | 443 mm | 448 mm |
| Wheelbase | 1069 mm | 1080 mm | 1097 mm | 1106 mm | 1121 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 746 mm | 782 mm | 809 mm | 846 mm | 881 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
DXT A1 is a Jamis Dxt model. 33 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Jamis DXT A3 Step-Over Frame 2023 has a starting price of 699$. Jamis DXT A1 2023 on the other hand is the most expensive at 979$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 979$. Comparing this to the average Fitness bike price, we see that the price is 49.24% more expensive.
Fitness bikes average weight
If we make a quick analysis of the average weight of a Fitness bike, we get 11.47 kg (25.29 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Jamis DXT A1 it’s weighing 13.61 kg (30 lbs). At this weight, is much heavier than average. In conclusion, the average Fitness bike weighs 18.66% less than DXT A1.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
DXT A1 components
Fork
The DXT A1 comes factory-installed with the Suntour NVX fork. This has a travel range of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
DXT A1 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When it comes to wheels, the DXT A1 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The DXT A1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
