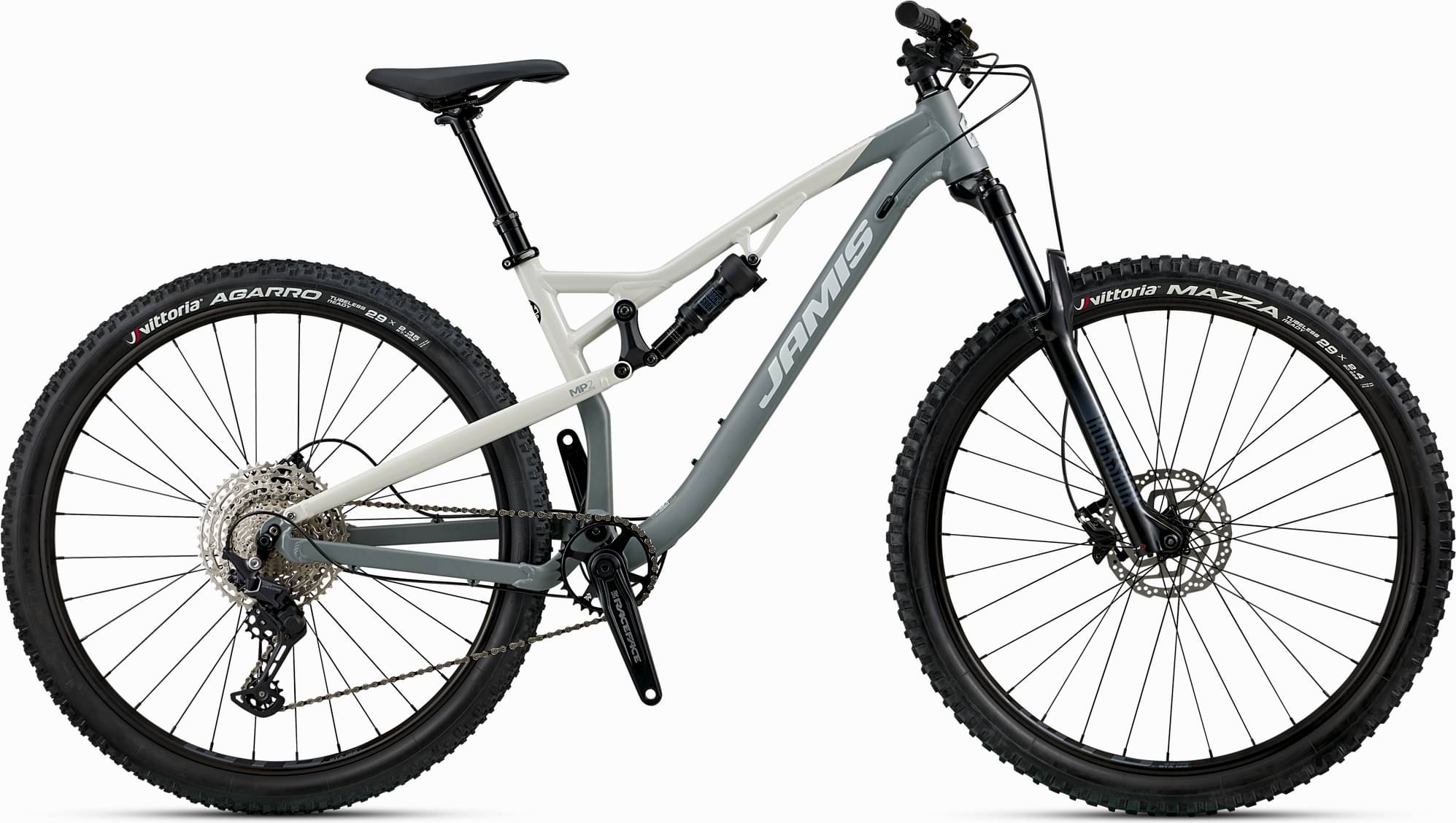

Jamis FAULTLINE A2 2024
2024 Mountain
Estimate price |
1,999$
Weight | 15.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select R air shock with rebound adjust, replaceable derailleur hanger
Suspension Fork
Rock Shox Recon Silver RL 29”, Solo Air compression, lever actuated lockout, external rebound, 32mm steel stanchions, magnesium lowers, 15x110mm axle, 130mm travel, 51mm rake
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus, 11-speed
Shift Levers
Shimano Deore, 1×11-speed
Cassette
Shimano M5100, 11-speed, 11-51T
Crank
Shimano Deore, 32T
Bottom Bracket
Shimano BSA
Chain
KMC X11, 11-speed
Pedals
N/A
Wheels
Rims
WTB STX i25 TCS 29” tubeless rims, 32H, Shimano MT400 15x110mm front & 12x148mm rear hubs, stainless spokes
Tires
WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless
Brakes
Brakes
Shimano MT200 hydraulic disc, 180mm front & 160mm rear RT10 rotors
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35 x 760mm
Grips
Jamis Lock-On
Headset
FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
Exaform 900i by KS Dropper, Westy remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.472 mm | 1.418 mm | 1.37 mm | 1.323 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 710 mm | 736 mm | 762 mm | 789 mm |
| Rake | 52 mm | 50 mm | 51 mm | 51 mm |
| Trail | 99 mm | 101 mm | 100 mm | 100 mm |
| Stack | 611 mm | 621 mm | 630 mm | 639 mm |
| Reach | 415 mm | 438 mm | 460 mm | 483 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1153 mm | 1179 mm | 1205 mm | 1232 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 713 mm | 739 mm | 725 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
FAULTLINE A2 is a Jamis Faultline model. Jamis released 10 bikes variations of this model so far. You can easily view all of the Jamis Faultline bikes models from 2024, here.
Model range prices
Jamis FAULTLINE A2 2024 is the most economical model, with a starting price of 1999$. Jamis FAULTLINE A1 2024 on the other hand costs 2599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1999$. Comparing the average cost of a Trail bike to this one, you will see that FAULTLINE A2 price is 38.17% smaller.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 15.42 kg (34 lbs), Jamis bike is much heavier than average. In short, the average Trail bike weight is 18.8% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The FAULTLINE A2 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on FAULTLINE A2 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The FAULTLINE A2 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Jamis FAULTLINE A2 comes with a dropper post. Therefore, climbing or descending will be a breeze.
