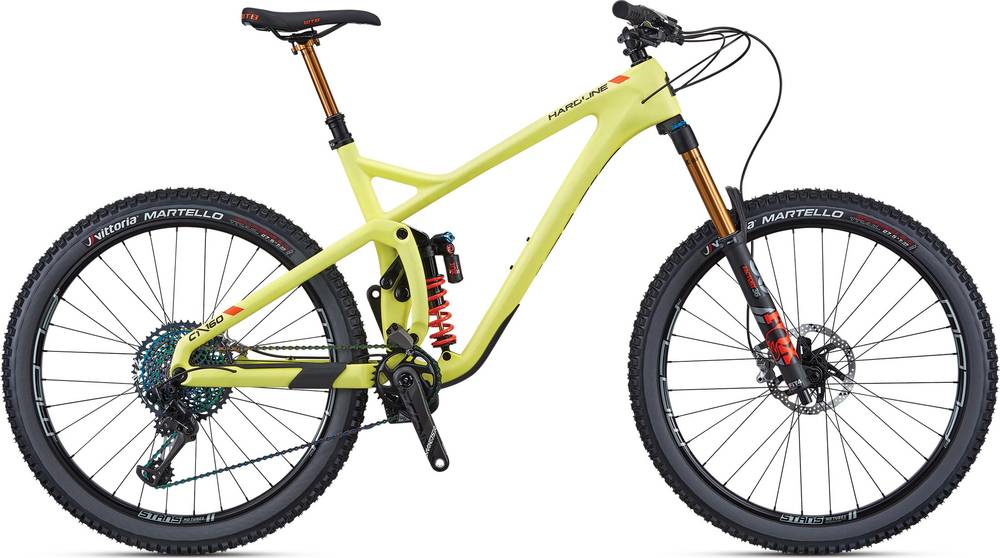

Jamis HARDLINE C1 2020
2020 Mountain
Estimate price |
8,499$
Weight | 14.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dyad Pro High Modulus Carbon Fiber, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 - 1 1/8” tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide, MRP SXg lower chainguide, Fox DHX2 Factory Series coil shock w/2-position compression switch, SLS 400lb Spring, high/low speed compression, high/low speed rebound,10mm hardware, replaceable derailleur hanger
Suspension Fork
Fox Factory 36 Float 27.5" w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 170mm travel
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Shift Levers
SRAM XX1 Eagle, 1x12-speed
Cassette
SRAM XG1299, 12-speed, 10-50T
Crank
Truvativ Descendant Carbon, 32T
Bottom Bracket
SRAM DUB
Chain
SRAM XX1 Eagle, 12-speed
Pedals
N/A
Wheels
Rims
Stans Flow CB7 Carbon 27.5" tubeless wheels, 15x110mm axle front and 12x148mm rear NEO hubs, Sapim Race spokes
Tires
Vittoria Martello 27.5 x 2.35", TNT tubeless
Brakes
Brakes
TRP G-Spec DH 4-piston hydraulic disc, TR-33 180mm front & rear 6-bolt rotors
Cockpit
Stem
Race Face Turbine R, 50mm extension, 35mm clamp diameter
Handlebar
Race Face Turbine R, 780mm x 20mm rise, 35mm diameter
Grips
Jamis Lock-On
Headset
FSA Orbit IS Integrated, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
Fox Transfer Dropper, 1x remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.355 mm | 1.31 mm | 1.272 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 753 mm | 779 mm | 804 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 113 mm | 113 mm | 113 mm | 113 mm |
| Stack | 585 mm | 595 mm | 604 mm | 613 mm |
| Reach | 418 mm | 439 mm | 461 mm | 482 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1157 mm | 1182 mm | 1208 mm | 1233 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 751 mm | 745 mm | 749 mm | 765 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
HARDLINE C1 belongs to the Jamis Hardline model. There are 29 bikes that carry this model name. Take a sneak peek at all Jamis Hardline bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Jamis HARDLINE A2 2020 has a starting price of 2999$. Jamis HARDLINE C1 2020 on the other hand is the most expensive at 8499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Jamis HARDLINE C1 price was 8499$. Comparing this to the average Enduro bike price, we see that the price is 136.15% higher.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.06 kg (31 lbs), Jamis bike is slightly lighter than average. In short, the average Enduro bike weight is 1.49% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The HARDLINE C1 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Jamis HARDLINE C1 2020, has a 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The HARDLINE C1 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
