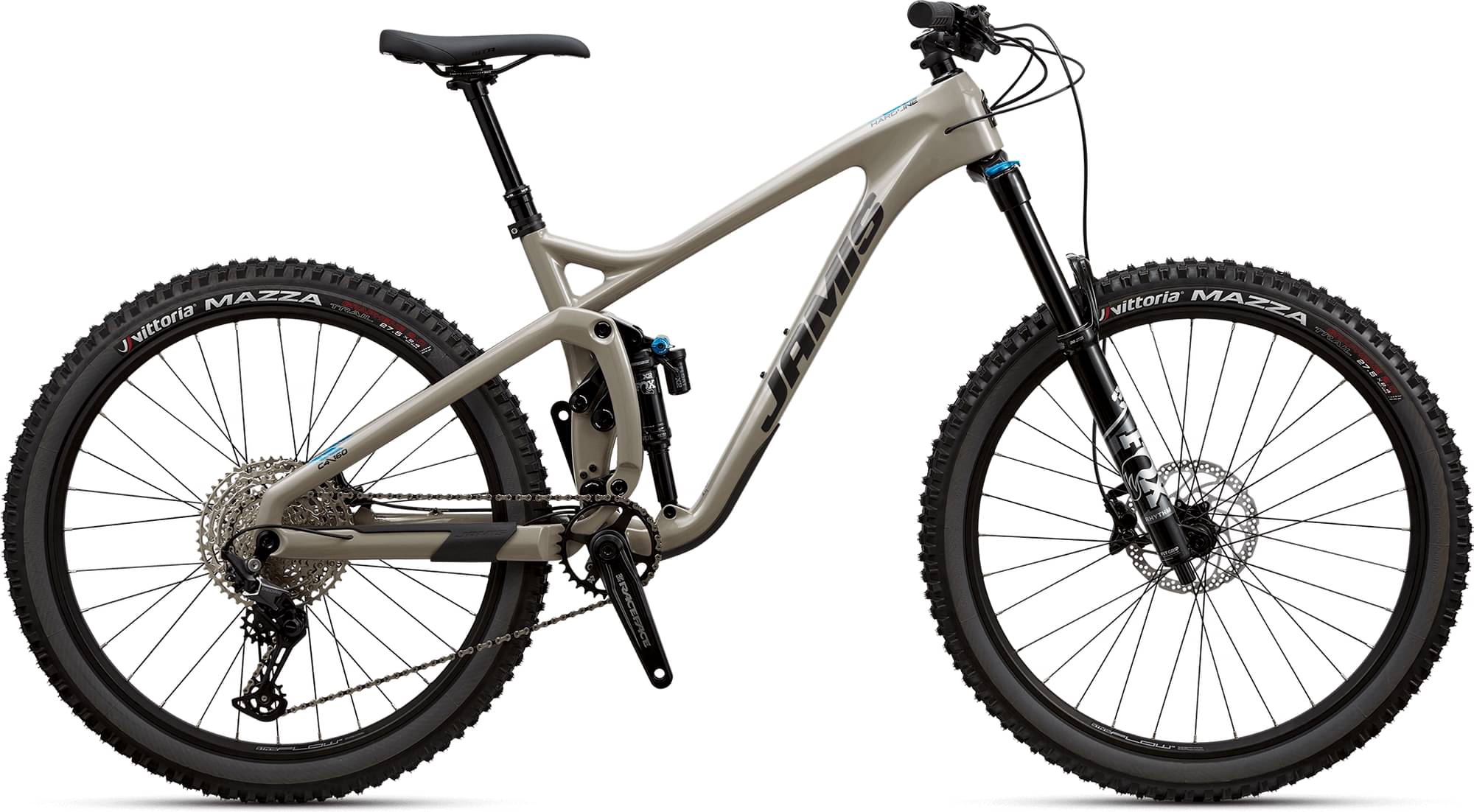

Jamis HARDLINE C4 2023
2023 Mountain
Estimate price |
4,799$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Rhythm Float 36
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dyad Pro High Modulus Carbon Fiber, 160mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 – 1 1/8” tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float X Performance Series EVOL shock w/3-position compression, 10mm hardware, replaceable derailleur hanger
Suspension Fork
Fox 36 Rhythm Series Float 27.5? w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 160mm travel, 44mm rake
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed
Shift Levers
Shimano Deore, 1×12-speed
Cassette
Shimano M6100, 12-speed, 10-51T
Crank
Race Face Ride, 32T
Bottom Bracket
Race Face BSA
Chain
KMC X12, 12-speed
Pedals
N/A
Wheels
Rims
Stan’s No Tubes Flow D 27.5? rims, Shimano MT410 15x110mm front & 12x148mm rear hubs, stainless spokes
Tires
Vittoria Mazza 27.5 x 2.4?, TNT tubeless
Brakes
Brakes
Shimano MT420 4-piston hydraulic disc, 180mm RT30 rotors
Cockpit
Stem
Race Face Ride, 50mm extension, 35mm clamp diameter
Handlebar
Race Face Ride, 760mm x 20mm rise, 35mm diameter
Grips
Jamis Lock-On
Headset
FSA Orbit IS Integrated, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
KS Rage Dropper, Southpaw remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 728 mm | 753 mm | 779 mm | 804 mm |
| Rake | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 122 mm | 123 mm | 123 mm | 123 mm |
| Stack | 579 mm | 589 mm | 598 mm | 607 mm |
| Reach | 412 mm | 433 mm | 455 mm | 476 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1151 mm | 1176 mm | 1202 mm | 1227 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 745 mm | 739 mm | 743 mm | 759 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
HARDLINE C4 is a Jamis Hardline model. 29 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Jamis HARDLINE A2 2023 is the cheapest bike model and costs 3799$. Jamis HARDLINE C1 2023 is the most expensive one and costs 9499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 4799$. If we compare this with the average Enduro bike cost we notice that the price is 33.34% higher.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
HARDLINE C4 weighs 14.29 kg (31.5 lbs) and is slightly heavier than the average. In other words, this model is 0.14% heavier than the average Enduro bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the Fox Rhythm Float 36 fork installed. The fork’s travel is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on HARDLINE C4 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HARDLINE C4 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Jamis HARDLINE C4 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
