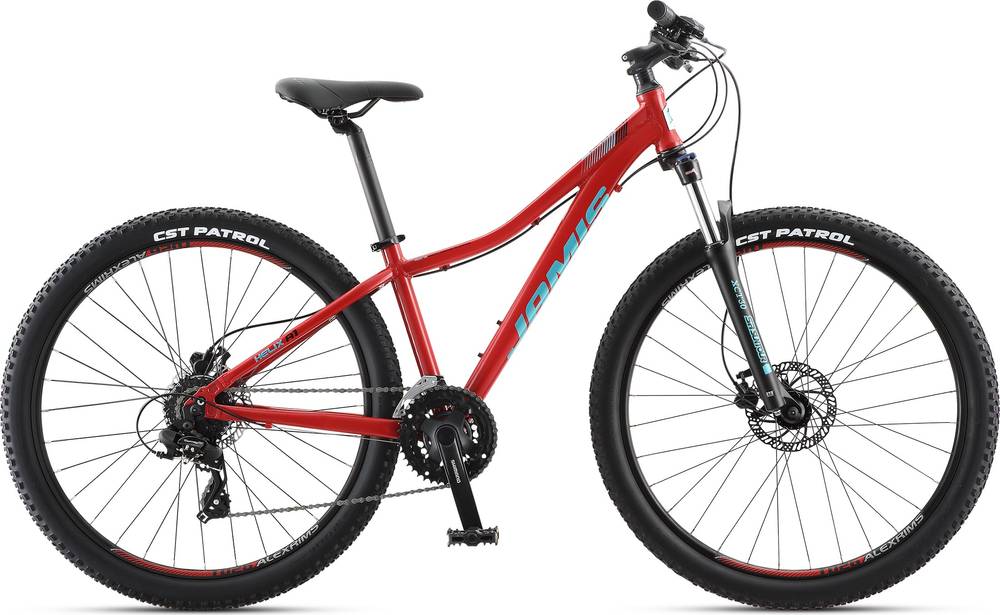

Jamis HELIX A1 2019
2019 Mountain
Estimate price |
599$
Weight | 14.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel
Drivetrain
Rear Derailleur
Shimano TX800
Front Derailleur
TY700
Shift Levers
Shimano M310, 3x8-speed
Cassette
Shimano HG200, 8-speed, 12-32T
Crank
Shimano TY-301, 42/34/24T
Bottom Bracket
Sealed cartridge
Chain
KMC Z7, 8-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alex TD26 27.5” rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes
Tires
CST Patrol, 27.5 x 2.25”
Brakes
Brakes
Tektro M275 hydraulic disc, 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 10? rise x 70mm (15/17”), 90mm (19”/21”)
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 720mm
Grips
Kraton
Headset
Zero-stack internal cup threadless, 15mm cone spacer
Seat
Saddle
Jamis ATB Sport, SL cover, protective front and rear guards
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" |
|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 619 mm | 639 mm |
| Top Tube Length | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1036 mm | 1057 mm | 1077 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm |
| Standover Height | 675 mm | 711 mm | 738 mm |
| Wheels | 27" | 27" | 27" |
Model Overview
HELIX A1 is part of the Jamis Helix model. There are 11 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Jamis HELIX A2 2019 has a starting price of 499$. Jamis HELIX A1 2019 on the other hand is the most expensive at 599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Jamis HELIX A1 price was 599$. If we compare this with the average Crosscountry bike cost we notice that the price is 218.03% smaller.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.17 kg (31.24 lbs), Jamis bike is considerably heavier than average. To sum up, it’s 14.27% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The HELIX A1 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on HELIX A1 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Jamis HELIX A1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
