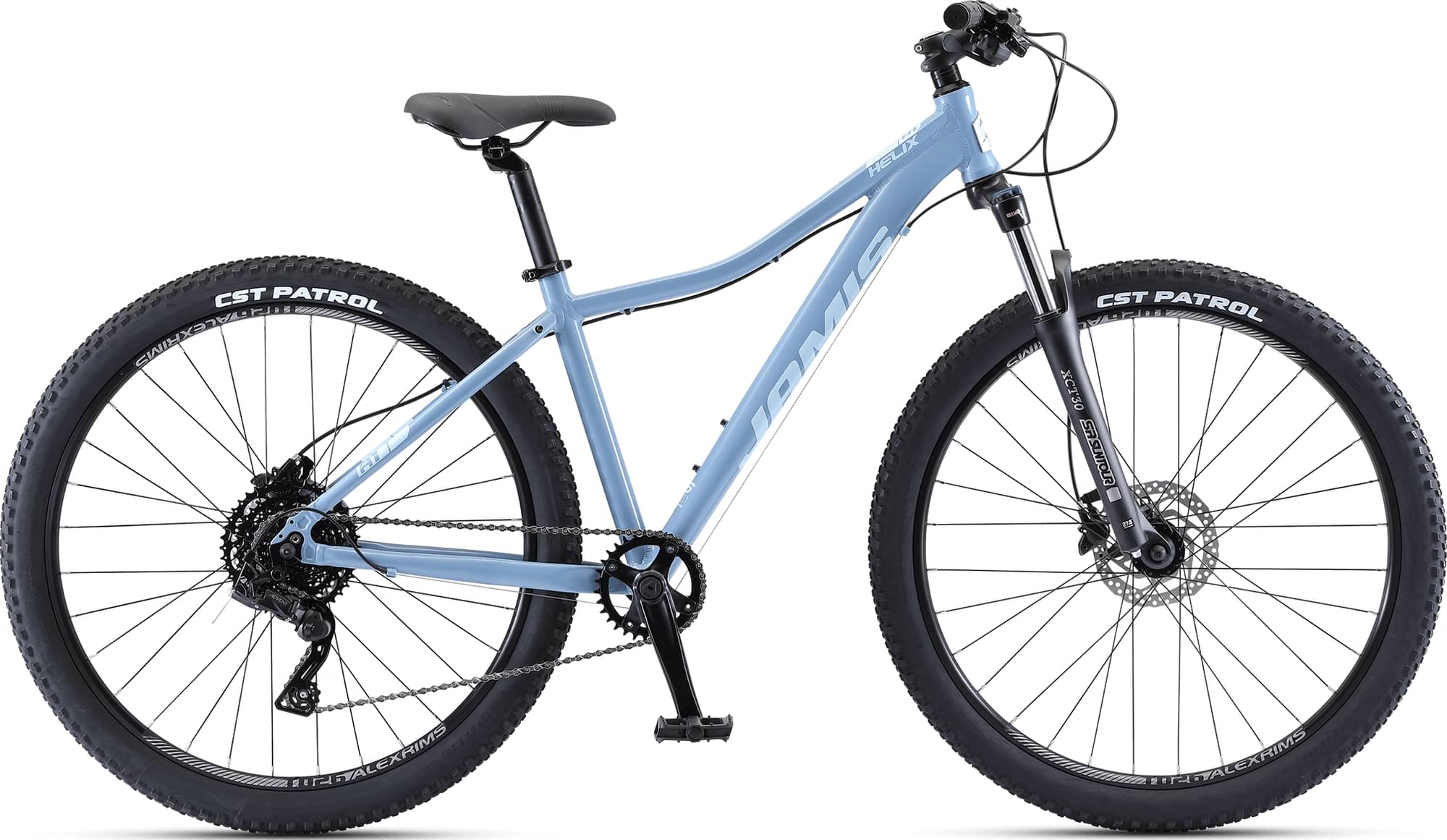

Jamis HELIX A1 2022
2022 Mountain
Estimate price |
829$
Weight | 14.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel
Drivetrain
Rear Derailleur
microSHIFT Advent M6195M 9-speed
Shift Levers
microSHIFT Advent M8195, 1×9-speed
Cassette
microSHIFT H093, 9-speed, 11-42T
Crank
Forged Alloy, 32T
Bottom Bracket
Sealed cartridge
Chain
KMC X9, 9-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alex TD26 27.5” double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes
Tires
CST Patrol, 27.5 x 2.25”
Brakes
Brakes
Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 10 ? rise x 75mm (14”/16”), 90mm (18”)
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 680mm
Grips
Kraton
Headset
Zero-stack internal cup, 8mm cone spacer
Seat
Saddle
Jamis ATB Sport Women’s
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm (14”) 400mm (16”/18”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" |
|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 619 mm | 639 mm |
| Top Tube Length | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1036 mm | 1057 mm | 1077 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm |
| Standover Height | 675 mm | 711 mm | 738 mm |
| Wheels | 27" | 27" | 27" |
Model Overview
HELIX A1 completes the Jamis Helix model. There are 11 bikes that carry this model name. Take a sneak peek at all Jamis Helix bikes models from 2022, by clicking here.
Model range prices
Jamis HELIX A2 2022 is the most affordable bike of this model and has a price of 729$. On the other hand, Jamis HELIX A1 2022, is the most expensive and costs 829$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 829$. Doing a quick comparison, we notice that HELIX A1 price is 129.79% smaller than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Jamis HELIX A1 it’s weighing 14.17 kg (31.24 lbs). At this weight, is considerably heavier than average. In other words, this model is 14.27% heavier than the average Crosscountry bike.
Overview of components
Fork
The Suntour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on HELIX A1 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
