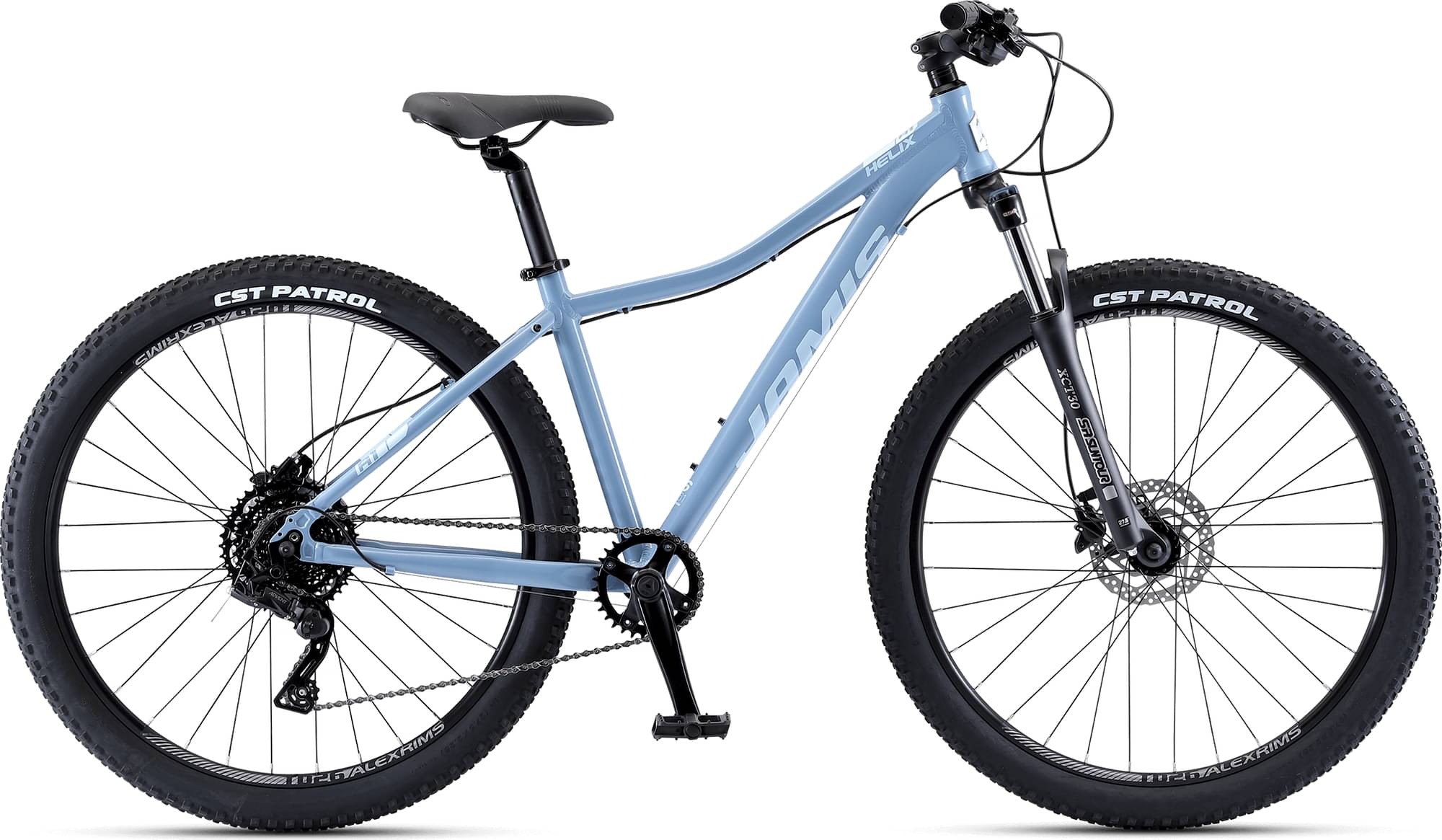

Jamis HELIX A1 2023
2023 Mountain
Estimate price |
829$
Weight | 14.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel
Drivetrain
Rear Derailleur
microSHIFT Advent M6195M 9-speed
Shift Levers
microSHIFT Advent M8195, 1×9-speed
Cassette
microSHIFT H093, 9-speed, 11-42T
Crank
Forged Alloy, 32T
Bottom Bracket
Sealed cartridge
Chain
KMC X9, 9-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alex TD26 27.5” double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes
Tires
CST Patrol, 27.5 x 2.25”
Brakes
Brakes
Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 10 ? rise x 75mm (14”/16”), 90mm (18”)
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 680mm
Grips
Kraton
Headset
Zero-stack internal cup, 8mm cone spacer
Seat
Saddle
Jamis ATB Sport Women’s
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm (14”) 400mm (16”/18”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" |
|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 598 mm | 619 mm | 639 mm |
| Top Tube Length | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1036 mm | 1057 mm | 1077 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm |
| Standover Height | 675 mm | 711 mm | 738 mm |
| Wheels | 27" | 27" | 27" |
About this model
HELIX A1 is a Jamis Helix model. Jamis launched 11 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Jamis HELIX A2 2023 is the cheapest bike model and costs 729$. Jamis HELIX A1 2023 is the most expensive one and costs 829$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 829$. Doing a quick comparison, we notice that HELIX A1 price is 129.79% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
HELIX A1 weighs 14.17 kg (31.24 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 15.11% lower than this one.
Overview of components
Fork
The HELIX A1 comes factory-installed with the Suntour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When it comes to wheels, the HELIX A1 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
