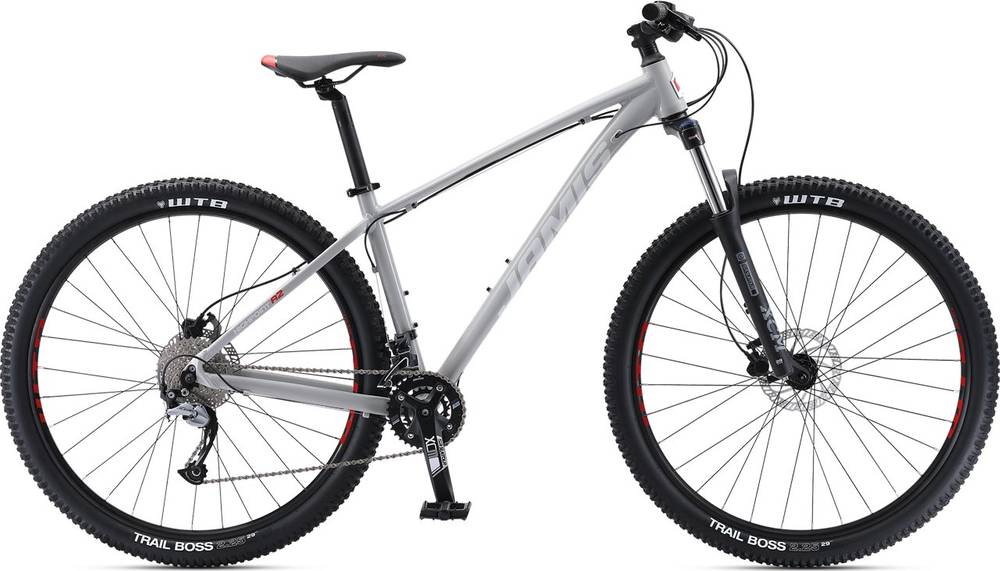

Jamis HIGHPOINT A2 2020
2020 Mountain
Estimate price |
799$
Weight | 14.86 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCM HLO
-
Groupset Acera, Alivio -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061triple-butted aluminum main tubes, 1.5 - 1 1/8” tapered head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCM 32 HLO 29", coil spring, hydraulic speed lock out adjust, external preload adjustor, 32mm stanchions, aluminum lowers, 15x100mm axle, 120mm travel
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Alivio
Shift Levers
Shimano Acera, 2x9-speed
Cassette
Shimano HG201, 9-speed, 11-36T
Crank
SR Suntour XCM, 38/24T
Bottom Bracket
Sealed cartridge
Chain
KMC X9, 9-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
WTB STX i23 TCS tubeless 29" rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes
Tires
WTB Trailboss, 29 x 2.25”
Brakes
Brakes
Tektro M275 hydraulic disc, 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 60mm
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Grips
Kraton
Headset
Zero-stack internal cup threadless, 15mm cone spacer
Seat
Saddle
Selle Royal Vivo
Seatpost
Jamis alloy micro-adjust, 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 693 mm | 719 mm | 745 mm | 770 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 633 mm | 642 mm | 651 mm | 661 mm |
| Reach | 401 mm | 423 mm | 445 mm | 468 mm |
| Top Tube Length | 583 mm | 608 mm | 633 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1124 mm | 1150 mm | 1176 mm | 1202 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 761 mm | 797 mm | 834 mm | 866 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
HIGHPOINT A2 is a Jamis Highpoint model. 10 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Jamis HIGHPOINT A2 2020 has a starting price of 799$. Jamis HIGHPOINT A1 2020 on the other hand is the most expensive at 999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Jamis HIGHPOINT A2 price was 799$. Comparing the average cost of a Trail bike to this one, you will see that HIGHPOINT A2 price is 245.68% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, HIGHPOINT A2 has a weight of 14.86 kg (32.76 lbs). To sum up, it’s 14.48% heavier than the average weight of Trail bikes.
HIGHPOINT A2 components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
HIGHPOINT A2 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on HIGHPOINT A2 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
