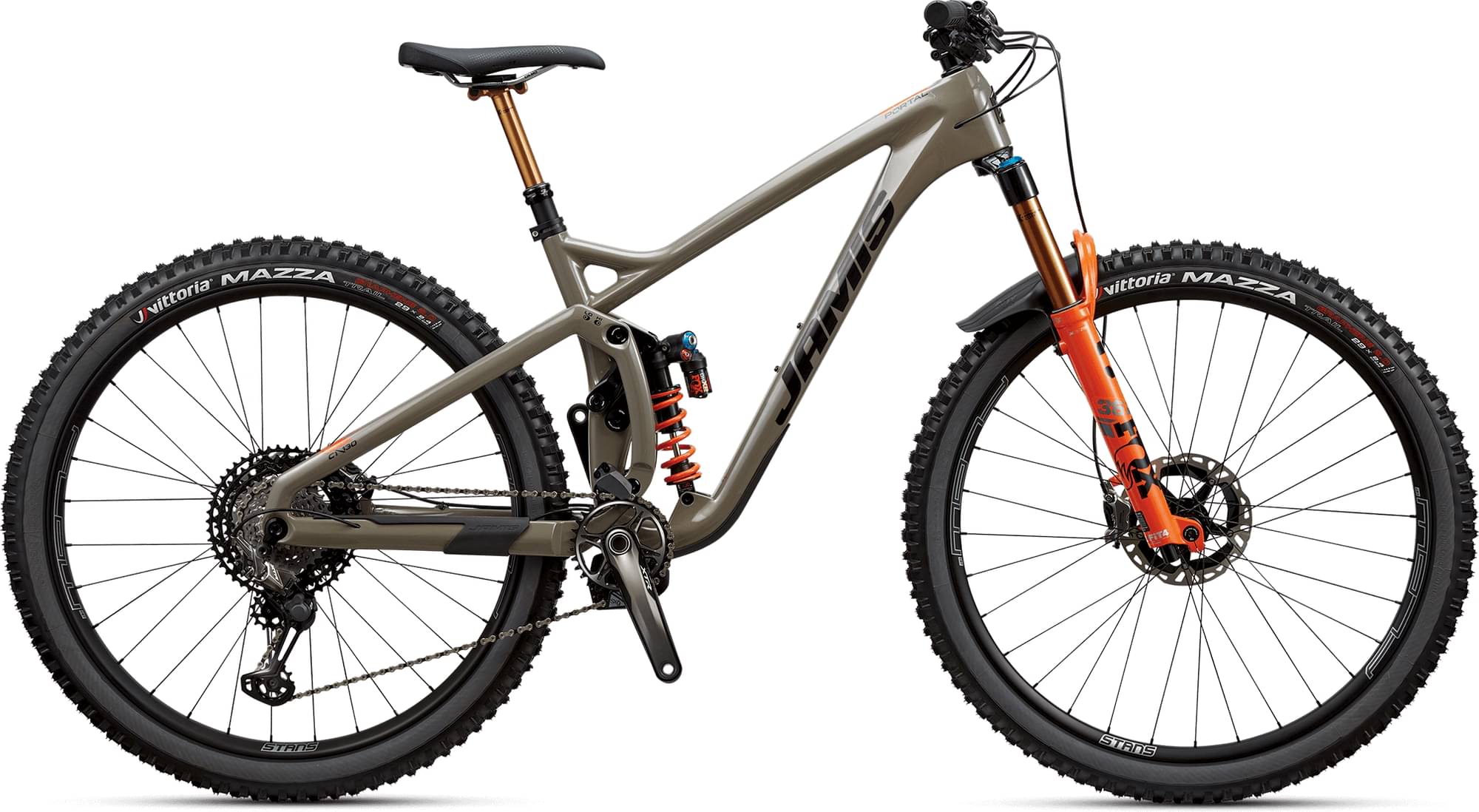

Jamis PORTAL C1 2023
2023 Mountain
Estimate price |
9,499$
Weight | 13.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide, MRP SXg lower chainguide,Fox DHX2 Factory Series coil shock w/2-position compression switch, SLS 450lb Spring, high/low speed compression, high/low speed rebound, 10mm hardware, replaceable derailleur hanger
Suspension Fork
Fox 36 Factory Series Float 29? w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel, 51mm rake
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed
Shift Levers
Shimano XTR, 1×12-speed
Cassette
Shimano M9100, 12-speed, 10-51T
Crank
Shimano XTR M9120, 32T
Bottom Bracket
Shimano BSA
Chain
Shimano M9100, 12-speed
Pedals
N/A
Wheels
Rims
Stans Flow CB7 Carbon 29? tubeless wheels, 15x110mm axle front and 12x148mm rear E-SYNC hubs, Sapim D-Light spokes
Tires
Vittoria Mazza 29 x 2.4?, TNT tubeless
Brakes
Brakes
Shimano XTR M9120 4-piston Ice-Tech hydraulic disc, RT-900 180mm rotors
Cockpit
Stem
Race Face Turbine R, 50mm extension, 35mm clamp diameter
Handlebar
Race Face Turbine R, 800mm x 20mm rise, 35mm diameter
Grips
Jamis Lock-On
Headset
FSA Orbit IS Integrated, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
Fox Transfer Factory Series Dropper, 1x remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.41 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 713 mm | 738 mm | 763 mm | 789 mm |
| Rake | 47 mm | 47 mm | 46 mm | 47 mm |
| Trail | 108 mm | 108 mm | 109 mm | 108 mm |
| Stack | 600 mm | 609 mm | 619 mm | 628 mm |
| Reach | 412 mm | 433 mm | 455 mm | 476 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1142 mm | 1167 mm | 1192 mm | 1218 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 748 mm | 743 mm | 748 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
PORTAL C1 completes the Jamis Portal model. Jamis launched 30 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Jamis PORTAL A2 2023 is the cheapest bike model and costs 3799$. Jamis PORTAL C1 2023 is the most expensive one and costs 9499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Jamis PORTAL C1 price was 9499$. Comparing the average cost of a Trail bike to this one, you will see that PORTAL C1 price is 243.92% more expensive.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, PORTAL C1 has a weight of 13.61 kg (30 lbs). In short, the average Trail bike weight is 4.85% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
PORTAL C1 components
Fork
Jamis PORTAL C1 2023 bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
PORTAL C1 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the PORTAL C1 model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
