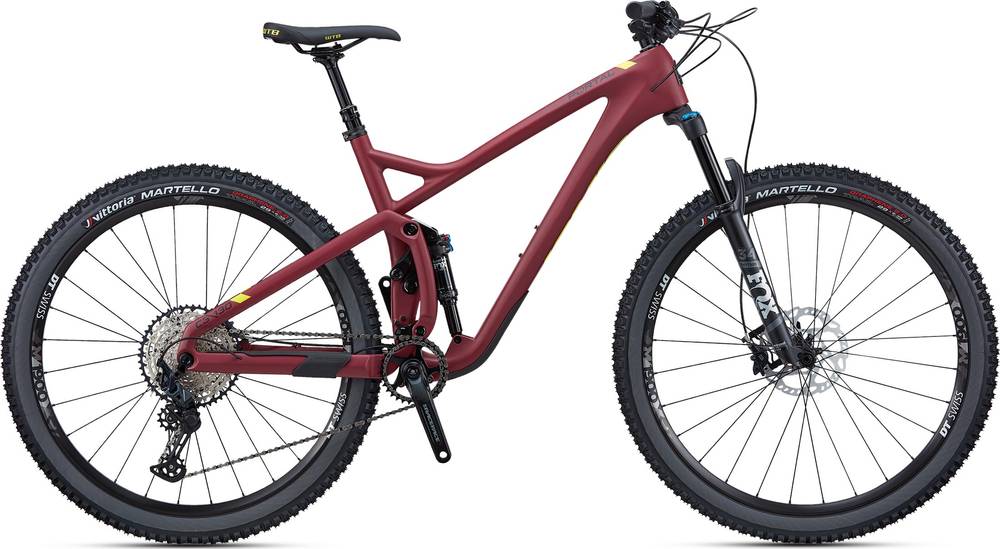

Jamis PORTAL C3 2020
2020 Mountain
Estimate price |
4,699$
Weight | 13.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 - 1 1/8” tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Fox Float DPS Performance Series EVOL shock w/3-position compression, 10mm hardware, replaceable derailleur hanger
Suspension Fork
Fox Rhythm 34 Float 29" w/ sweep adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Shift Levers
Shimano SLX, 1x12-speed
Cassette
Shimano M7100, 12-speed, 10-51T
Crank
Race Face Aeffect, 32T
Bottom Bracket
Race Face BSA
Chain
KMC X12, 12-speed
Pedals
N/A
Wheels
Rims
DT Swiss M1900 SPLINE 25 29" tubeless wheels, DT 370 hubs, DT Champion spokes
Tires
Vittoria Martello 29 x 2.35", TNT tubeless
Brakes
Brakes
Shimano SLX M7100 Ice-Tech hydraulic disc, RT-70 180mm front & 160mm rear centerlock rotors
Cockpit
Stem
Race Face Aeffect R, 50mm extension, 35mm clamp diameter
Handlebar
Race Face Aeffect R, 780mm x 20mm rise, 35mm diameter
Grips
Jamis Lock-On
Headset
FSA Orbit IS Integrated, 8mm cone spacer
Seat
Saddle
WTB Volt
Seatpost
Race Face Aeffect R Dropper, 1x remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.401 mm | 1.356 mm | 1.315 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 712 mm | 737 mm | 762 mm | 788 mm |
| Rake | 49 mm | 50 mm | 49 mm | 50 mm |
| Trail | 102 mm | 101 mm | 102 mm | 101 mm |
| Stack | 606 mm | 615 mm | 625 mm | 634 mm |
| Reach | 418 mm | 439 mm | 461 mm | 482 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1148 mm | 1173 mm | 1198 mm | 1224 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 761 mm | 756 mm | 761 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
PORTAL C3 is part of the Jamis Portal model. Jamis launched 30 bikes of this model so far. Take a sneak peek at all Jamis Portal bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Jamis PORTAL A2 2020 has a starting price of 2999$. Jamis PORTAL C1 2020 on the other hand is the most expensive at 8499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4699$. Doing a quick comparison, we notice that PORTAL C3 price is 70.13% higher than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.49 kg (29.74 lbs), the PORTAL C3 model is slightly heavier than average. To sum up, it’s 3.93% heavier than the average weight of Trail bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
PORTAL C3 components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the PORTAL C3 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The PORTAL C3 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Jamis PORTAL C3 includes a dropper post. Therefore, climbing or descending will be a breeze.
