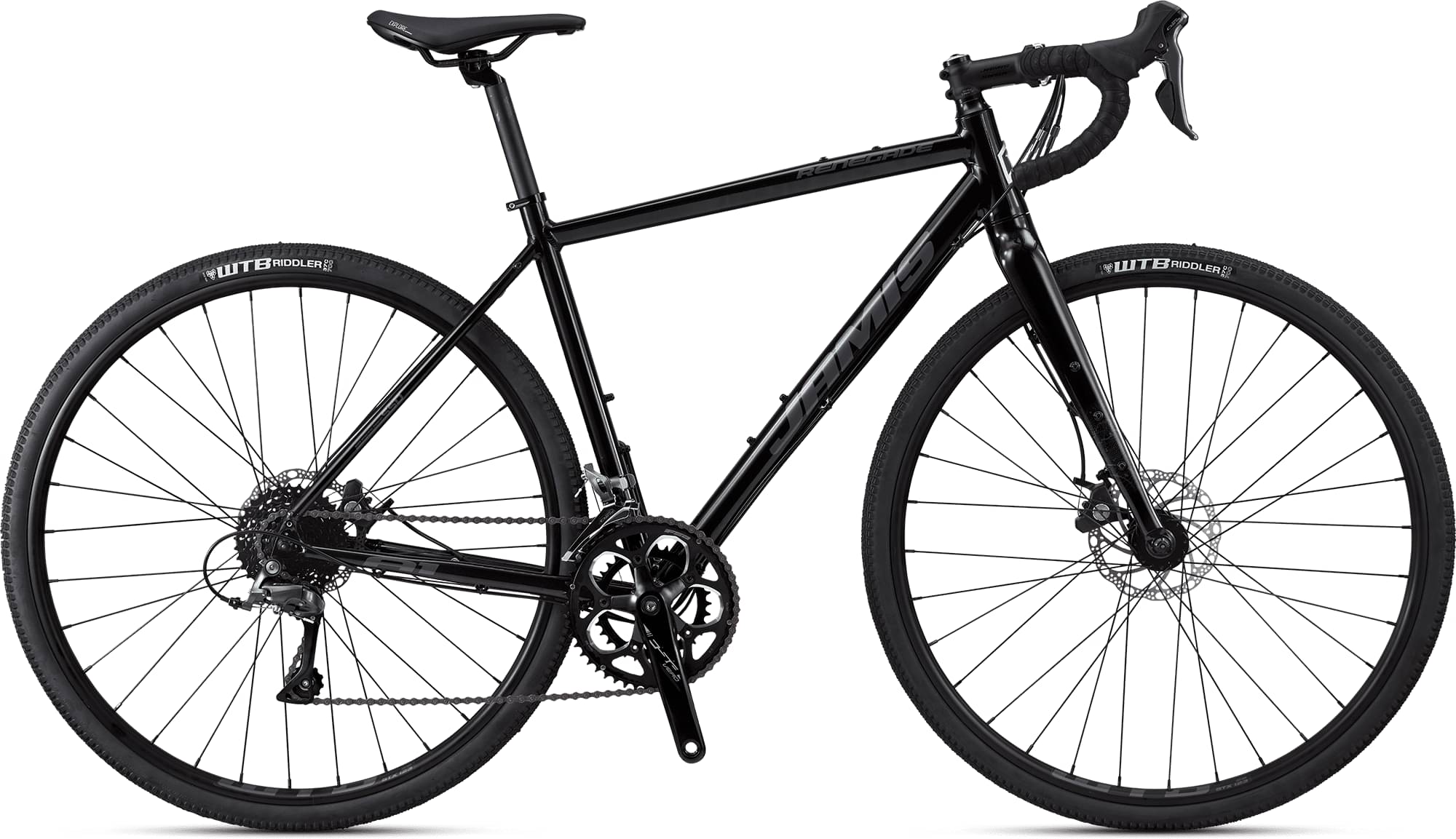

Jamis RENEGADE A1 2022
2022 Road
Estimate price |
1,099$
Weight | 10.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris, FSA -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
UPDATED Jamis Size Specific Design frame geometry, 6061 aluminum double-butted main frame, 1.5 – 1 1/8” tapered head tube, 31.8mm seat tube for 27.2 seat post, Flat Mount disc brake mounts, internal cable routing, replaceable derailleur hanger, 3 waterbottle mounts, TT mounts, rack and fender eyelets.
Suspension Fork
UPDATED Jamis Adventure 6061 aluminum, tapered aluminum steerer, integrated cable cradles with Flat Mount disc brake mounts, exposed fender, lowrider and 3 water bottle eyelets
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000 GS
Front Derailleur
Claris FD-R2000
Shift Levers
Shimano Claris ST-R2000 Dual Control STI, 16-speed
Cassette
Shimano HG41 8-speed, 11-34T
Crank
FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z8
Pedals
N/A
Wheels
Rims
WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs and 14g stainless steel spokes
Tires
WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
Brakes
Brakes
Tektro C310 Flat Mount mechanical cable actuated disc brake with 160mm wave rotors and Shimano Claris ST- R2000 levers
Cockpit
Stem
Jamis Road 3D forged 6061 alloy, 7 ? x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
Handlebar
Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Grips
Jamis suede tape with gel inserts
Headset
FSA Orbit C-40B Internal/External, 1.5 – 1 1/8”
Seat
Saddle
NEW Jamis Sport with SL top
Seatpost
Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.55 mm | 1.58 mm | 1.6 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 277 mm | 277 mm | 278 mm | 278 mm |
| Front Center | 581 mm | 593 mm | 607 mm | 626 mm | 636 mm | 651 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 50 mm | 50 mm |
| Trail | 60 mm | 64 mm | 69 mm | 69 mm | 62 mm | 61 mm |
| Stack | 522 mm | 539 mm | 568 mm | 596 mm | 622 mm | 642 mm |
| Reach | 355 mm | 365 mm | 375 mm | 384 mm | 394 mm | 402 mm |
| Top Tube Length | 517 mm | 532 mm | 551 mm | 569 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 80 mm | 96 mm | 126 mm | 156 mm | 181 mm | 201 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 995 mm | 1007 mm | 1022 mm | 1046 mm | 1056 mm | 1071 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 723 mm | 732 mm | 773 mm | 799 mm | 822 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
RENEGADE A1 belongs to the Jamis Renegade model. Jamis launched 39 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Jamis RENEGADE A1 2022 is the cheapest bike model and costs 1099$. Jamis RENEGADE C1 2022 is the most expensive one and costs 3999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 1099$. Comparing this to the average Gravel bike price, we see that the price is 124.02% lower.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 10.89 kg (24.01 lbs), the RENEGADE A1 model is much heavier than average. To sum up, it’s 33.95% heavier than the average weight of Gravel bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
RENEGADE A1 components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the RENEGADE A1 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The RENEGADE A1 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
