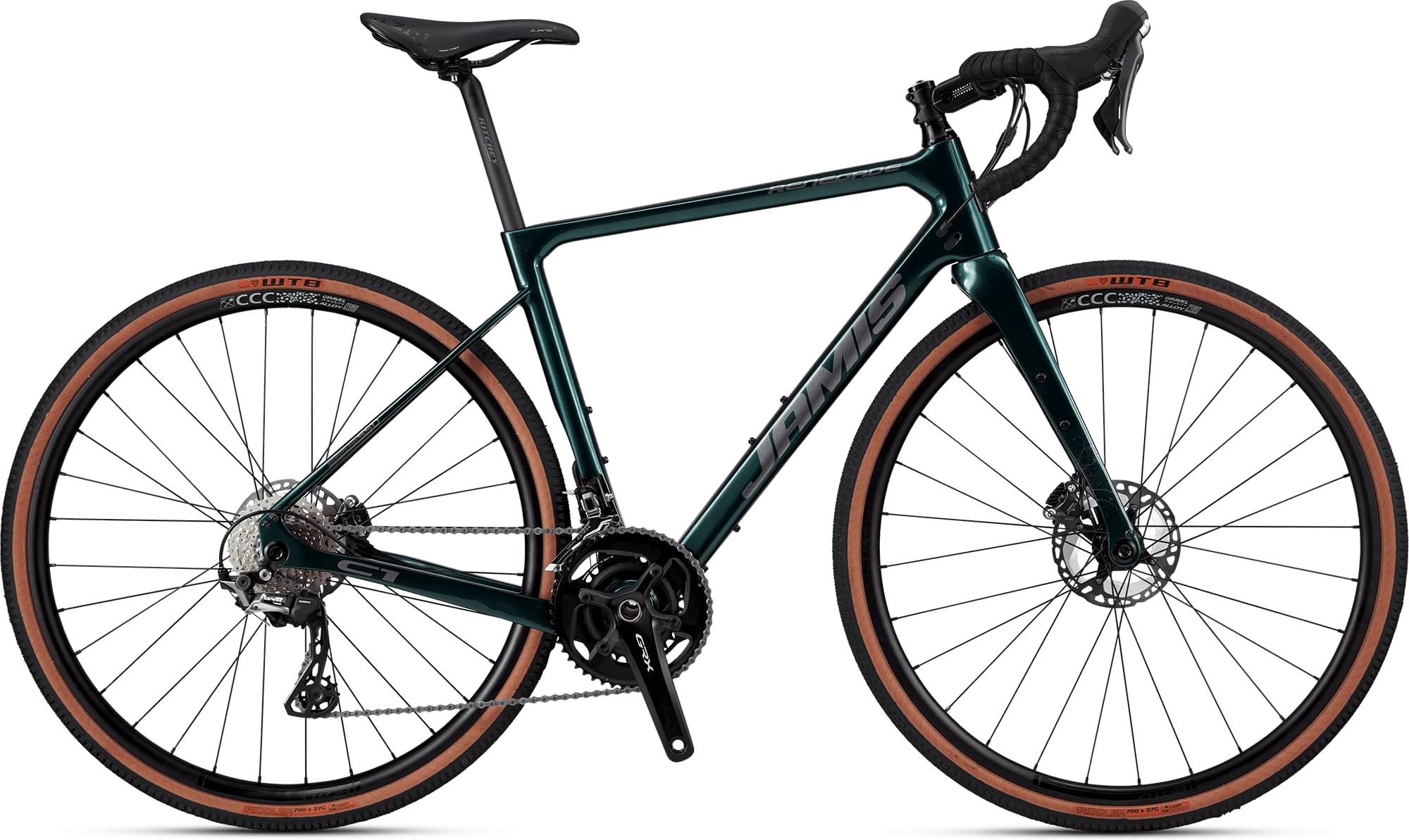

Jamis RENEGADE C1 2023
2023 Road
Estimate price |
3,999$
Weight | 8.62 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Jamis Size Specific Design Omniad M30 monocoque carbon fiber frame, Near Net molding process, 12×142 thru-axle with Jamis MTS (Modular Thru-axle System), SST tubing diameters, integrated seat post clamp, 1.5 – 1 1/8” head tube, EVO386 carbon BB shell, ACE internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, oversized asymmetrical chainstays with flat mount disc brakes and exposed carrier/fender mount eyelets, carbon drop outs, replaceable FD mount and RD hanger, clearance for 37c tires
Suspension Fork
Jamis Adventure ECO monocoque carbon, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
Drivetrain
Rear Derailleur
Shimano GRX RX-R810 Shadow Plus
Front Derailleur
GRX FD-RX810 braze-on
Shift Levers
Shimano GRX ST-RX810 Dual Control STI, 22-speed
Cassette
Shimano 11-speed, 11-34T
Crank
Shimano GRX FC-RX810 48/31T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
Bottom Bracket
Enduro EVO PressFit 30 with Wheels MFG EVO adaptors
Chain
KMC x11 EPT Anti-Rust
Pedals
N/A
Wheels
Rims
Boyd CCC Tubeless 11-speed wheelset, 28/32H, 25mm rim height with 25mm ID width, Boyd Quest Centerlock hubs with sealed bearings, Pillar Aero spokes, front 12mm/rear 12×142 thru-axle with Switch Lever
Tires
WTB Riddler Tubeless, 700 x 37c, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
Brakes
Brakes
Shimano GRX BR-RX810 hydraulic disc brakes with resin pads and Fin, Centerlock Ice Tech Freeza RT800 160mm rotors with GRX ST-RX810 Dual Control STI levers
Cockpit
Stem
Redshift suspension stem with elastomers, 6 ? x 80mm (48/51/54/56), 100mm (58/61)
Handlebar
Ritchey Ergomax Comp, 6061 aluminum, 73 reach, 128 ergonomic drop with 12ç flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61)
Grips
Velo EVA gel with gel inserts
Headset
Ritchey Pro Drop-In, sealed bearing with nylon upper compression ring, 1.5 – 1 1/8”
Seat
Saddle
Fizik Aliante Delta with intergrated clip system and manganese rails
Seatpost
Ritchey Comp Carbon, 27.2 x 350mm, 25mm offset with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.5 mm | 1.54 mm | 1.57 mm | 1.59 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 277 mm | 277 mm | 278 mm | 278 mm |
| Front Center | 581 mm | 589 mm | 603 mm | 622 mm | 631 mm | 641 mm |
| Rake | 57 mm | 53 mm | 53 mm | 53 mm | 50 mm | 50 mm |
| Trail | 63 mm | 64 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 510 mm | 530 mm | 560 mm | 590 mm | 615 mm | 635 mm |
| Reach | 355 mm | 364 mm | 373 mm | 382 mm | 391 mm | 400 mm |
| Top Tube Length | 512 mm | 527 mm | 546 mm | 564 mm | 581 mm | 596 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 96 mm | 114 mm | 146 mm | 177 mm | 202 mm | 221 mm |
| Chainstay Length | 422 mm | 422 mm | 425 mm | 425 mm | 425 mm | 430 mm |
| Wheelbase | 992 mm | 1000 mm | 1018 mm | 1037 mm | 1046 mm | 1061 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 724 mm | 747 mm | 780 mm | 803 mm | 825 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
RENEGADE C1 completes the Jamis Renegade model. 39 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Jamis RENEGADE A1 2023 is the cheapest bike model and costs 1099$. Jamis RENEGADE C1 2023 is the most expensive one and costs 3999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 3999$. If we compare this with the average Gravel bike cost we notice that the price is 62.43% more expensive.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, RENEGADE C1 has a weight of 8.62 kg (19 lbs). In conclusion, the average Gravel bike weighs 6.03% less than RENEGADE C1.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
RENEGADE C1 components
Fork material
RENEGADE C1 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the RENEGADE C1 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Jamis RENEGADE C1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
