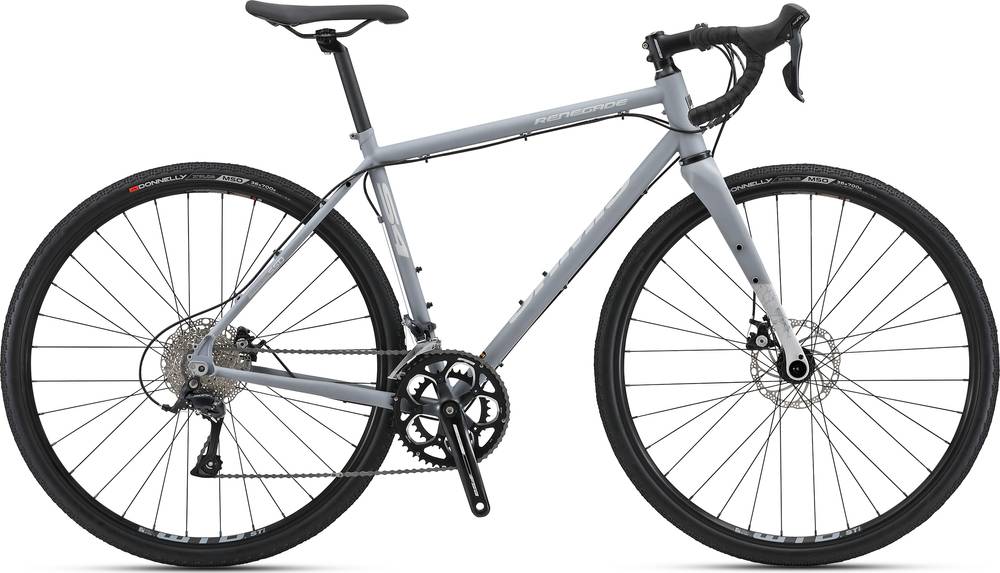

Jamis RENEGADE S4 2020
2020 Road
Estimate price |
1,299$
Weight | 10.43 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
UPDATED Jamis Size Specific Design frame geometry, Reynolds 520 double-butted chromoly main tubes, 44mm head tube for tapered fork, threaded BB shell, 12mm Thru-axle, flat mount chain stay disc brake mounts, top tube mounted full cable housing, 3 waterbottle mounts, rack and fender eyelets.
Suspension Fork
Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000 GS
Front Derailleur
Sora FD-R3000
Shift Levers
Shimano Sora ST-R3000 Dual Control STI, 18-speed
Cassette
Shimano HG400 9-speed, 11-34T
Crank
FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
Bottom Bracket
FSA sealed cartridge, 68 x 110.5mm
Chain
KMC Z9
Pedals
N/A
Wheels
Rims
WTB STX i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12x142 thru-axle with Switch Lever
Tires
Donnelly X Plor MSO, 650 x 36c (44-48) 700 x 36c (51-61), 30TPI with protection belt
Brakes
Brakes
Tektro Lyra mechanical cable actuated disc flat mount brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
Cockpit
Stem
Ritchey 4-Axis 3D forged 6061 alloy, 6? x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
Handlebar
Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Headset
FSA Orbit ITA B Internal/External, 1.5 - 1 1/8”
Seat
Saddle
Jamis Sport with SL top
Seatpost
Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.47 mm | 1.51 mm | 1.55 mm | 1.58 mm | 1.6 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 275 mm | 277 mm | 277 mm | 278 mm | 278 mm |
| Front Center | 562 mm | 577 mm | 592 mm | 606 mm | 625 mm | 635 mm | 639 mm |
| Rake | 50 mm | 50 mm | 53 mm | 53 mm | 53 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 64 mm | 61 mm | 61 mm | 61 mm | 63 mm |
| Stack | 511 mm | 531 mm | 551 mm | 581 mm | 611 mm | 636 mm | 656 mm |
| Reach | 357 mm | 366 mm | 375 mm | 384 mm | 393 mm | 402 mm | 411 mm |
| Top Tube Length | 508 mm | 527 mm | 542 mm | 560 mm | 578 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 121 mm | 142 mm | 124 mm | 155 mm | 187 mm | 211 mm | 230 mm |
| Chainstay Length | 430 mm | 430 mm | 433 mm | 436 mm | 436 mm | 436 mm | 441 mm |
| Wheelbase | 986 mm | 1001 mm | 1014 mm | 1032 mm | 1051 mm | 1061 mm | 1070 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 73 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 721 mm | 738 mm | 765 mm | 796 mm | 817 mm | 841 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
RENEGADE S4 is a Jamis Renegade model. Jamis launched 39 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Jamis RENEGADE A1 2020 is the most affordable bike of this model and has a price of 899$. On the other hand, Jamis RENEGADE C1 2020, is the most expensive and costs 3699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. If we compare this with the average Gravel bike cost we notice that the price is 89.53% lower.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Jamis RENEGADE S4 it’s weighing 10.43 kg (22.99 lbs). At this weight, is much heavier than average. To sum up, it’s 28.29% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on RENEGADE S4 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Jamis RENEGADE S4 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
