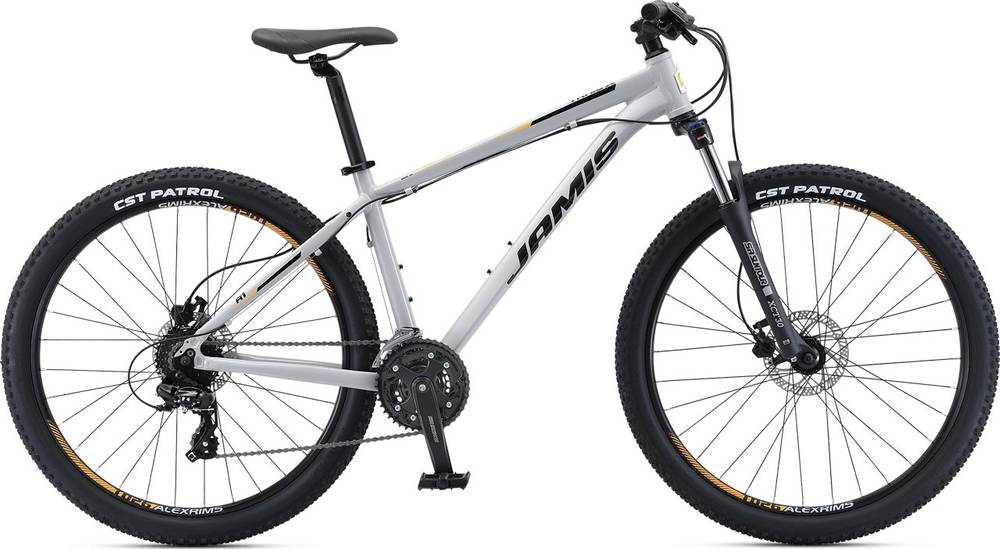

Jamis TRAIL X A1 2020
2020 Mountain
Estimate price |
599$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCT 30 HLO 27.5”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 30mm stanchions, aluminum lowers, 100mm travel
Drivetrain
Rear Derailleur
Shimano TX800
Front Derailleur
TY700
Shift Levers
Shimano M310, 3x8-speed
Cassette
Shimano HG200, 8-speed, 12-32T
Crank
Shimano TY-301, 42/34/24T
Bottom Bracket
Sealed cartridge
Chain
KMC Z7, 8-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alex TD26 27.5” rims, 32H, alloy 6-bolt disc hubs, 14G nickel-plated spokes
Tires
CST Patrol, 27.5 x 2.25”
Brakes
Brakes
Tektro M275 hydraulic disc, 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 3? rise x 60mm
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Grips
Kraton
Headset
Zero-stack internal cup threadless, 15mm cone spacer
Seat
Saddle
Jamis ATB Sport, SL cover, protective front and rear guards
Seatpost
Jamis alloy micro-adjust, 31.6 x 350mm (15”) 400mm (17”-21”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" | 19" | 21" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 593 mm | 617 mm | 644 mm | 664 mm | 685 mm |
| Top Tube Length | 533 mm | 557 mm | 583 mm | 603 mm | 623 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 130 mm | 140 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1022 mm | 1046 mm | 1073 mm | 1093 mm | 1114 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Standover Height | 691 mm | 728 mm | 764 mm | 796 mm | 829 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
TRAIL X A1 belongs to the Jamis Trail model. Jamis released 19 bikes variations of this model so far. Take a sneak peek at all Jamis Trail bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Jamis Trail XR STEP-OVER 2020 has a starting price of 369$. Jamis TRAIL X A1 2020 on the other hand is the most expensive at 599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Jamis TRAIL X A1 price was 599$. Comparing the average cost of a Crosscountry bike to this one, you will see that TRAIL X A1 price is 218.03% smaller.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 14.29 kg (31.5 lbs), Jamis bike is much heavier than average. In conclusion, the average Crosscountry bike weighs 15.24% less than TRAIL X A1.
Overview of components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on TRAIL X A1 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The TRAIL X A1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
