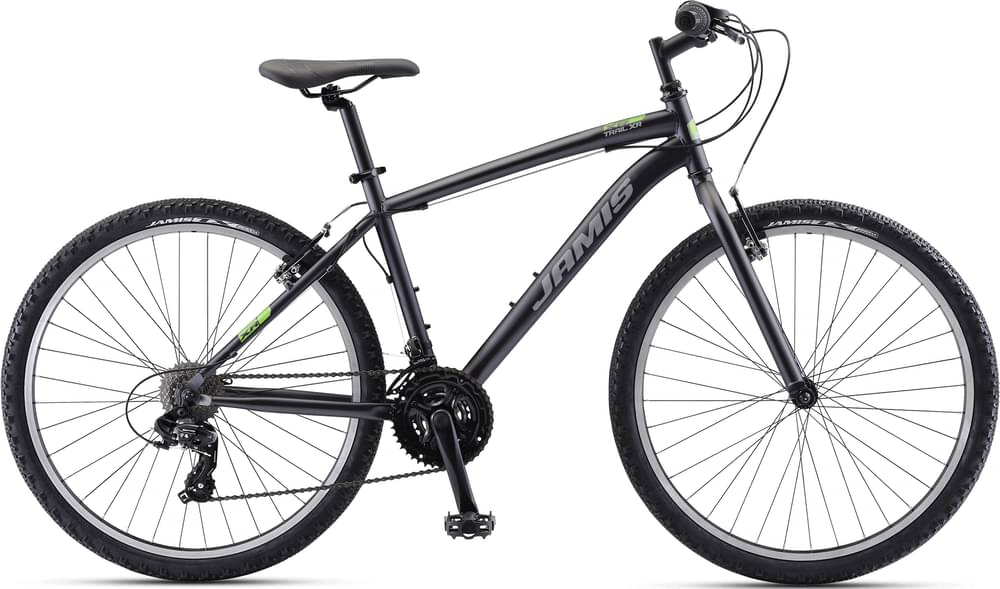

Jamis TRAIL XR 2021
2021 Urban
Estimate price |
449$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-tensile steel tubes
Suspension Fork
Unicrown, hi-tensile steel, with over-sized radiused blades
Drivetrain
Rear Derailleur
Shimano TY300
Front Derailleur
Shimano TZ30
Shift Levers
Shimano Revoshift 35, 3×7-speed
Cassette
7-speed freewheel, 13-28T
Crank
Forged alloy crank, 42/34/24T, 170mm
Bottom Bracket
Bolt type axle
Chain
KMC Z51, 7-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alloy 26 x 1.50” 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes
Tires
CST MTB, 26 x 1.95”
Brakes
Brakes
Alloy linear pull type with full alloy 4-finger levers
Cockpit
Stem
Jamis Hi-Rise, Quill type – 60mm (12-14”), 80mm (15-18”), 100mm (19-21”)
Handlebar
Jamis XC riser, 25.4 x 20mm rise x 620mm
Grips
Kraton for Grip Shift
Headset
Threaded
Seat
Saddle
Jamis ATB Sport, SL cover, protective front and rear guards
Seatpost
Jamis alloy micro-adjust, 28.6 x 350mm (12-15”) 400mm (17-21”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | 13" | 15" | 17" | SM | 19" | 21" |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 528 mm | 534 mm | 538 mm | 551 mm | 563 mm | 566 mm | 579 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73 ° | 74 ° | 74 ° | 73.5 ° | 72.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 305 mm | 356 mm | 330 mm | 381 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 105 mm | 125 mm | 105 mm | 120 mm | 125 mm | 140 mm | 130 mm | 165 mm |
| Chainstay Length | 437 mm | 437 mm | 432 mm | 432 mm | 432 mm | 437 mm | 432 mm | 432 mm |
| Wheelbase | 1020 mm | 1022 mm | 1030 mm | 1044 mm | 1046 mm | 1044 mm | 1063 mm | 1075 mm |
| Standover Height | 636 mm | 649 mm | 694 mm | 725 mm | 751 mm | 672 mm | 782 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview
TRAIL XR is part of the Jamis Trail model. Jamis launched 19 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Jamis Trail XR STEP-OVER 2021 is the most economical model, with a starting price of 399$. Jamis TRAIL X A1 2021 on the other hand costs 779$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Jamis TRAIL XR price was 449$. Comparing the average cost of a Hybrid bike to this one, you will see that TRAIL XR price is 25.17% smaller.
Hybrid bikes average weight
If we make a quick analysis of the average weight of a Hybrid bike, we get 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
TRAIL XR weighs 14.4 kg (31.75 lbs) and is slightly heavier than the average. In conclusion, the average Hybrid bike weighs 3.97% less than TRAIL XR.
TRAIL XR components
Fork material
When it comes to the fork, this bike has a steel one, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
The TRAIL XR 2021 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TRAIL XR comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
