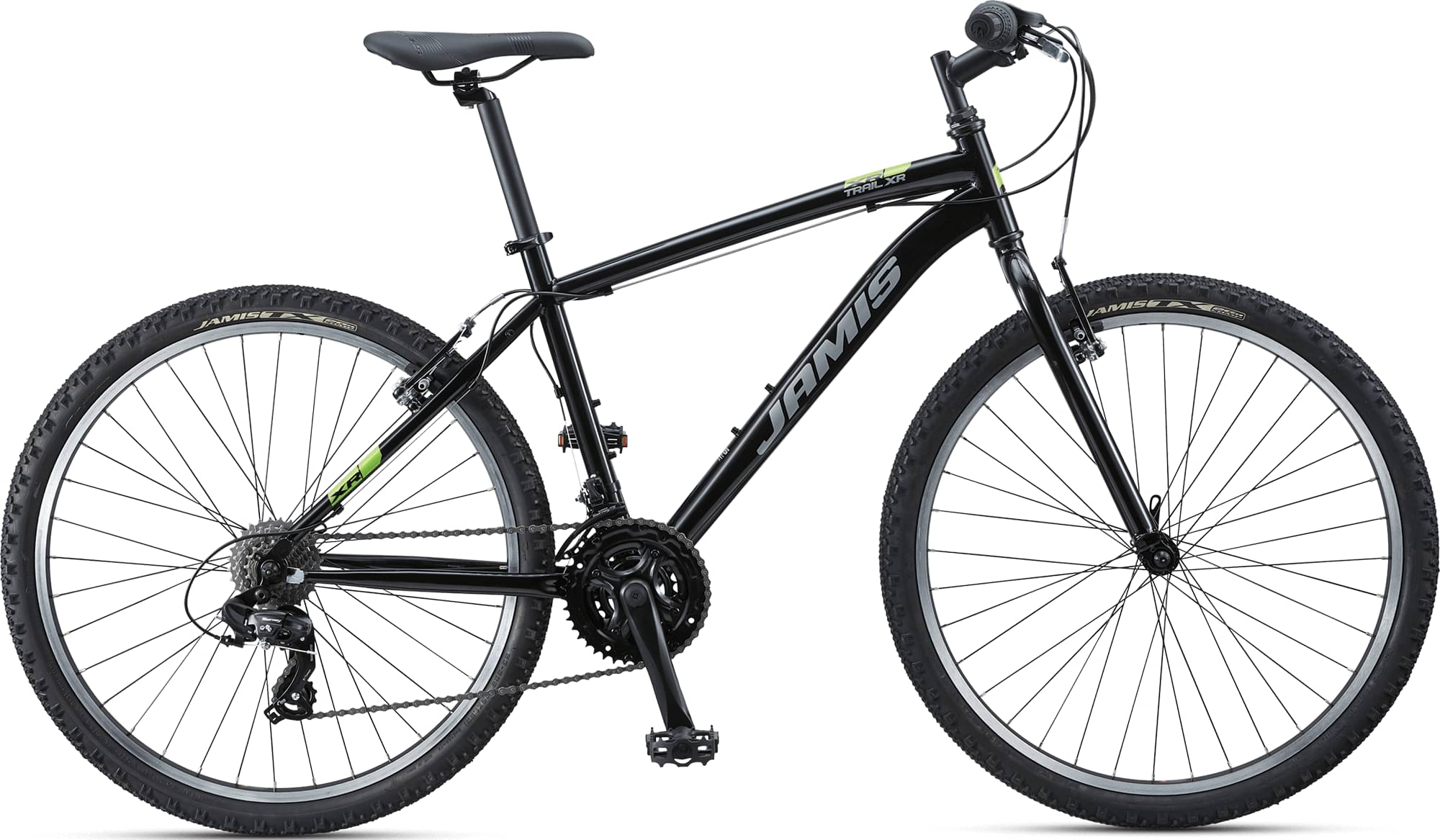

Jamis TRAIL XR 2022
2022 Urban
Estimate price |
499$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-tensile steel tubes
Suspension Fork
Unicrown, hi-tensile steel, with over-sized radiused blades
Drivetrain
Rear Derailleur
Shimano TY300
Front Derailleur
Shimano TZ30
Shift Levers
Shimano Revoshift 35, 3×7-speed
Cassette
7-speed freewheel, 13-28T
Crank
Forged alloy crank, 42/34/24T, 170mm
Bottom Bracket
Bolt type axle
Chain
KMC Z51, 7-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alloy 26 x 1.50” 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes
Tires
CST MTB, 26 x 1.95”
Brakes
Brakes
Alloy linear pull type with full alloy 4-finger levers
Cockpit
Stem
Jamis Hi-Rise, Quill type – 60mm (12-14”), 80mm (15-18”), 100mm (19-21”)
Handlebar
Jamis XC riser, 25.4 x 20mm rise x 620mm
Grips
Kraton for Grip Shift
Headset
Threaded
Seat
Saddle
Jamis ATB Sport, SL cover, protective front and rear guards
Seatpost
Jamis alloy micro-adjust, 28.6 x 350mm (12-15”) 400mm (17-21”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | 13" | 15" | 17" | SM | 19" | 21" |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 528 mm | 534 mm | 538 mm | 551 mm | 563 mm | 566 mm | 579 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73 ° | 74 ° | 74 ° | 73.5 ° | 72.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 305 mm | 356 mm | 330 mm | 381 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 105 mm | 125 mm | 105 mm | 120 mm | 125 mm | 140 mm | 130 mm | 165 mm |
| Chainstay Length | 437 mm | 437 mm | 432 mm | 432 mm | 432 mm | 437 mm | 432 mm | 432 mm |
| Wheelbase | 1020 mm | 1022 mm | 1030 mm | 1044 mm | 1046 mm | 1044 mm | 1063 mm | 1075 mm |
| Standover Height | 636 mm | 649 mm | 694 mm | 725 mm | 751 mm | 672 mm | 782 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
About this model
TRAIL XR is part of the Jamis Trail model. Jamis released 19 bikes variations of this model so far. Take a sneak peek at all Jamis Trail bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Jamis TRAIL XR 2022 has a starting price of 499$. Jamis TRAIL X A1 2022 on the other hand is the most expensive at 829$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our calculations, the average cost of a Hybrid bike that is reliable is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 499$. Comparing the average cost of a Hybrid bike to this one, you will see that TRAIL XR price is 12.63% lower.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Jamis TRAIL XR it’s weighing 14.4 kg (31.75 lbs). At this weight, is slightly heavier than average. In other words, this model is 3.97% heavier than the average Hybrid bike.
Overview of components
Fork material
When it comes to the fork, this bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The TRAIL XR 2022 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
