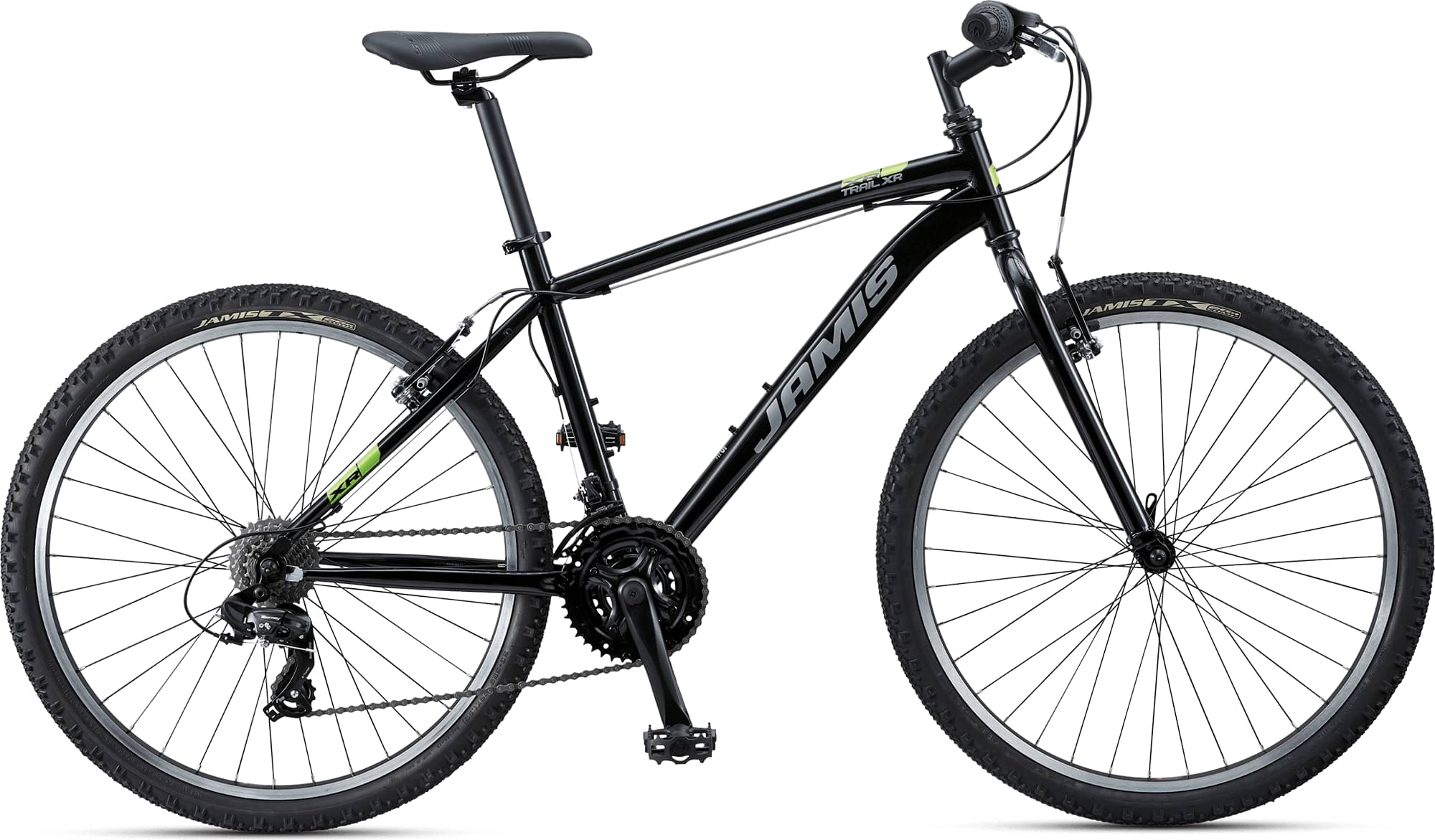

Jamis TRAIL XR 2023
2023 Urban
Estimate price |
499$
Weight | 14.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 26" -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-tensile steel tubes
Suspension Fork
Unicrown, hi-tensile steel, with over-sized radiused blades
Drivetrain
Rear Derailleur
Shimano TY300
Front Derailleur
Shimano TZ30
Shift Levers
Shimano Revoshift 35, 3×7-speed
Cassette
7-speed freewheel, 13-28T
Crank
Forged alloy crank, 42/34/24T, 170mm
Bottom Bracket
Bolt type axle
Chain
KMC Z51, 7-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
Alloy 26 x 1.50” 36H rims, heavy-duty ATB hubs with QR, 14G nickel-plated spokes
Tires
CST MTB, 26 x 1.95”
Brakes
Brakes
Alloy linear pull type with full alloy 4-finger levers
Cockpit
Stem
Jamis Hi-Rise, Quill type – 60mm (12-14”), 80mm (15-18”), 100mm (19-21”)
Handlebar
Jamis XC riser, 25.4 x 20mm rise x 620mm
Grips
Kraton for Grip Shift
Headset
Threaded
Seat
Saddle
Jamis ATB Sport, SL cover, protective front and rear guards
Seatpost
Jamis alloy micro-adjust, 28.6 x 350mm (12-15”) 400mm (17-21”)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | 13" | 15" | 17" | SM | 19" | 21" |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 528 mm | 534 mm | 538 mm | 551 mm | 563 mm | 566 mm | 579 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73 ° | 74 ° | 74 ° | 73.5 ° | 72.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 305 mm | 356 mm | 330 mm | 381 mm | 432 mm | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70.5 ° | 70.5 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 105 mm | 125 mm | 105 mm | 120 mm | 125 mm | 140 mm | 130 mm | 165 mm |
| Chainstay Length | 437 mm | 437 mm | 432 mm | 432 mm | 432 mm | 437 mm | 432 mm | 432 mm |
| Wheelbase | 1020 mm | 1022 mm | 1030 mm | 1044 mm | 1046 mm | 1044 mm | 1063 mm | 1075 mm |
| Standover Height | 636 mm | 649 mm | 694 mm | 725 mm | 751 mm | 672 mm | 782 mm | 823 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" | 26" | 26" |
About this model
TRAIL XR is a Jamis Trail model. Jamis released 19 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Jamis TRAIL XR 2023 is the cheapest bike model and costs 499$. Jamis TRAIL X A1 2023 is the most expensive one and costs 829$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 499$. If we compare this with the average Hybrid bike cost we notice that the price is 12.63% lower.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.4 kg (31.75 lbs), Jamis bike is slightly heavier than average. In conclusion, the average Hybrid bike weighs 3.97% less than TRAIL XR.
TRAIL XR components
Fork material
The fork on this bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
As for the wheels, Jamis TRAIL XR 2023, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Jamis TRAIL XR has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
